NSP151L-EEXGKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

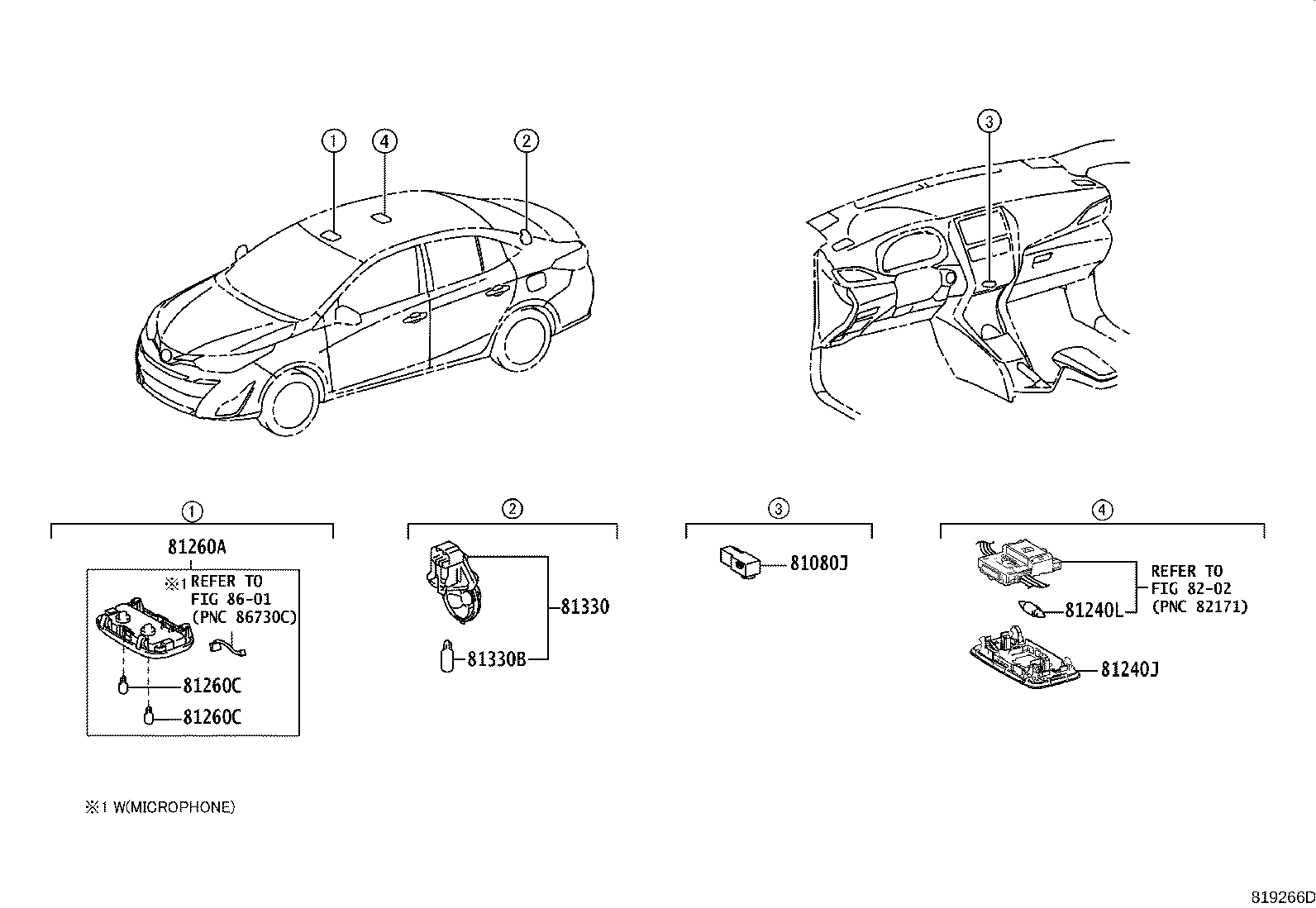

Click highlighted areas on diagram

diagram 81080J 81240J 81240L 81260A 81260C 81260C 81330 81330B 8202 8601
Part # Description Qty Price
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-48020

NSP151

 1
81240J - LAMP ASSY, ROOM
81240-42020A1

NSP151

IVORY,TRIM0#

 1
81240-42020B1

NSP151

GRAY,TRIM2#

 1
81240L - BULB, ROOM LAMP
90981-14011

NSP151

12V 8W

 1
81260A - LAMP ASSY, MAP
81260-0D130B0

NSP151..R

GRAY,TRIM2#

 1
81260-0D130A0

NSP151..R

IVORY,TRIM0#

 1
81260-0D130A0

NSP151..G

IVORY,TRIM0#

 1
81260-0D250A0

NSP151..G

IVORY,TRIM0#

 1
81260-0D250B0

NSP151..G

GRAY,TRIM2#

 1
81260-0D130B0

NSP151..G

GRAY,TRIM2#

 1
81260C - BULB(FOR MAP LAMP)
90981-11067

NSP151

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
90981-11067

NSP151

12V 5W

 2
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-02030

NSP151

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

NSP151

12V 3.8W

 1
Linked diagrams
8202
8601
