NSP151L-EEMRKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )5F

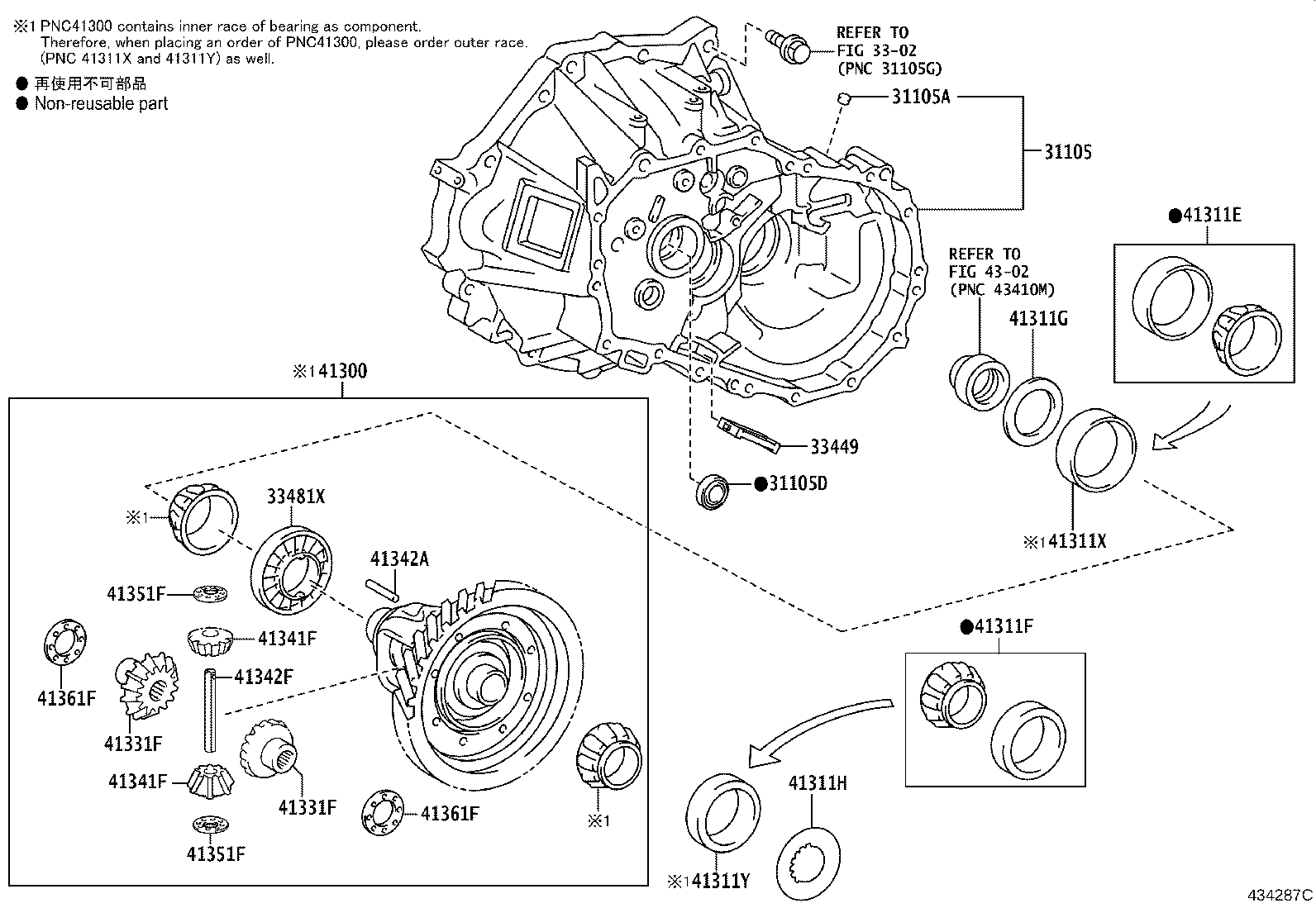

Click highlighted areas on diagram

C50,C54

diagram 31105 31105A 31105D 3302 33449 33481X 41300 41311E 41311F 41311G 41311H 41311X 41311Y 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-0D080

NSP151..5F

 1
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

NSP151..5F

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-T0078

NSP151..5F

 1
33449 - MAGNET, TRANSMISSION
33449-12020

NSP151..5F

 1
33481X - GEAR, SPEEDOMETER DRIVE
33481-12040

NSP151..5F

 1
41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41300-0D120

NSP151..5F

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-T0087

NSP151..5F

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-T0086

NSP151..5F

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90560-41003

NSP151..5F

T=2.1

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90564-41017

NSP151..5F

T=2.25,MARK DD

 1
90564-41018

NSP151..5F

T=2.30,MARK EE

 1
90564-41024

NSP151..5F

T=2.60,MARK LL

 1
90564-41023

NSP151..5F

T=2.55,MARK KK

 1
90564-41019

NSP151..5F

T=2.35,MARK FF

 1
90564-41016

NSP151..5F

T=2.20,MARK CC

 1
90564-41020

NSP151..5F

T=2.40,MARK GG

 1
90564-41015

NSP151..5F

T=2.15,MARK BB

 1
90564-41025

NSP151..5F

T=2.65,MARK MM

 1
90564-41022

NSP151..5F

T=2.50,MARK JJ

 1
90564-41021

NSP151..5F

T=2.45,MARK HH

 1
90564-41027

NSP151..5F

T=2.75,MARK PP

 1
90564-41014

NSP151..5F

T=2.10,MARK AA

 1
90564-41026

NSP151..5F

T=2.70,MARK NN

 1
90564-41029

NSP151..5F

T=2.85,MARK RR

 1
90564-41032

NSP151..5F

T=3.00,MARK UU

 1
90564-41030

NSP151..5F

T=2.90,MARK SS

 1
90564-41031

NSP151..5F

T=2.95,MARK TT

 1
90564-41028

NSP151..5F

T=2.80,MARK QQ

 1
41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON
90366-T0089

NSP151..5F

 1
41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR
90366-T0088

NSP151..5F

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

NSP151..5F

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

NSP151..5F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

NSP151..5F

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

NSP151..5F

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

NSP151..5F

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-0D030

NSP151..5F

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

NSP151..5F

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

NSP151..5F

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

NSP151..5F

T=1.20,MARK 04

 2
41361-22160

NSP151..5F

T=1.15,MARK 16

 2
41361-22140

NSP151..5F

T=0.95,MARK 14

 2
41361-22020

NSP151..5F

T=1.00,MARK 02

 2
41361-22150

NSP151..5F

T=1.05,MARK 15

 2
41361-22030

NSP151..5F

T=1.10,MARK 03

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

NSP151..5F

T=1.20,MARK 04

 2
41361-22160

NSP151..5F

T=1.15,MARK 16

 2
41361-22140

NSP151..5F

T=0.95,MARK 14

 2
41361-22020

NSP151..5F

T=1.00,MARK 02

 2
41361-22150

NSP151..5F

T=1.05,MARK 15

 2
41361-22030

NSP151..5F

T=1.10,MARK 03

 2
Linked diagrams
3302
4302
