NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

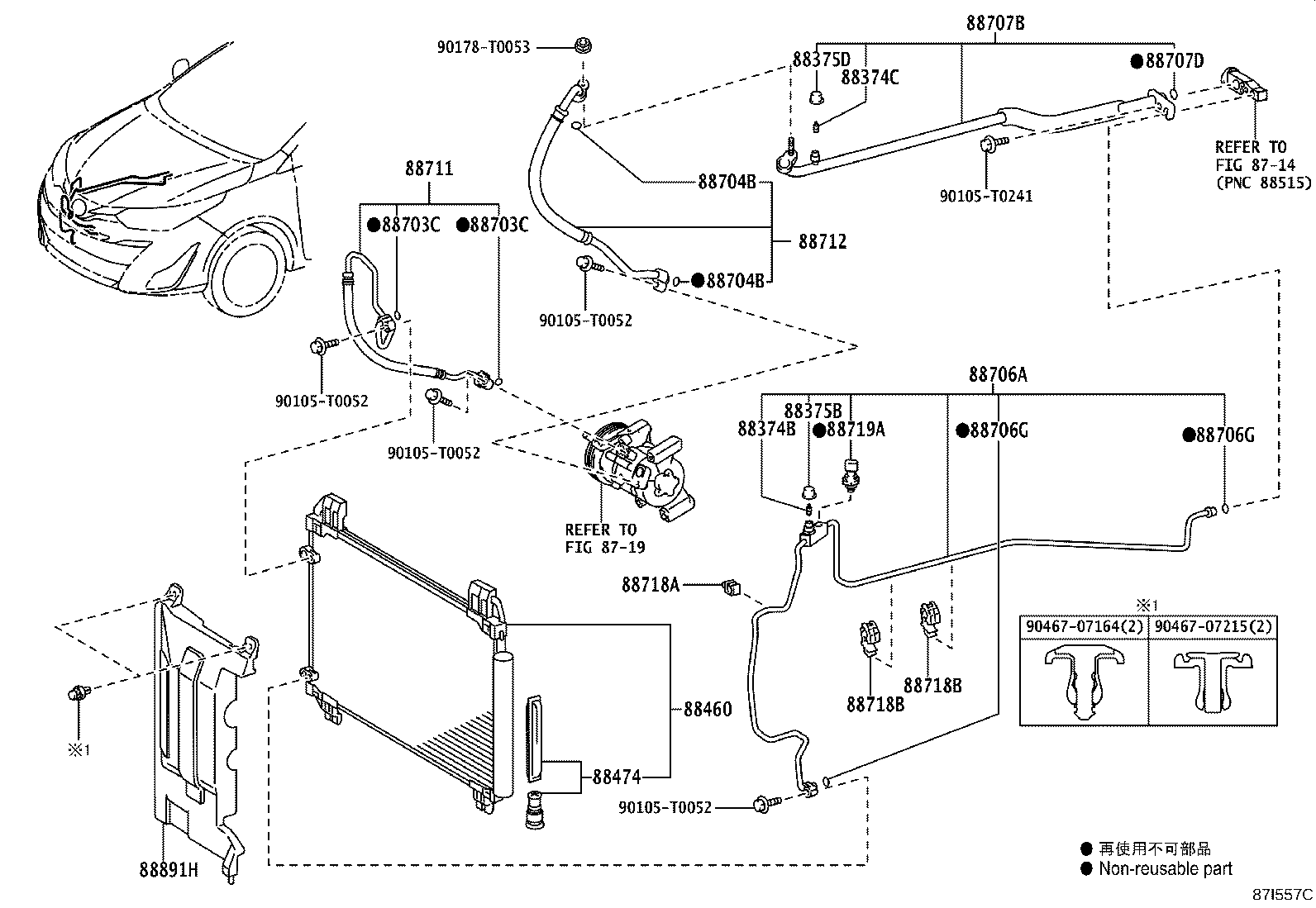

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88703C 88703C 88704B 88704B 88706A 88706G 88706G 88707B 88707D 88711 88712 88718A 88718B 88718B 88719A 88891H 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90178T0053 9046707164 9046707215
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

NSP150

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NSP150

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

NSP150

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

NSP150

 1
88460 - CONDENSER ASSY, COOLER
88460-0D570

NSP150

 1
88474 - DRYER, COOLER
88474-12010

NSP150

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

NSP150

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

NSP150

ID=10.8,OD=15.6

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

NSP150

ID=13.4,OD=18.2

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

NSP150

ID=13.4,OD=18.2

 2
88706A - TUBE SUB-ASSY, LIQUID, A
88706-0DA90

NSP150

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

NSP150

ID=6.7,OD=10.3

 2
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

NSP150

ID=6.7,OD=10.3

 2
88707B - TUBE SUB-ASSY, SUCTION, B
88707-0D380

NSP150

 1
88707D - RING, O(FOR SUCTION TUBE)
90099-14121

NSP150

ID=13.4,OD=18.2

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0D790

NSP150

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0D760

NSP150

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-0D210

NSP150

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-0D550

NSP150

 2
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-0D550

NSP150

 2
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

NSP150

 1
88891H - COVER, COOLER, NO.1
88891-0D320

NSP150

 1
Common parts
90105-T0052
90105-T0241
90178-T0053
90467-07164
90467-07215
Linked diagrams
8714
8719
