NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )5F

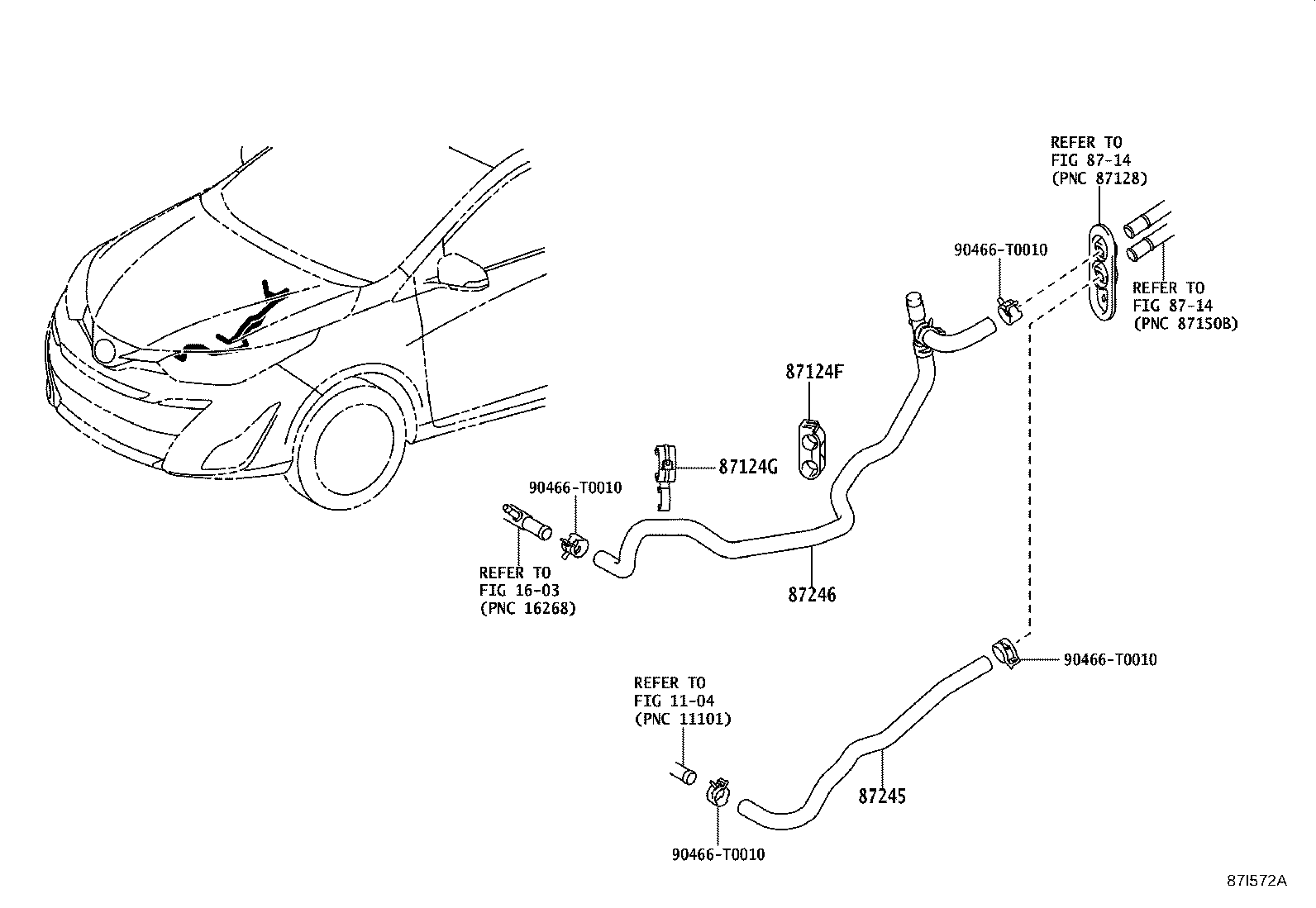

Click highlighted areas on diagram

diagram 1104 1603 87124F 87124G 8714 8714 87245 87246 90466T0010 90466T0010 90466T0010 90466T0010
Part # Description Qty Price
87124F - CLAMP, HEATER HOSE, NO.1
87124-0D360

NSP150

 1
87124G - CLAMP, HEATER HOSE, NO.2
87124-0D350

NSP150

 1
87245 - HOSE, HEATER WATER, INLET
87245-0D650

NSP150

 1
87246 - HOSE, HEATER WATER, OUTLET
87209-0D350

NSP150

 1
Common parts
90466-T0010
Linked diagrams
1104
1603
8714
