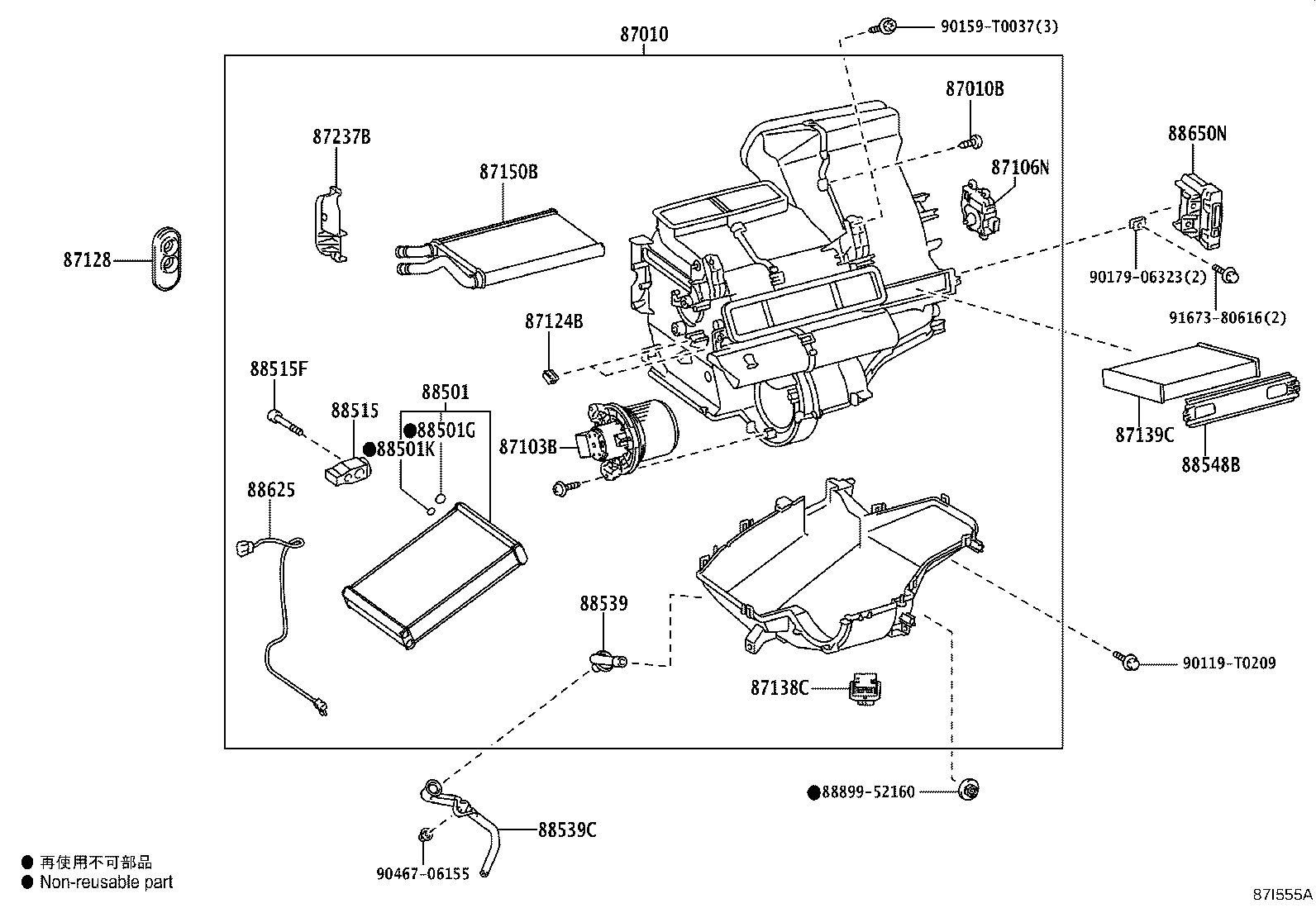

Toyota Limo/vios NSP150 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
87010 - UNIT ASSY, AIR CONDITIONER
87010-0DM20	NSP150	12/2019 - 09/2021	1
87010B - SCREW(FOR AIR CONDITIONER UNIT)
90068-00042	NSP150	12/2019 - 09/2021	17
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0D290	NSP150	12/2019 - 09/2021	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-0D380	NSP150	12/2019 - 09/2021	1
87124B - CLAMP, HEATER
87124-0D160	NSP150	12/2019 - 09/2021	2
87128 - GROMMET, HEATER
87128-0D091	NSP150	12/2019 - 09/2021	1
87138C - RESISTOR, BLOWER
87138-0K090	NSP150	12/2019 - 09/2021	1
87139C - FILTER, CLEAN AIR
87139-50100	NSP150 POLLEN DEODORANT	12/2019 - 09/2021	1
87139-06080	NSP150 STANDARD	12/2019 - 09/2021	1
87150B - RADIATOR ASSY, HEATER
87150-0D140	NSP150	12/2019 - 09/2021	1
87237B - COVER, HEATER PIPING
87237-0D050	NSP150	12/2019 - 09/2021	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0D370	NSP150	12/2019 - 09/2021	1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121	NSP15# ID=13.4,OD=18.2	12/2019 - 02/2020	1
90068-14044	NSP150 ID=10.2,OD=15.0	02/2020 - 09/2021	1
88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID)
90099-14120	NSP15# ID=10.8,OD=15.6	12/2019 - 02/2020	1
90068-14043	NSP150 ID=13.4,OD=18.2	02/2020 - 09/2021	1
88515 - VALVE, COOLER EXPANSION
88515-0D570	NSP150	12/2019 - 09/2021	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90068-04057	NSP150	12/2019 - 09/2021	2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0D300	NSP150	12/2019 - 09/2021	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-0D350	NSP150	12/2019 - 09/2021	1
88548B - CASE, AIR FILTER
88548-0D160	NSP150	12/2019 - 09/2021	1
88625 - THERMISTOR, COOLER, NO.1
88620-0D050	NSP150	12/2019 - 09/2021	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0D780	NSP150	12/2019 - 09/2021	1
Common parts
88899-52160
90119-T0209
90159-T0037
90179-06323
90467-06155
91673-80616

NSP150L-EEMDKU (2019)

(1912- )D,R
