NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

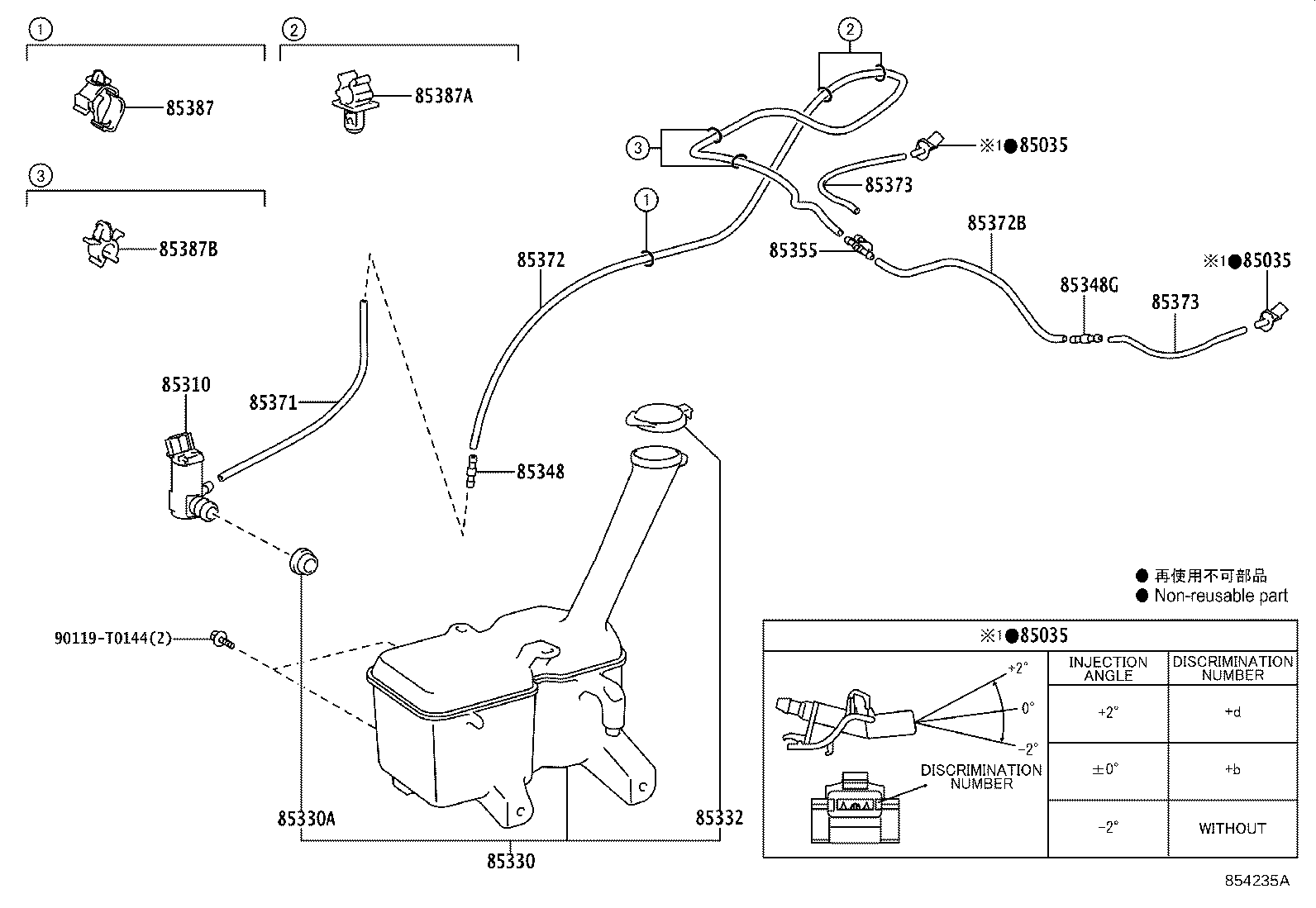

Click highlighted areas on diagram

diagram 85035 85035 85035 85310 85330 85330A 85332 85348 85348G 85355 85371 85372 85372B 85373 85373 85387 85387A 85387B 90119T0144
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

NSP150

ANGLE -2

 2
85381-30240

NSP150

ANGLE +2

 2
85381-30220

NSP150

ANGLE 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

NSP150

ANGLE -2

 2
85381-30240

NSP150

ANGLE +2

 2
85381-30220

NSP150

ANGLE 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

NSP150

ANGLE -2

 2
85381-30240

NSP150

ANGLE +2

 2
85381-30220

NSP150

ANGLE 0

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-0D131

NSP150

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-0D220

NSP150

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

NSP150

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-02630

NSP150

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-02330

NSP150

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-02330

NSP150

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

NSP150

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90068-33207

NSP150

L=230

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-59167

NSP150

L=1620

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-59176

NSP150

L=300

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33153

NSP150

L=180

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33153

NSP150

L=180

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-3F230

NSP15#

 1
82711-0K100

NSP150

 1
85387A - CLAMP, WASHER, NO.2
85371-52110

NSP150

 2
85387B - CLAMP, WASHER, NO.3
90469-T0005

NSP150

 2
Common parts
90119-T0144
