Toyota Limo/vios NSP150 WIRING & CLAMP

NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999

Engine 1NRFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(1912- )

Click highlighted areas on diagram

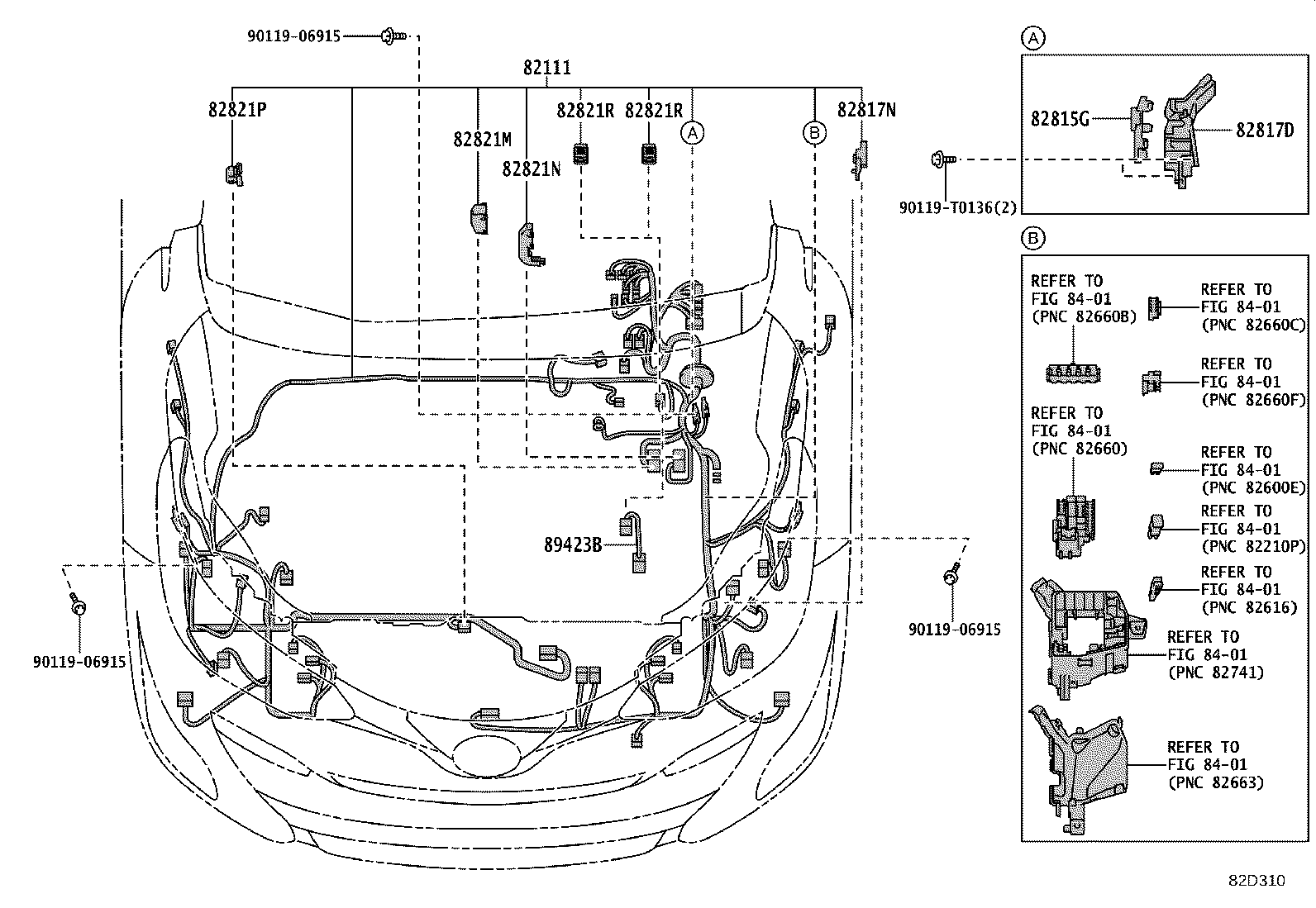

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-0UX83	NSP150	10/2020 - 03/2021	1
82111-0UX82	NSP150	12/2019 - 10/2020	1
82115-F5B90	NSP150	03/2021 - 09/2021	1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-0D350	NSP150	12/2019 - 09/2021	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-0D580	NSP150	12/2019 - 09/2021	1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-0DB10	NSP150	12/2019 - 09/2021	1
82821M - COVER, CONNECTOR
82821-12570	NSP150	12/2019 - 09/2021	1
82821P - COVER, CONNECTOR
82821-30650	NSP150	12/2019 - 09/2021	1
82821R - COVER, CONNECTOR
82821-30600	NSP150	12/2019 - 09/2021	2
82821R - COVER, CONNECTOR
82821-30600	NSP150	12/2019 - 09/2021	2
89423B - WIRE, VACUUM SENSOR
89423-0D020	NSP150	12/2019 - 09/2021	1
Common parts
90119-06915
90119-T0136
Linked diagrams
8401

ILLUST NO. 2 OF 7(1912- )

Click highlighted areas on diagram

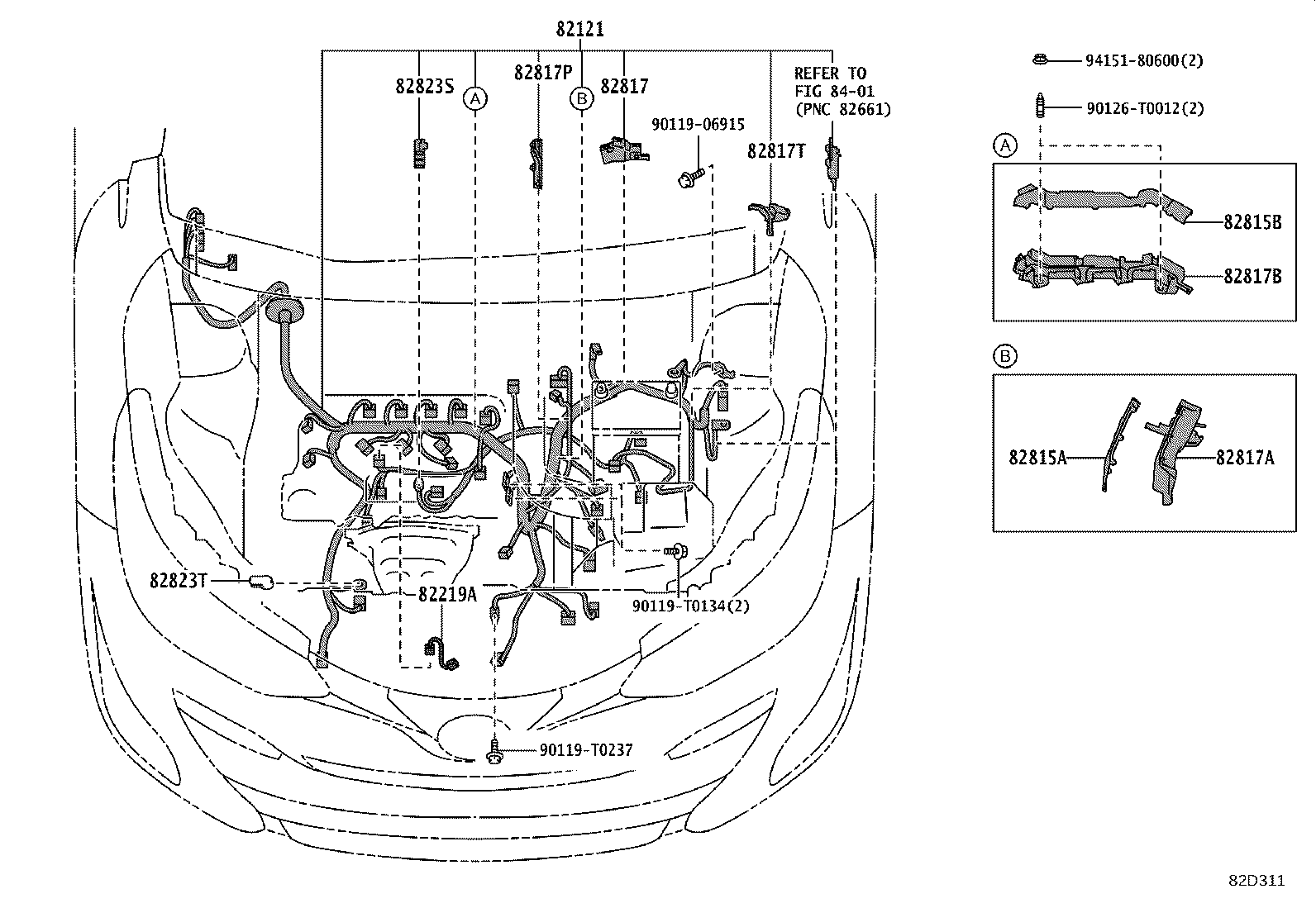

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-0DZ91	NSP150	12/2019 - 09/2021	1
82219A - WIRE, SENSOR
82219-0D110	NSP150	12/2019 - 09/2021	1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-52230	NSP150	12/2019 - 09/2021	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-0D700	NSP150	12/2019 - 09/2021	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-52B80	NSP150	12/2019 - 09/2021	1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-0DB50	NSP150	12/2019 - 09/2021	1
82823S - CAP, STARTER TERMINAL
82823-20080	NSP150	12/2019 - 09/2021	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	NSP150	12/2019 - 09/2021	1
Common parts
90119-06915
90119-T0134
90119-T0237
90126-T0012
94151-80600
Linked diagrams
8401

ILLUST NO. 3 OF 7(1912- )

Click highlighted areas on diagram

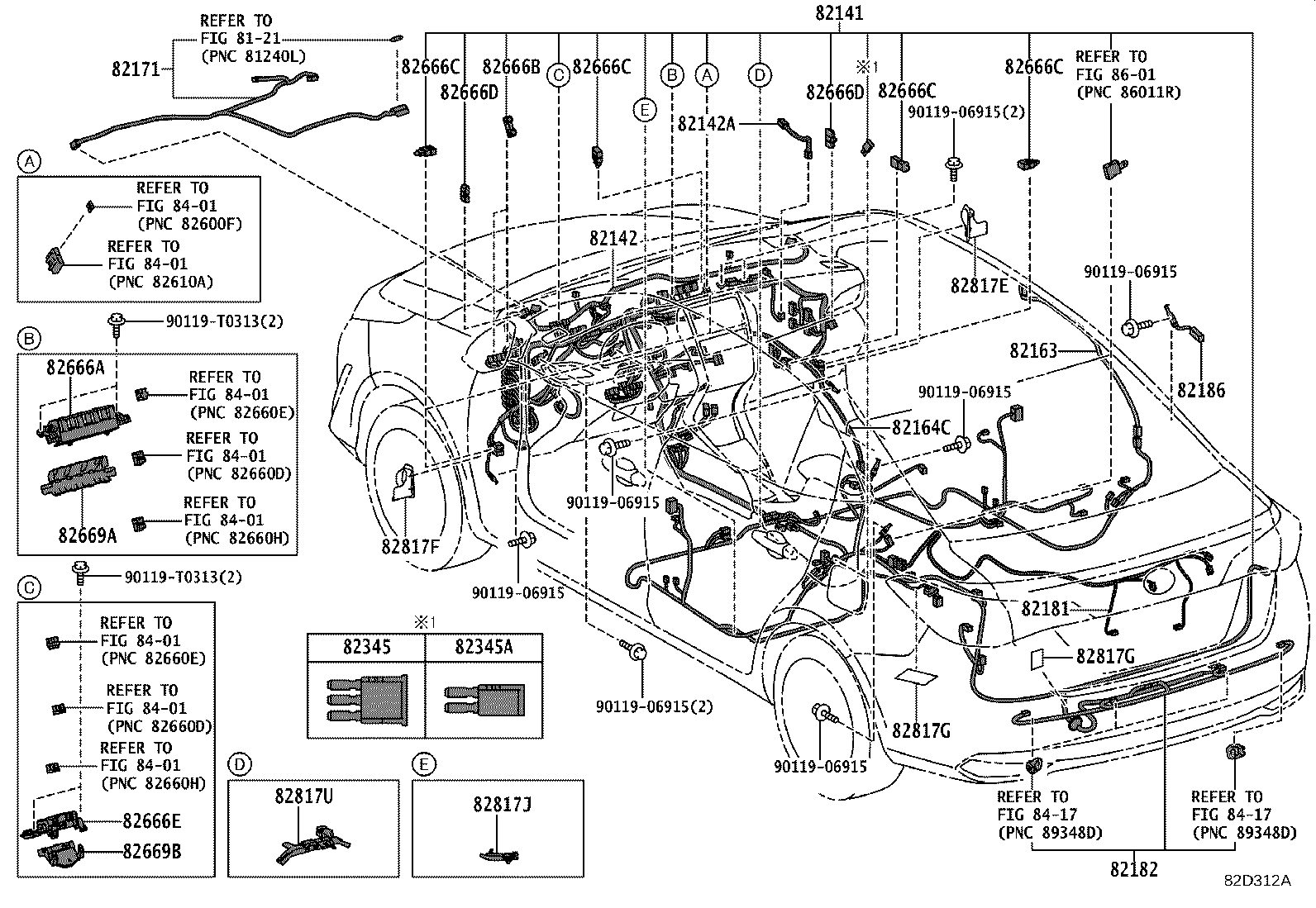

INSTRUMENT PANEL & FLOOR & ROOF

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82145-0UB82	NSP150 SRS AIR BAG-WITH(DRS & PAS & SIDE & *CUSA & KNEE)	12/2019 - 10/2020	1
82145-0UB83	NSP150 SRS AIR BAG-WITH(DRS & PAS & SIDE & *CUSA & KNEE)	10/2020 - 03/2021	1
82145-F5S71	NSP150	10/2020 - 03/2021	1
82145-F5S70	NSP150	12/2019 - 10/2020	1
82146-F5R90	NSP150 SRS AIR BAG-WITH(DRS & PAS & SIDE & *CUSA & KNEE)	03/2021 - 09/2021	1
82146-F5R80	NSP150	03/2021 - 09/2021	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-0D210	NSP150	12/2019 - 09/2021	1
82163 - WIRE, FLOOR, NO.3
82163-0D090	NSP150 SRS AIR BAG-WITH(DRS & PAS & SIDE & *CUSA & KNEE)	12/2019 - 09/2021	1
82164C - WIRE, FLOOR, NO.4
82164-0D060	NSP150 SRS AIR BAG-WITH(DRS & PAS & SIDE & *CUSA & KNEE)	12/2019 - 09/2021	1
82171 - WIRE, ROOF, NO.1
82171-0D850	NSP150	12/2019 - 09/2021	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-0D450	NSP150	12/2019 - 09/2021	1
82186 - WIRE, REAR WINDOW, NO.1
82186-0D331	NSP150	12/2019 - 09/2021	1
82345 - DIODE
82345-20050	NSP150	12/2019 - 09/2021	1
82345A - DIODE
82345-32010	NSP150	12/2019 - 09/2021	1
82666A - HOLDER, CONNECTOR NO.2
82666-0D220	NSP150	12/2019 - 09/2021	1
82666B - HOLDER, CONNECTOR NO.3
82666-0D240	NSP150	12/2019 - 09/2021	2
82666C - HOLDER, CONNECTOR NO.4
82666-20270	NSP150	12/2019 - 09/2021	1
82666C - HOLDER, CONNECTOR NO.4
82666-20270	NSP150	12/2019 - 09/2021	1
82666C - HOLDER, CONNECTOR NO.4
82666-20270	NSP150	12/2019 - 09/2021	1
82666C - HOLDER, CONNECTOR NO.4
82666-20270	NSP150	12/2019 - 09/2021	1
82666D - HOLDER, CONNECTOR NO.5
82666-60220	NSP150	12/2019 - 09/2021	1
82666D - HOLDER, CONNECTOR NO.5
82666-60220	NSP150	12/2019 - 09/2021	1
82666E - HOLDER, CONNECTOR NO.6
82666-0D230	NSP150	12/2019 - 09/2021	1
82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER
82669-0D040	NSP150	12/2019 - 09/2021	1
82669B - COVER, CONNECTOR HOLDER BLOCK, LOWER
82669-0D050	NSP150	12/2019 - 09/2021	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-0D600	NSP150	12/2019 - 09/2021	1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-0D610	NSP150	12/2019 - 09/2021	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
61815-64010	NSP150	12/2019 - 09/2021	1
82817G - PROTECTOR, WIRING HARNESS, NO.8
61815-64010	NSP150	12/2019 - 09/2021	1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-0DC30	NSP150	12/2019 - 09/2021	1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-0DC20	NSP150	12/2019 - 09/2021	1
Common parts
90119-06915
90119-T0313
Linked diagrams
8121
8401
8417
8601

ILLUST NO. 4 OF 7(1912- )

Click highlighted areas on diagram

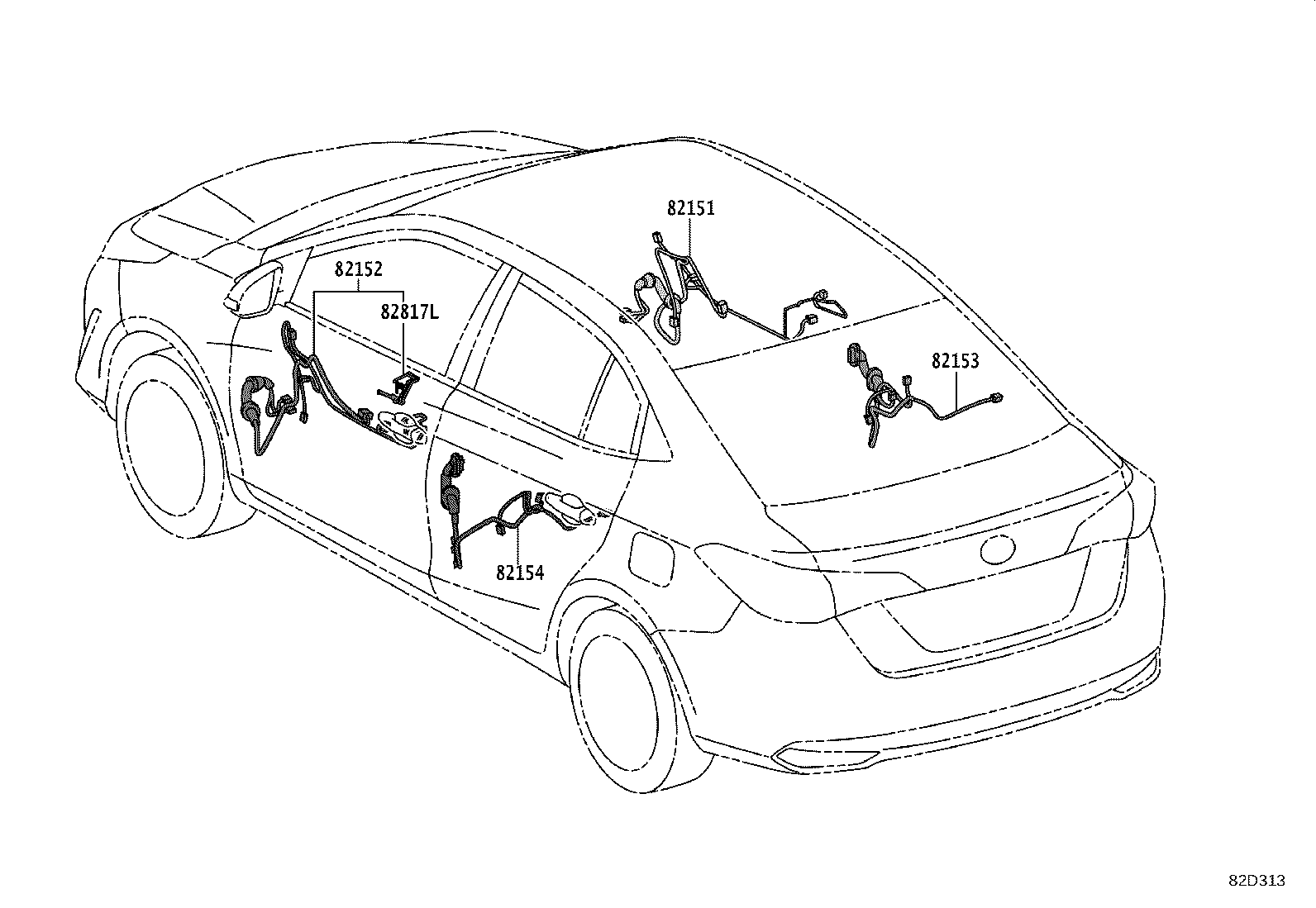

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-0U560	NSP150	12/2019 - 03/2021	1
82151-0UD60	NSP150	03/2021 - 09/2021	1
82152 - WIRE, FRONT DOOR, LH
82152-0U640	NSP150	12/2019 - 03/2021	1
82152-0UE30	NSP150	03/2021 - 09/2021	1
82153 - WIRE, REAR DOOR, NO.1
82153-0DC50	NSP150	12/2019 - 03/2021	1
82153-0DJ80	NSP150	03/2021 - 09/2021	1
82154 - WIRE, REAR DOOR, NO.2
82154-0DB00	NSP150	12/2019 - 03/2021	1
82154-0DG80	NSP150	03/2021 - 09/2021	1

ILLUST NO. 5 OF 7(1912- )

Click highlighted areas on diagram

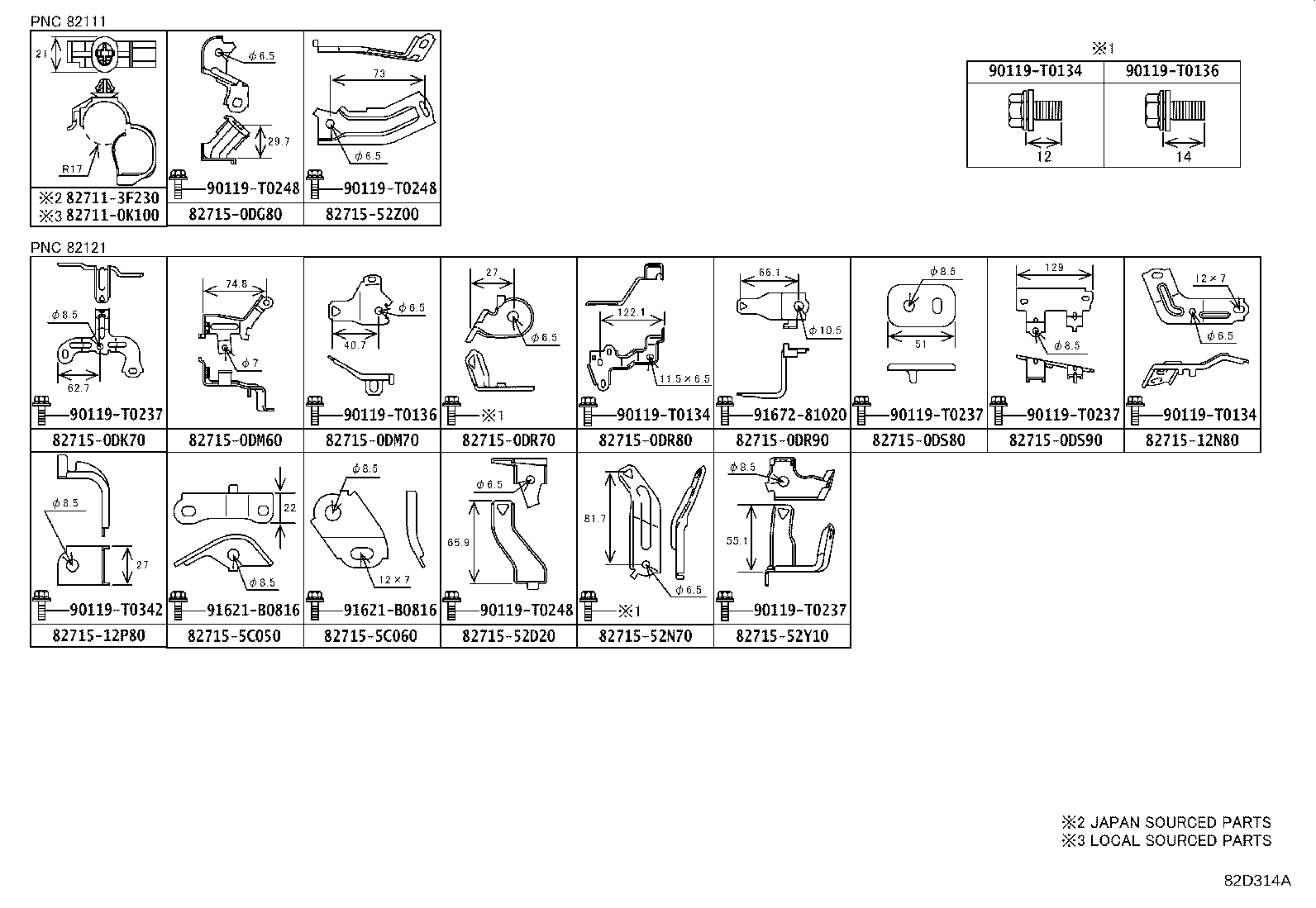

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-0K100
82711-3F230
82715-0DG80
82715-0DK70
82715-0DM60
82715-0DM70
82715-0DR70
82715-0DR80
82715-0DR90
82715-0DS80
82715-0DS90
82715-12N80
82715-12P80
82715-52D20
82715-52N70
82715-52Y10
82715-52Z00
82715-5C050
82715-5C060
90119-T0134
90119-T0136
90119-T0237
90119-T0248
90119-T0342
91621-B0816
91672-81020

ILLUST NO. 6 OF 8(1912- )

Click highlighted areas on diagram

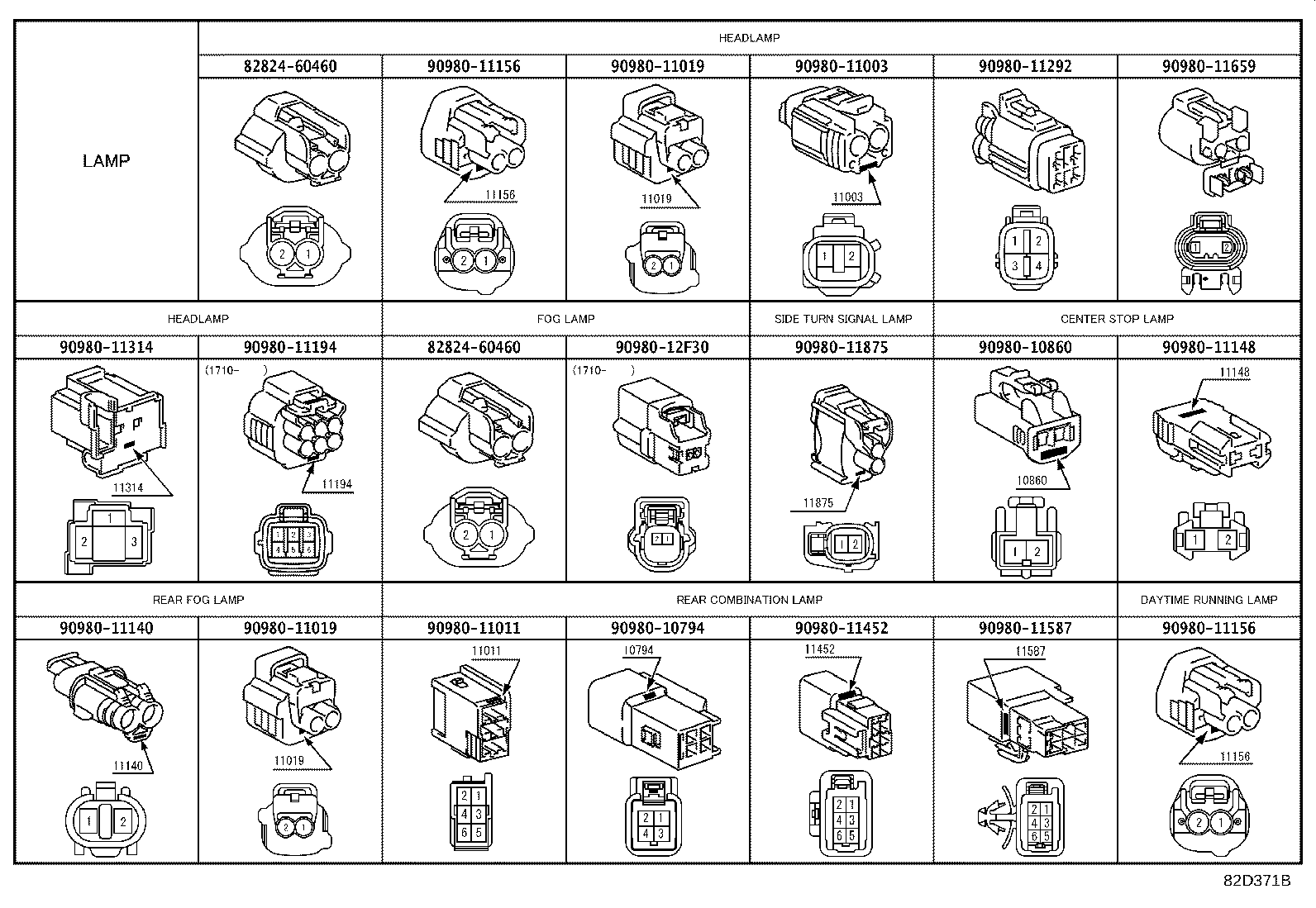

CONNECTOR 1/3

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90980-10794
90980-10860
90980-11003
90980-11011
90980-11019
90980-11140
90980-11148
90980-11156
90980-11194
90980-11292
90980-11314
90980-11452
90980-11587
90980-11659
90980-11875
90980-12F30

ILLUST NO. 7 OF 8(1912- )

Click highlighted areas on diagram

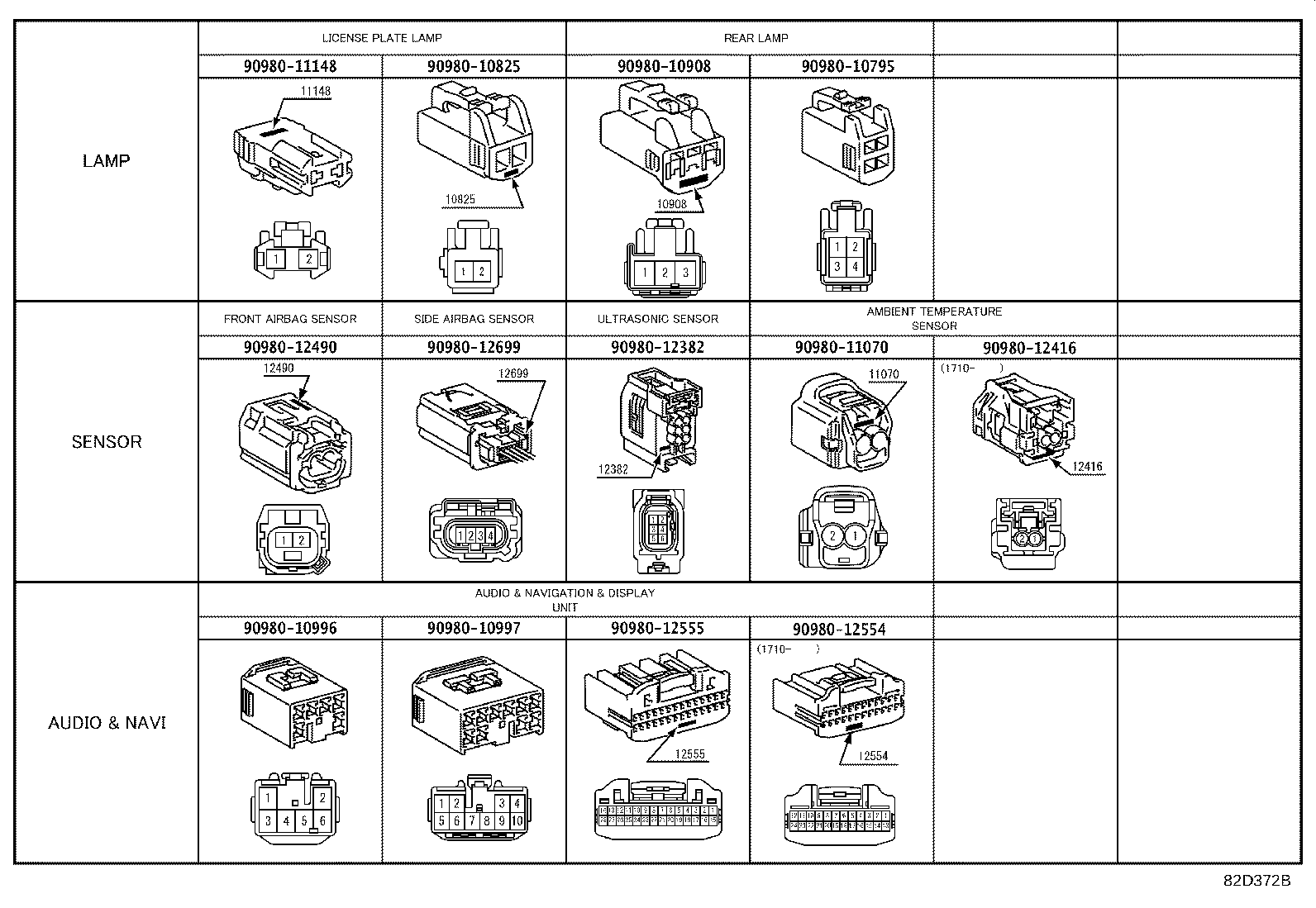

CONNECTOR 2/3

Part #	Description	Period	Qty	Price
Common parts
90980-10795
90980-10825
90980-10908
90980-10996
90980-10997
90980-11070
90980-11148
90980-12382
90980-12416
90980-12490
90980-12554
90980-12555
90980-12699

ILLUST NO. 8 OF 8(1912- )

Click highlighted areas on diagram

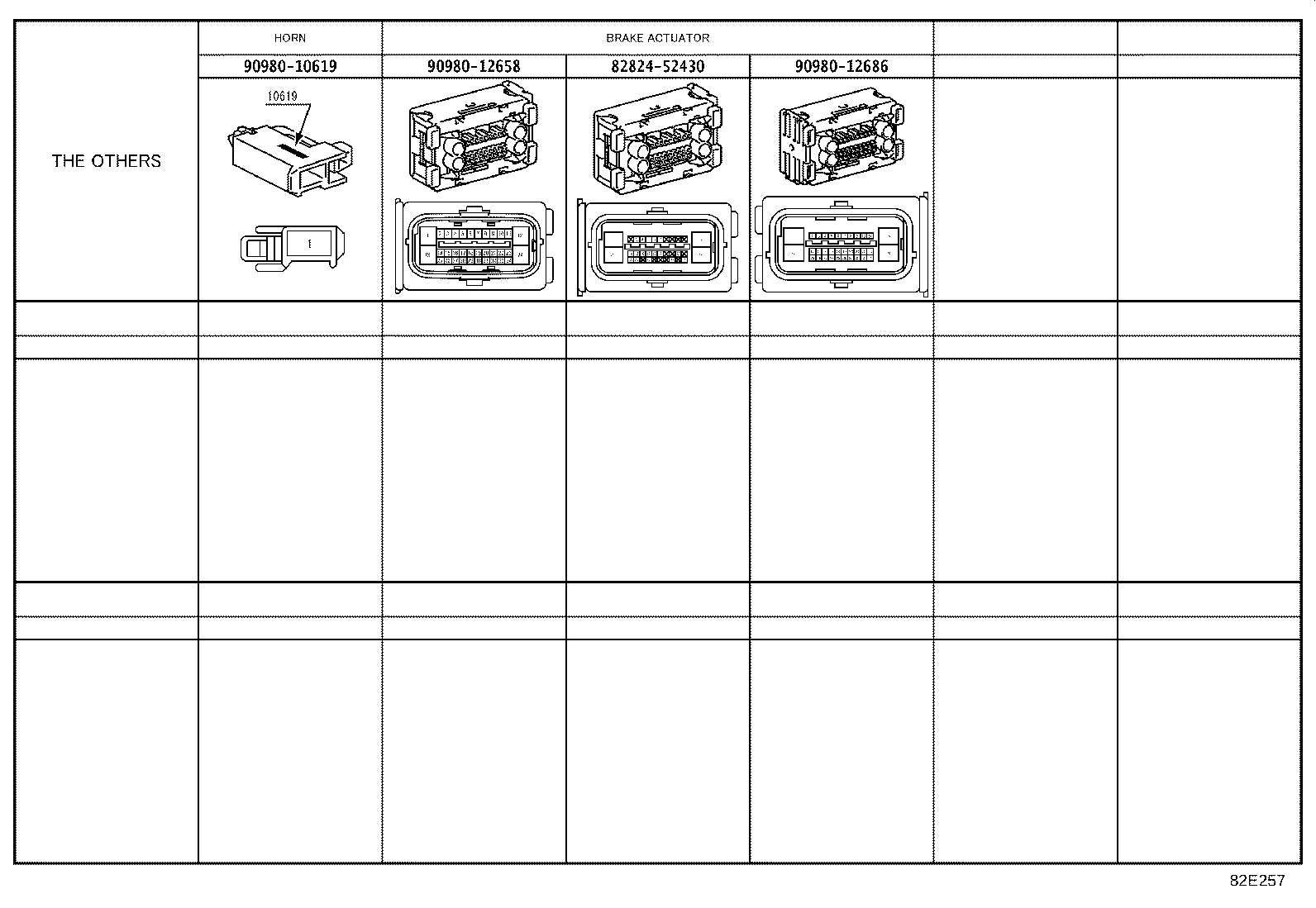

CONNECTOR 3/3

Part #	Description	Period	Qty	Price
Common parts
82824-52430
90980-10619
90980-12658
90980-12686
