NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

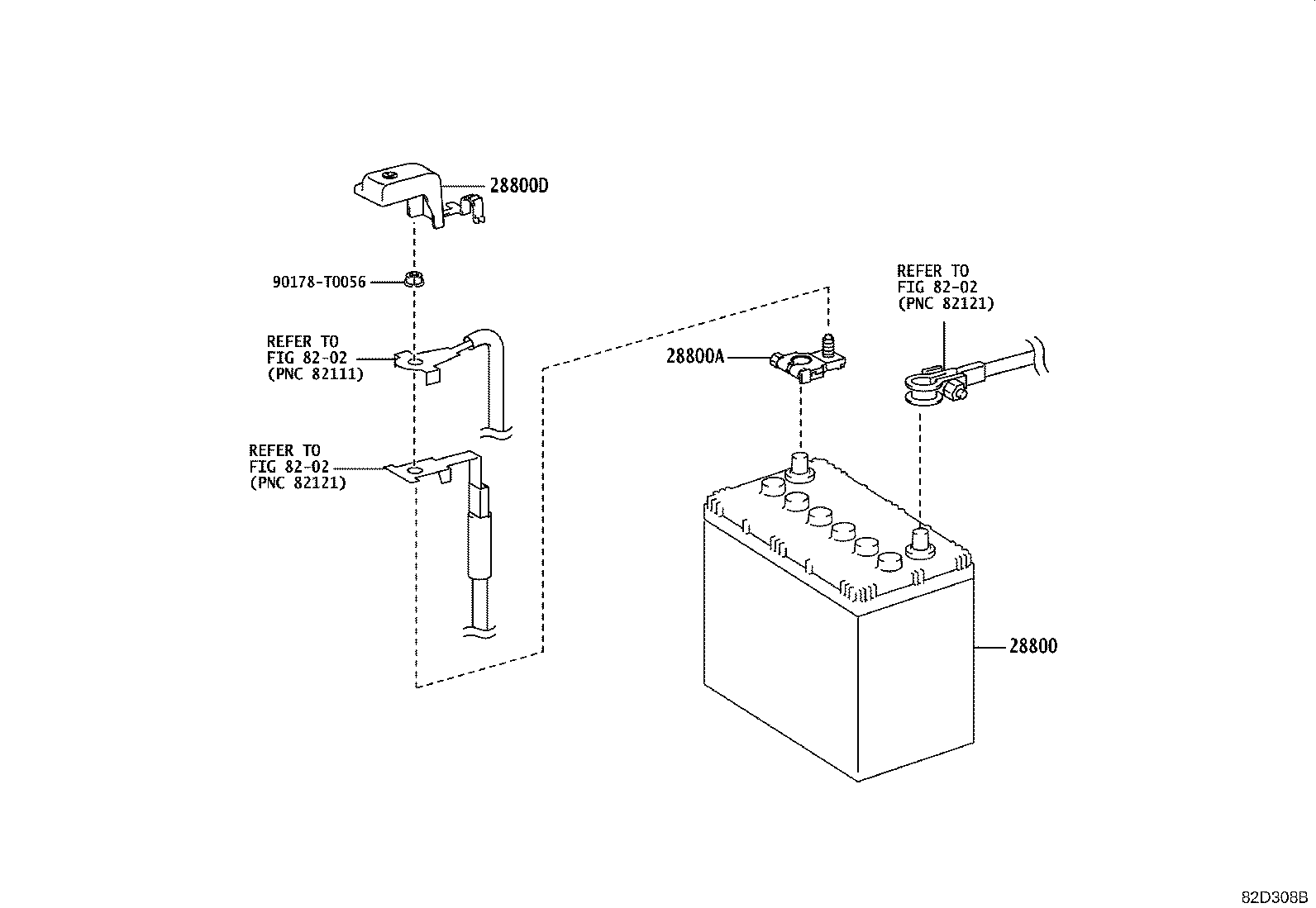

Click highlighted areas on diagram

diagram 28800 28800A 28800D 8202 8202 8202 90178T0056
Part # Description Qty Price
28800 - BATTERY
28800-0Y250

1NRFE..NSP150

34B19L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

1NRFE..NSP150

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12490

1NRFE..NSP150

 1
Common parts
90178-T0056
Linked diagrams
8202
