NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

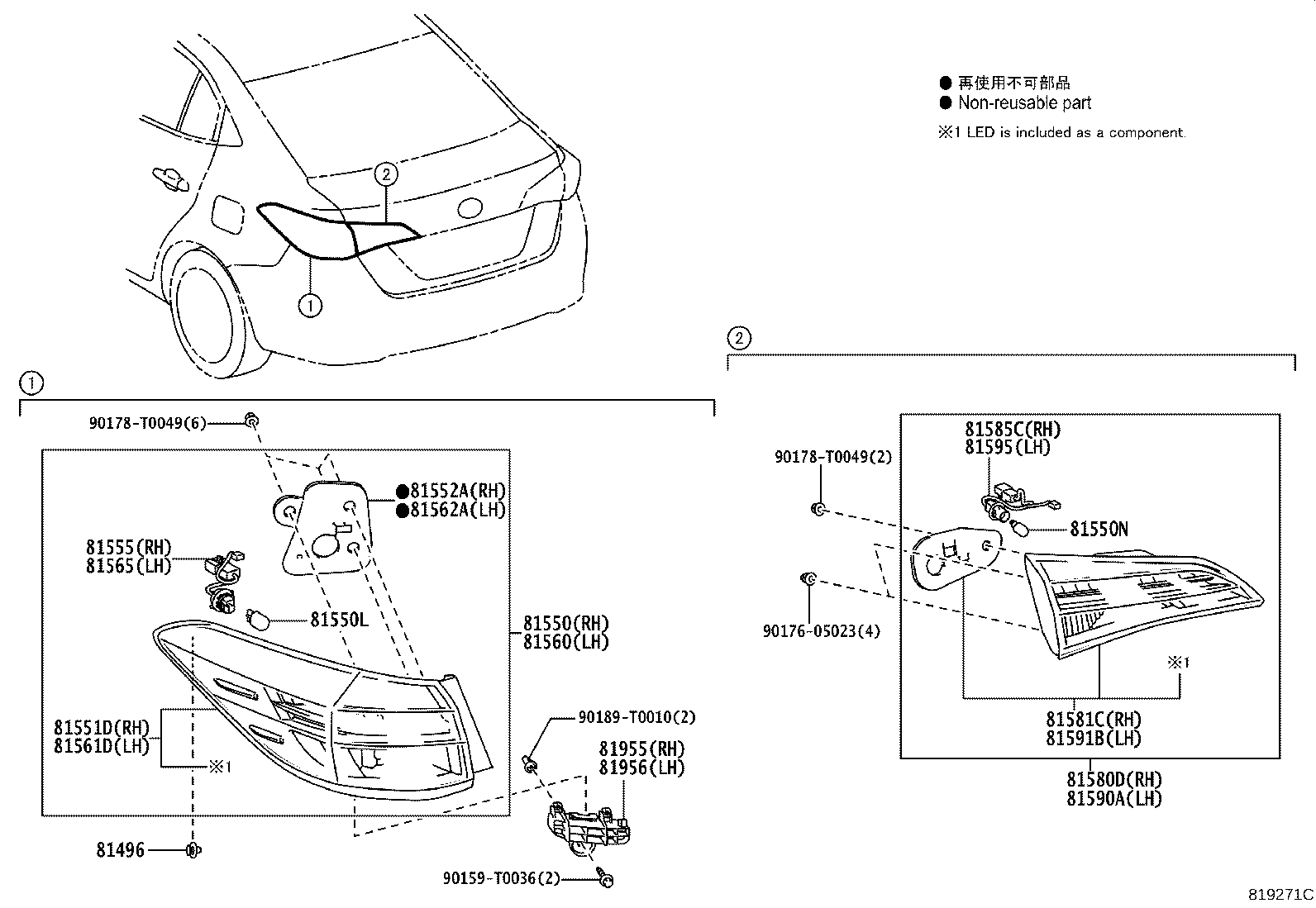

Click highlighted areas on diagram
TAIL & STOP LAMP = LED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-60010 |
NSP150 |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-0DD21 |
NSP150 |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
NSP150 12V 21W,AMBER |
1 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
NSP150 12V 16W |
1 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-0DD21 |
NSP150 |
1 | ||
| 81552A - GASKET, REAR COMBINATION LAMP, RH | ||||
| 81554-0DD21 |
NSP150 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-0DD21 |
NSP150 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-0DD21 |
NSP150 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-0DD21 |
NSP150 |
1 | ||
| 81562A - GASKET, REAR COMBINATION LAMP, LH | ||||
| 81564-0DD21 |
NSP150 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-0DD21 |
NSP150 |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-0DB30 |
NSP150 |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-0D500 |
NSP150 |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-0D500 |
NSP150 |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-0DB30 |
NSP150 |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-0D500 |
NSP150 |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81585-0D500 |
NSP150 |
1 | ||
| 81955 - RETAINER, REAR COMBINATION LAMP, RH | ||||
| 52562-0D230 |
NSP150 |
1 | ||
| 81956 - RETAINER, REAR COMBINATION LAMP, LH | ||||
| 52563-0D230 |
NSP150 |
1 | ||
| Common parts | ||||
| 90159-T0036 | ||||
| 90176-05023 | ||||
| 90178-T0049 | ||||
| 90189-T0010 | ||||

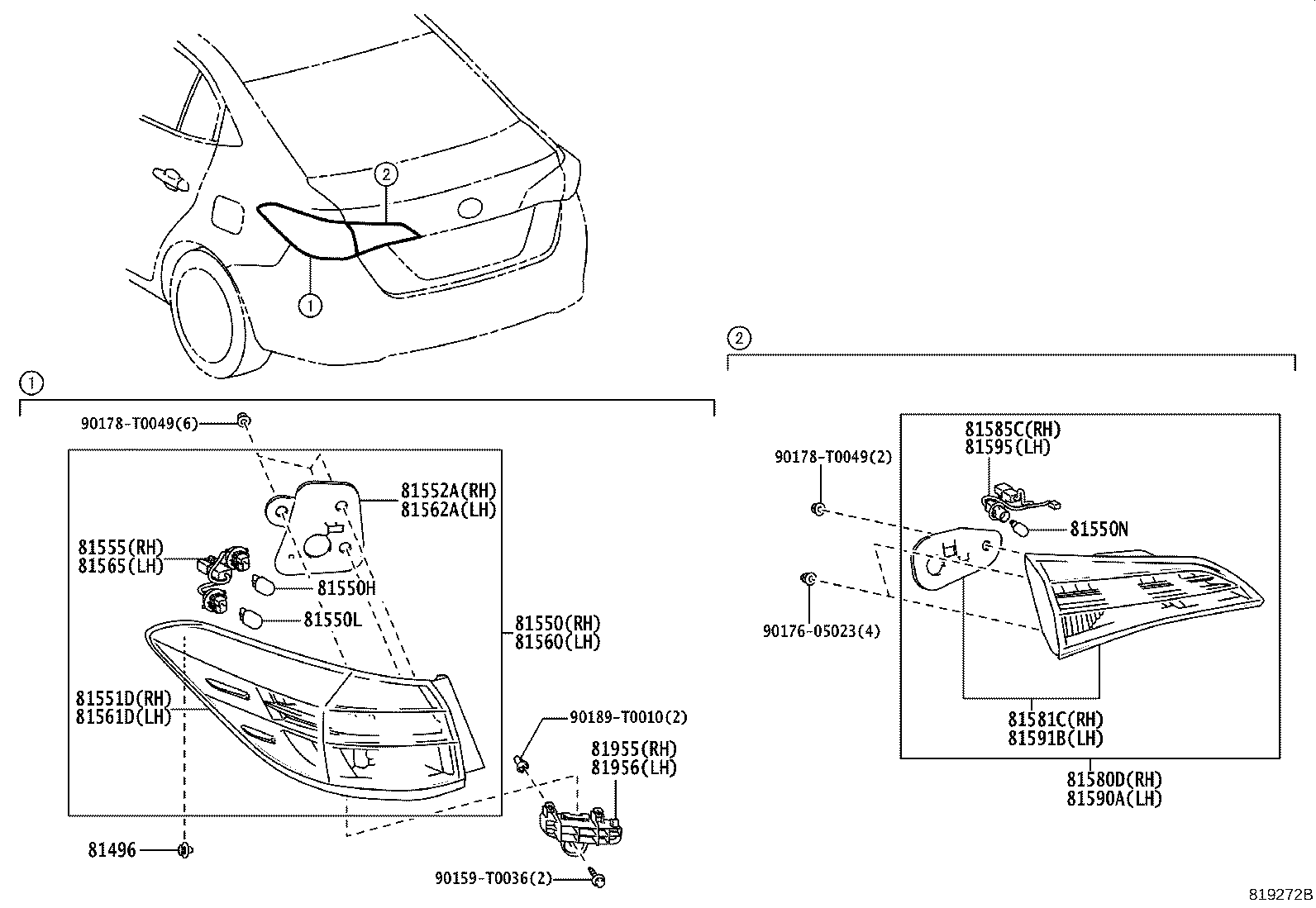

(1912- )
Click highlighted areas on diagram
TAIL & STOP LAMP = BULB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-60010 |
NSP150 |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-0DD21 |
NSP150 |
1 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
NSP150 12V 21/5W |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
NSP150 12V 21W,AMBER |
1 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
NSP150 12V 16W |
1 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-0DD21 |
NSP150 |
1 | ||
| 81552A - GASKET, REAR COMBINATION LAMP, RH | ||||
| 81554-0DD21 |
NSP150 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-0DD21 |
NSP150 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-0DD21 |
NSP150 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-0DD21 |
NSP150 |
1 | ||
| 81562A - GASKET, REAR COMBINATION LAMP, LH | ||||
| 81564-0DD21 |
NSP150 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-0DD21 |
NSP150 |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-0DB30 |
NSP150 |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-0D500 |
NSP150 |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-0D500 |
NSP150 |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-0DB30 |
NSP150 |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-0D500 |
NSP150 |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81585-0D500 |
NSP150 |
1 | ||
| 81955 - RETAINER, REAR COMBINATION LAMP, RH | ||||
| 52562-0D230 |
NSP150 |
1 | ||
| 81956 - RETAINER, REAR COMBINATION LAMP, LH | ||||
| 52563-0D230 |
NSP150 |
1 | ||
| Common parts | ||||
| 90159-T0036 | ||||
| 90176-05023 | ||||
| 90178-T0049 | ||||
| 90189-T0010 | ||||
