Toyota Limo/vios NSP150 HEADLAMP

NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999

Engine 1NRFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

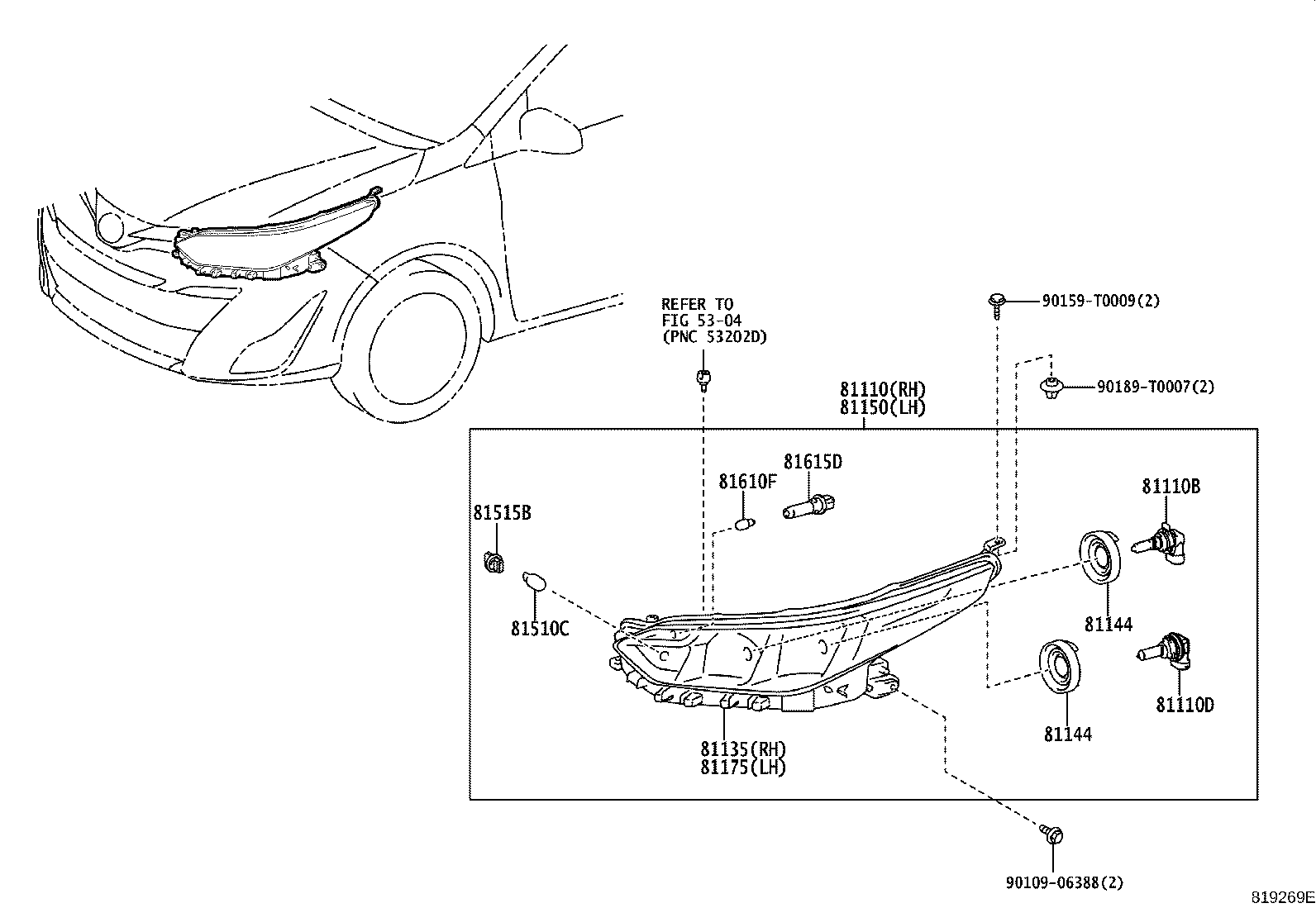

HALOGEN(MULTI REFLECTOR TYPE)

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-0DF31	NSP150	09/2020 - 09/2021	1
81110-0DF30	NSP15#..D,R	12/2019 - 09/2020	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046	NSP150 12V65W(SAE),60W(ECE)	12/2019 - 09/2021	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075	NSP150 12V 55W,HALOGEN	12/2019 - 09/2021	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0DF31	NSP150	09/2020 - 09/2021	1
81130-0DF30	NSP15#..D,R	12/2019 - 09/2020	1
81144 - COVER, HEADLAMP, NO.1
90075-65006	NSP150	12/2019 - 09/2021	4
81144 - COVER, HEADLAMP, NO.1
90075-65006	NSP150	12/2019 - 09/2021	4
81150 - HEADLAMP ASSY, LH
81150-0DF31	NSP150	09/2020 - 09/2021	1
81150-0DF30	NSP15#..D,R	12/2019 - 09/2020	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0DF30	NSP15#..D,R	12/2019 - 09/2020	1
81170-0DF31	NSP150	09/2020 - 09/2021	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021	NSP150 12V 21W,AMBER	12/2019 - 09/2021	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028	NSP150	12/2019 - 09/2021	2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11069	NSP150 12V 5W	12/2019 - 09/2021	2
81615D - SOCKET, CLEARANCE LAMP
90075-60089	NSP150	12/2019 - 09/2021	2
Common parts
90109-06388
90159-T0009
90189-T0007
Linked diagrams
5304

Click highlighted areas on diagram

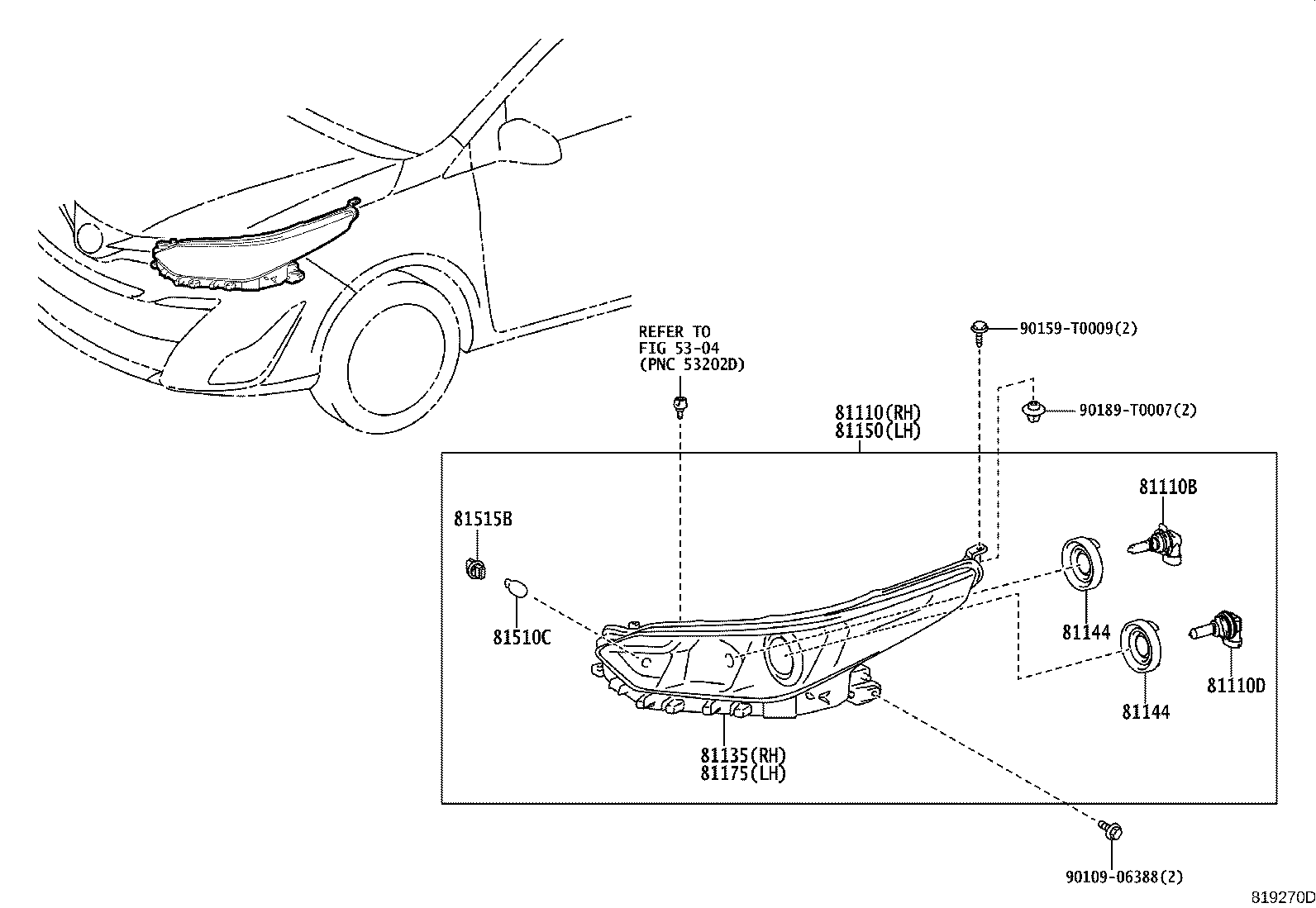

HALOGEN(PROJECTOR TYPE)

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-0DF31	NSP150	09/2020 - 09/2021	1
81110-0DF30	NSP15#..D,R	12/2019 - 09/2020	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046	NSP150 12V65W(SAE),60W(ECE)	12/2019 - 09/2021	2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075	NSP150 12V 55W,HALOGEN	12/2019 - 09/2021	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0DF31	NSP150	09/2020 - 09/2021	1
81130-0DF30	NSP15#..D,R	12/2019 - 09/2020	1
81144 - COVER, HEADLAMP, NO.1
90075-65006	NSP150	12/2019 - 09/2021	4
81144 - COVER, HEADLAMP, NO.1
90075-65006	NSP150	12/2019 - 09/2021	4
81150 - HEADLAMP ASSY, LH
81150-0DF31	NSP150	09/2020 - 09/2021	1
81150-0DF30	NSP15#..D,R	12/2019 - 09/2020	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0DF30	NSP15#..D,R	12/2019 - 09/2020	1
81170-0DF31	NSP150	09/2020 - 09/2021	1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021	NSP150 12V 21W,AMBER	12/2019 - 09/2021	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028	NSP150	12/2019 - 09/2021	2
Common parts
90109-06388
90159-T0009
90189-T0007
Linked diagrams
5304
