NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

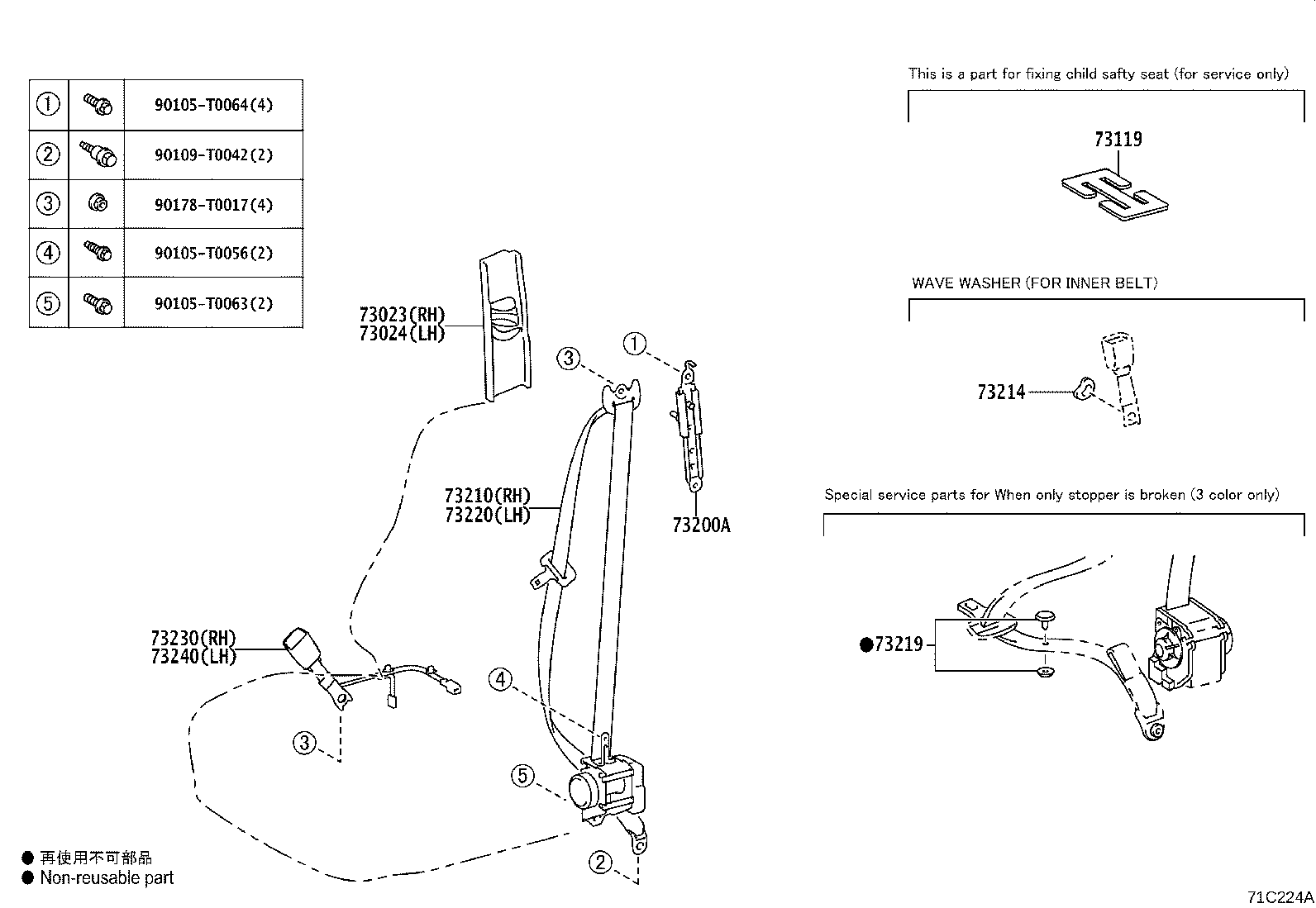

ILLUST NO. 1 OF 2(1912- )
Click highlighted areas on diagram
FRONT SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-06080B0 |
NSP150 GRAY,TRIM2# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-06110B0 |
NSP150 GRAY,TRIM2# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NSP150 |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02140 |
NSP150 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0D510C0 |
NSP15# BLACK/GRAY,TRIM2# |
1 | ||
| 73210-0D630C0 |
NSP150 BLACK/GRAY,TRIM2# |
1 | ||
| 73214 - PLATE, FRONT SEAT BELT ANCHOR | ||||
| 73214-0K010 |
NSP150 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
NSP150 BEIGE |
1 | ||
| 73219-33010 |
NSP150 BLACK |
1 | ||
| 73219-33020 |
NSP150 GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0D500C0 |
NSP15# BLACK/GRAY,TRIM2# |
1 | ||
| 73220-0D620C0 |
NSP150 BLACK/GRAY,TRIM2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0D760C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0D531C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90105-T0056 | ||||
| 90105-T0063 | ||||
| 90105-T0064 | ||||
| 90109-T0042 | ||||
| 90178-T0017 | ||||

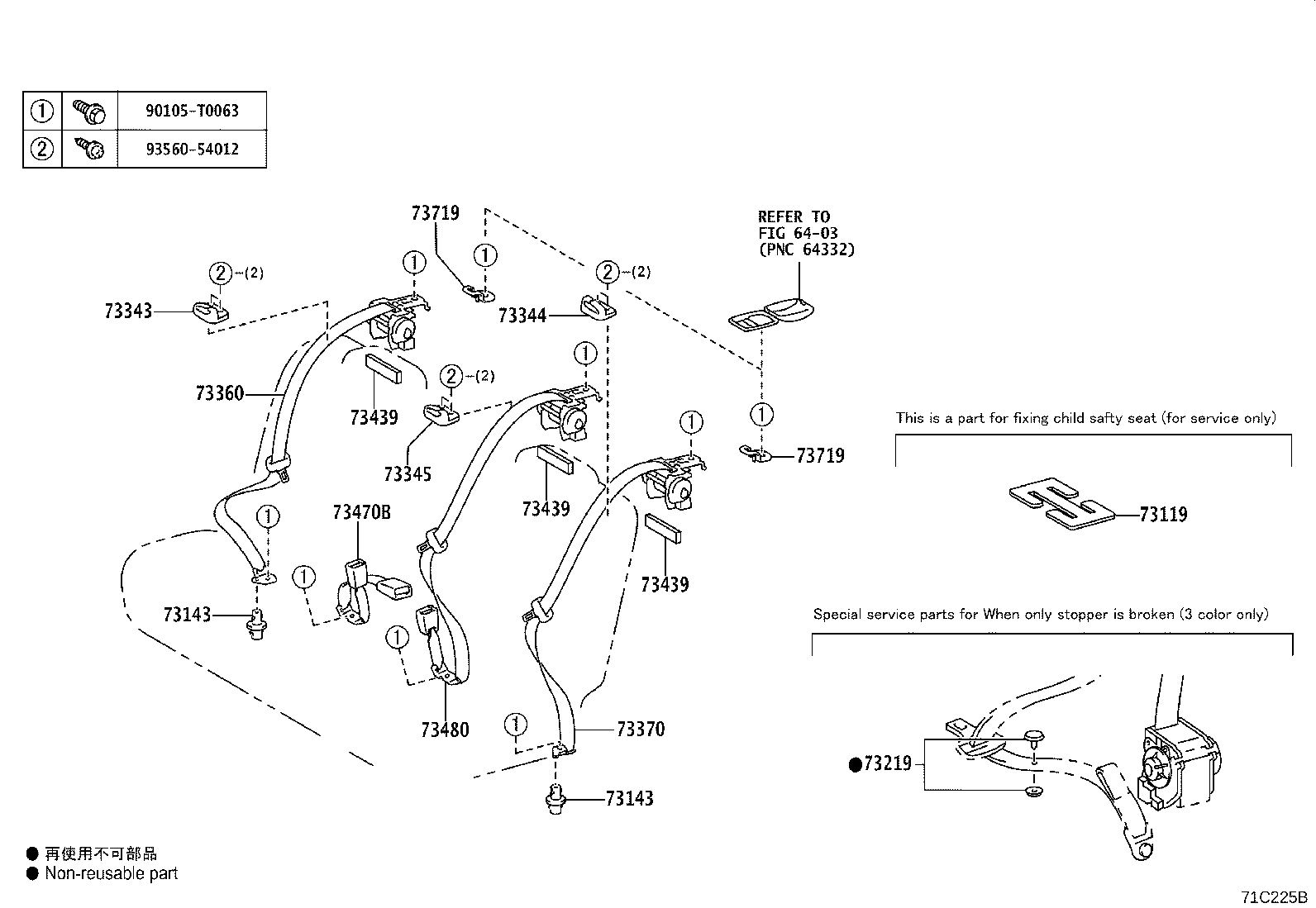

ILLUST NO. 2 OF 2(1912- )
Click highlighted areas on diagram
REAR SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NSP150 |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52012 |
NSP150 |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52012 |
NSP150 |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33030 |
NSP150 BEIGE |
1 | ||
| 73219-33010 |
NSP150 BLACK |
1 | ||
| 73219-33020 |
NSP150 GRAY |
1 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-33020C1 |
NSP150 BLACK,TRIM2# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-33020C1 |
NSP150 BLACK,TRIM2# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73344-33020C1 |
NSP150 BLACK,TRIM2# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-0D510C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-0D450C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D020 |
NSP150 CENTER |
1 | ||
| 73439-0D020 |
NSP150 |
2 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D020 |
NSP150 CENTER |
1 | ||
| 73439-0D020 |
NSP150 |
2 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D020 |
NSP150 CENTER |
1 | ||
| 73439-0D020 |
NSP150 |
2 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-0D460C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-0D510C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-0D010 |
NSP150 |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-0D010 |
NSP150 |
2 | ||
| Common parts | ||||
| 90105-T0063 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 6403 | ||||
