NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

Click highlighted areas on diagram

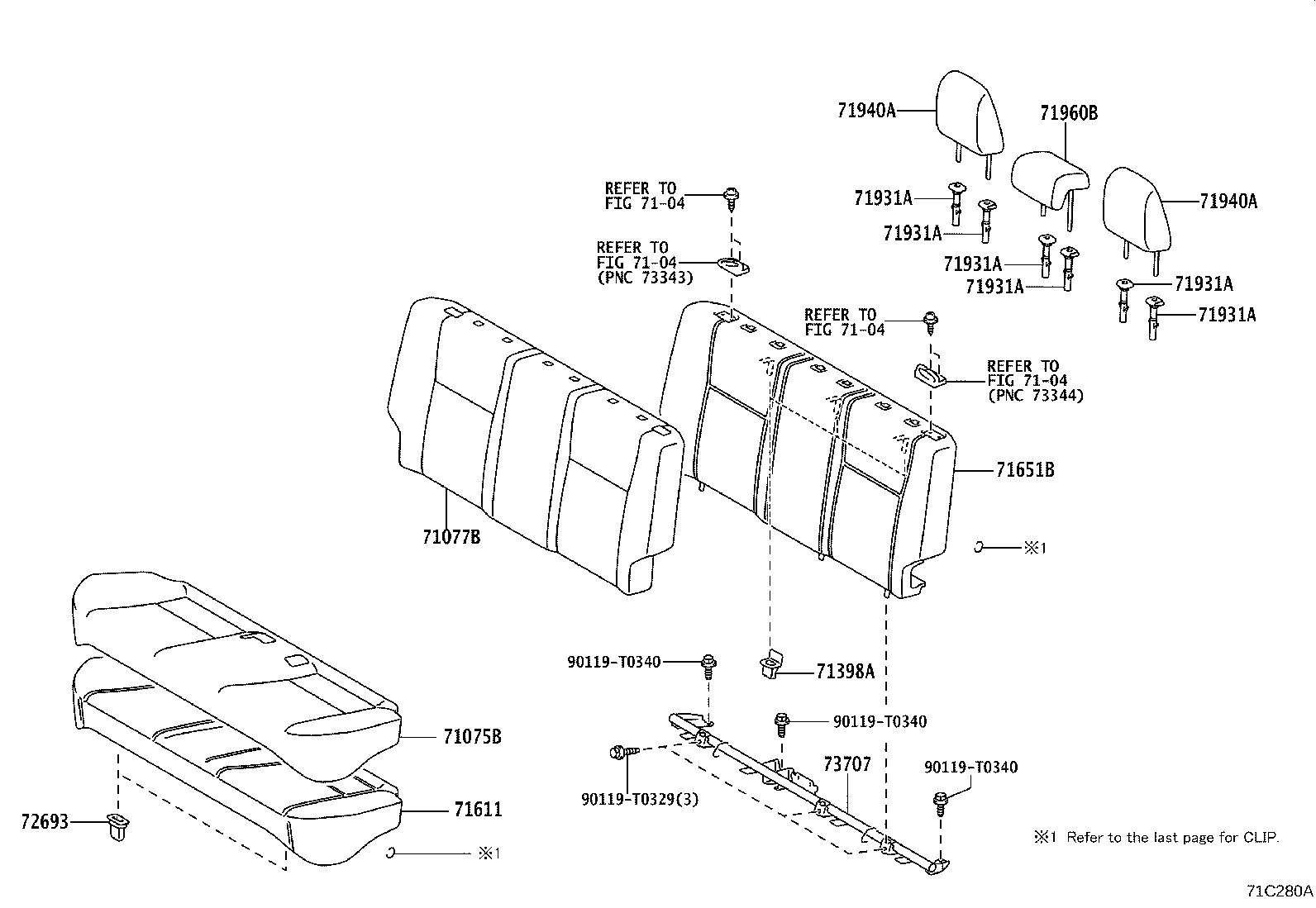

FIXED SEAT

diagram 7104 7104 7104 7104 71075B 71077B 71398A 71611 71651B 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72693 73707 90119T0329 90119T0340 90119T0340 90119T0340
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-0DR20C3

NSP150

BLACK,TRIM2#

 1
71075-0DR20C2

NSP15#..5F

BLACK,TRIM2#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-0DU40C2

NSP150

BLACK,TRIM2#

 1
71077-0DU40C3

NSP150

BLACK,TRIM2#

 1
71398A - HOLDER, REAR SEAT BACK
71398-02040

NSP150

 3
71611 - PAD, REAR SEAT CUSHION
71503-0D520

NSP150

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-0D760

NSP150

 1
71931A - SUPPORT, REAR SEAT HEADREST
71931-02130C0

NSP15#..D,R

W/O(LOCK),BLACK,TRIM2#

 3
71930-02370C0

NSP15#..D,R

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71930-02370C1

NSP150

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP150

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-02130C0

NSP15#..D,R

W/O(LOCK),BLACK,TRIM2#

 3
71930-02370C0

NSP15#..D,R

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71930-02370C1

NSP150

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP150

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-02130C0

NSP15#..D,R

W/O(LOCK),BLACK,TRIM2#

 3
71930-02370C0

NSP15#..D,R

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71930-02370C1

NSP150

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP150

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-02130C0

NSP15#..D,R

W/O(LOCK),BLACK,TRIM2#

 3
71930-02370C0

NSP15#..D,R

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71930-02370C1

NSP150

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP150

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-02130C0

NSP15#..D,R

W/O(LOCK),BLACK,TRIM2#

 3
71930-02370C0

NSP15#..D,R

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71930-02370C1

NSP150

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP150

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-02130C0

NSP15#..D,R

W/O(LOCK),BLACK,TRIM2#

 3
71930-02370C0

NSP15#..D,R

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71930-02370C1

NSP150

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP150

W/O(LOCK),BLACK,TRIM2#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-0DN30C0

NSP150

BLACK,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0DN30C0

NSP150

BLACK,TRIM2#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-0D480C1

NSP150

BLACK,TRIM2#

 1
71960-0D480C0

NSP150

BLACK,TRIM2#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

NSP150

 2
73707 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER
73705-0D360

NSP150

 1
Common parts
90119-T0329
90119-T0340
Linked diagrams
7104

(1912- )

Click highlighted areas on diagram

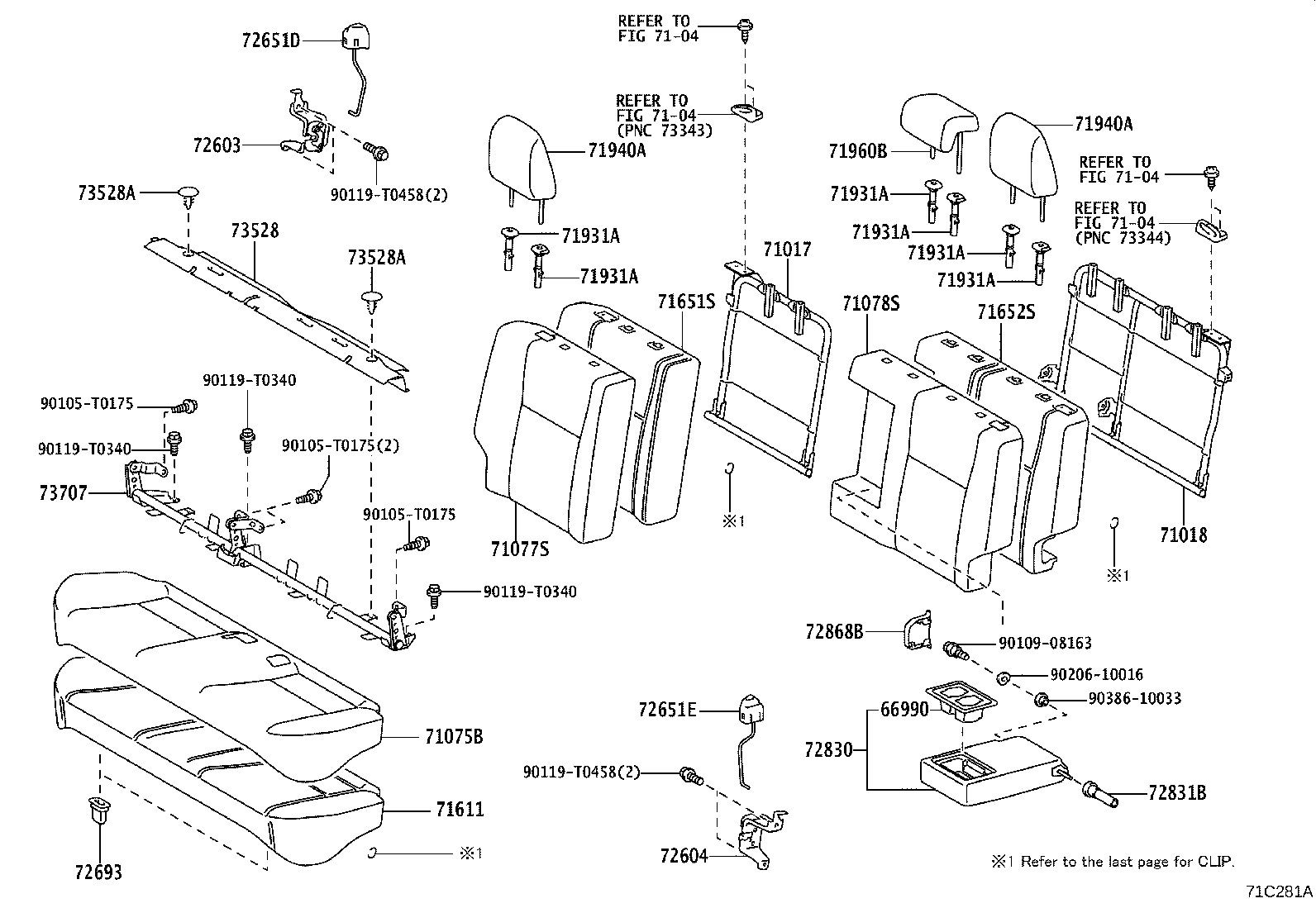

FOLDING SEAT

diagram 66990 71017 71018 7104 7104 7104 7104 71075B 71077S 71078S 71611 71651S 71652S 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72603 72604 72651D 72651E 72693 72830 72831B 72868B 73528 73528A 73528A 73707 90105T0175 90105T0175 90105T0175 9010908163 90119T0340 90119T0340 90119T0340 90119T0458 90119T0458 9020610016 9038610033
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-0DR20C3

NSP150

BLACK,TRIM2#

 1
71075-0DR20C2

NSP15#..5F

BLACK,TRIM2#

 1
71611 - PAD, REAR SEAT CUSHION
71503-0D520

NSP150

 1
71931A - SUPPORT, REAR SEAT HEADREST
71931-02130C0

NSP15#..D,R

W/O(LOCK),BLACK,TRIM2#

 3
71930-02370C0

NSP15#..D,R

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71930-02370C1

NSP150

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP150

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-02130C0

NSP15#..D,R

W/O(LOCK),BLACK,TRIM2#

 3
71930-02370C0

NSP15#..D,R

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71930-02370C1

NSP150

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP150

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-02130C0

NSP15#..D,R

W/O(LOCK),BLACK,TRIM2#

 3
71930-02370C0

NSP15#..D,R

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71930-02370C1

NSP150

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP150

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-02130C0

NSP15#..D,R

W/O(LOCK),BLACK,TRIM2#

 3
71930-02370C0

NSP15#..D,R

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71930-02370C1

NSP150

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP150

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-02130C0

NSP15#..D,R

W/O(LOCK),BLACK,TRIM2#

 3
71930-02370C0

NSP15#..D,R

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71930-02370C1

NSP150

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP150

W/O(LOCK),BLACK,TRIM2#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-02130C0

NSP15#..D,R

W/O(LOCK),BLACK,TRIM2#

 3
71930-02370C0

NSP15#..D,R

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71930-02370C1

NSP150

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C1

NSP150

W/O(LOCK),BLACK,TRIM2#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-0DN30C0

NSP150

BLACK,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0DN30C0

NSP150

BLACK,TRIM2#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-0D480C1

NSP150

BLACK,TRIM2#

 1
71960-0D480C0

NSP150

BLACK,TRIM2#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

NSP150

 2
73707 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER
73705-0D360

NSP150

 1
Common parts
90105-T0175
90109-08163
90119-T0340
90119-T0458
90206-10016
90386-10033
Linked diagrams
7104

(1912- )

Click highlighted areas on diagram

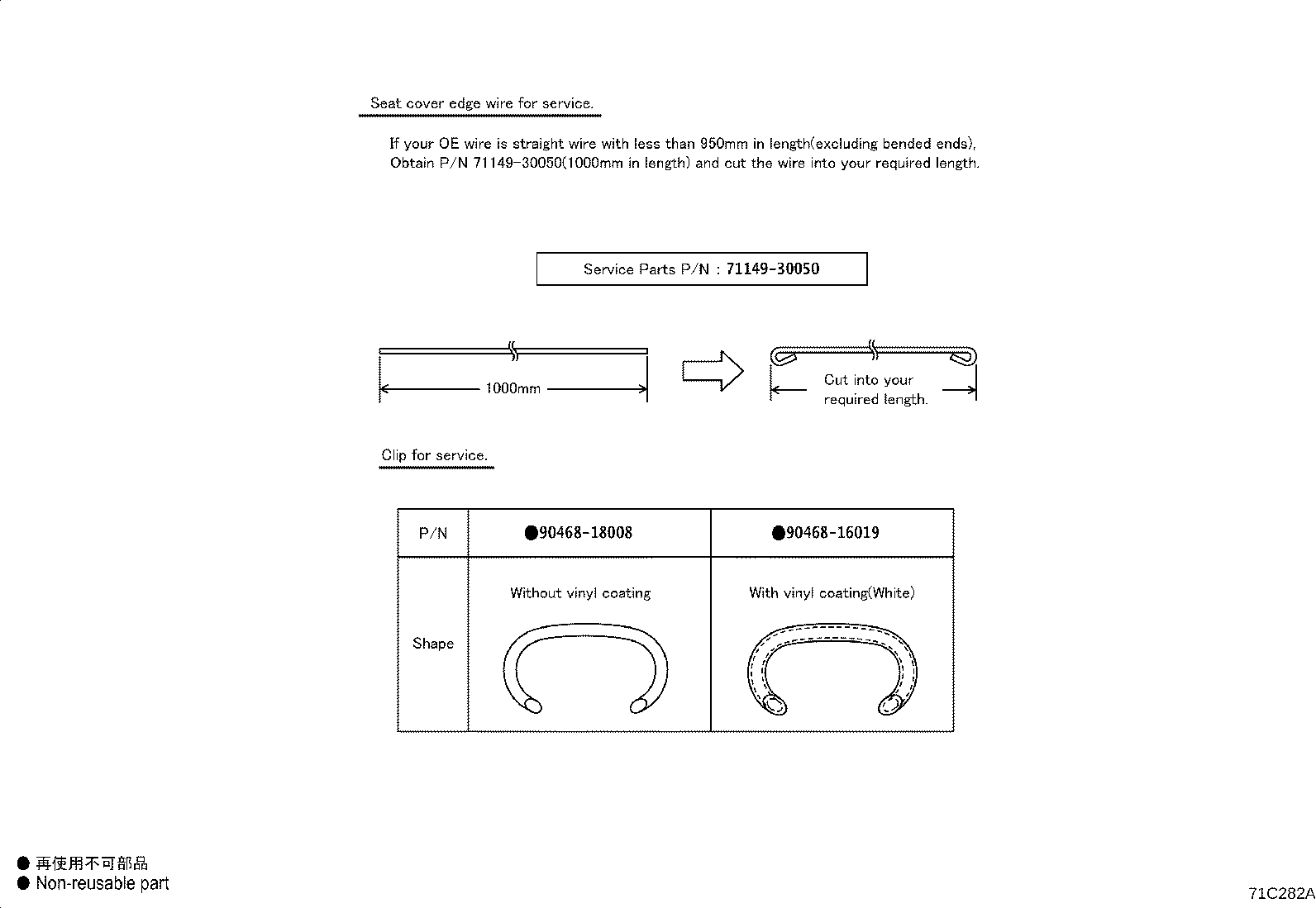

CLIP & SEAT EDGE WIRE

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008
