NSP150L-EEMDKU (2019)
Toyota Limo/Vios

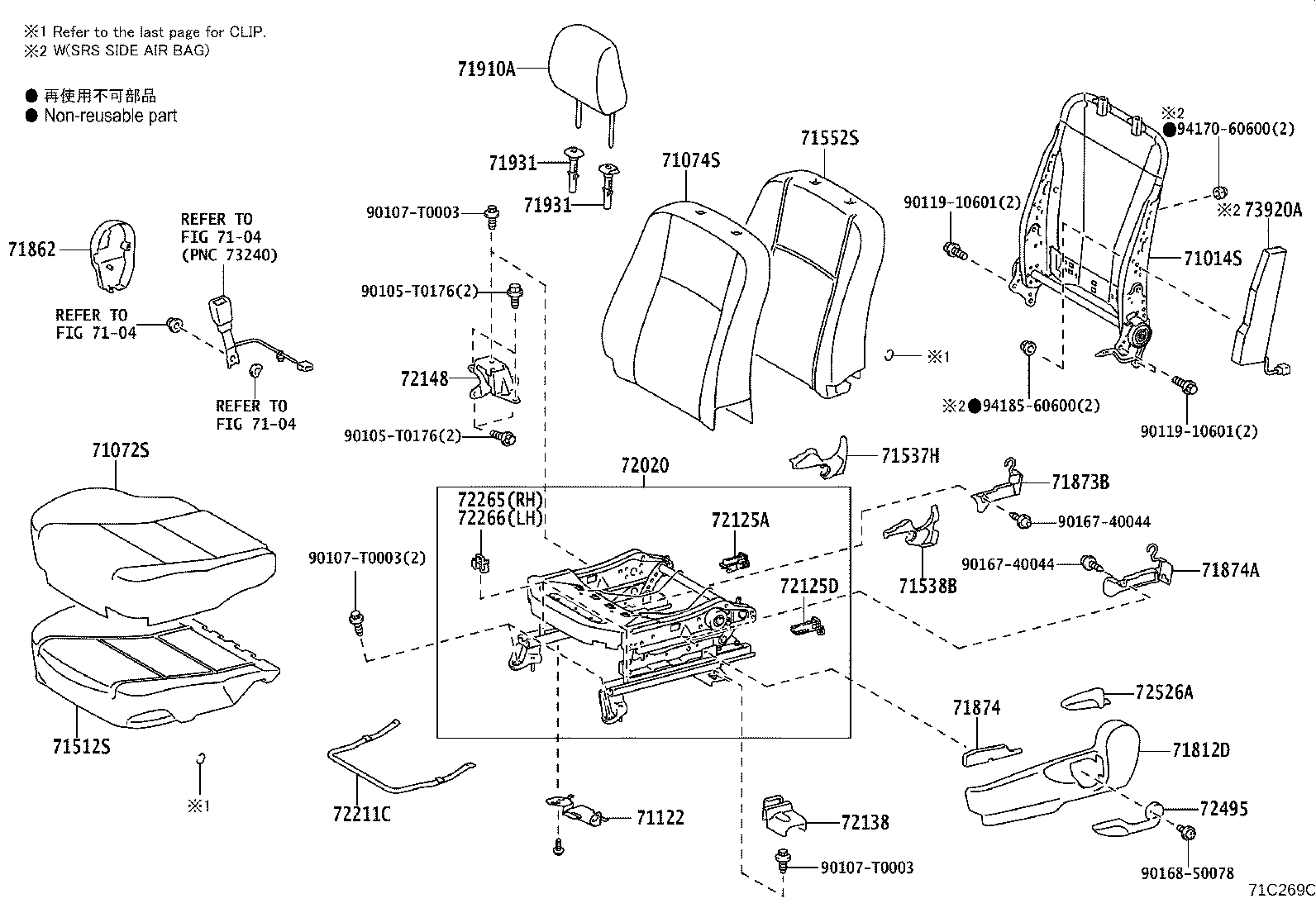

ILLUST NO. 1 OF 2(1912- )
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-0D100 |
NSP150 |
1 | ||
| 71014-0D290 |
NSP150 SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0DZ10C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0UF10C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 71074-0DX10C0 |
NSP150 SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),BLACK,TRIM2# |
1 | ||
| 71122 - BRACKET, FRONT SEAT CUSHION, LH | ||||
| 71122-0D160 |
NSP150 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-0D770 |
NSP150 |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-0D110C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-0D100C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-0D670 |
NSP150 SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 71552-0D740 |
NSP150 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0D470C0 |
NSP150 SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),BLACK,TRIM2# |
1 | ||
| 71812-0D270C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0D330C0 |
NSP150 SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),BLACK,TRIM2# |
1 | ||
| 71862-0D200C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0DB20C0 |
NSP150 BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
NSP15#..D,R W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-02370C1 |
NSP150 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-02130C0 |
NSP15#..D,R W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-02130C1 |
NSP150 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
NSP15#..D,R W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-02370C1 |
NSP150 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-02130C0 |
NSP15#..D,R W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-02130C1 |
NSP150 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-0D461 |
NSP150 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-0D030 |
NSP150 |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-0D080 |
NSP150 |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-0D090C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-0D090 |
NSP150 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D290 |
NSP150 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-0D080 |
NSP150 |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-0D080 |
NSP150 |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0D260C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-0D100 |
NSP150 SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| Common parts | ||||
| 90105-T0176 | ||||
| 90107-T0003 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

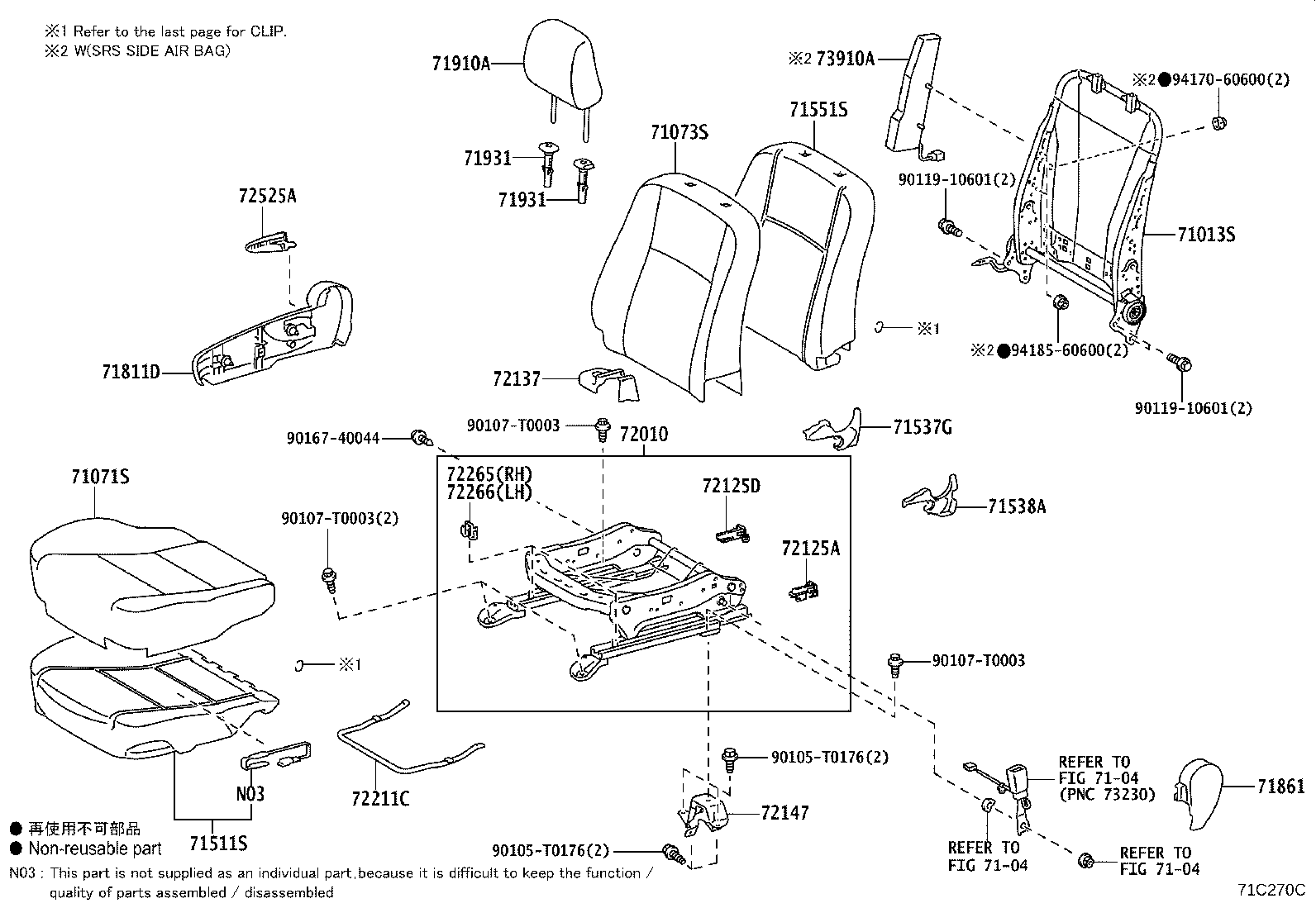

ILLUST NO. 2 OF 2(1912- )
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-0D290 |
NSP150 SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 71013-0D100 |
NSP150 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0DY50C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0U060C0 |
NSP150 SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),BLACK,TRIM2# |
1 | ||
| 71073-0UK50C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0D300 |
NSP150 |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-0D110C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-0D100C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0D730 |
NSP150 SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 71551-0DA20 |
NSP150 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0D450C0 |
NSP150 SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),BLACK,TRIM2# |
1 | ||
| 71811-0D270C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0D220C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 71861-0D330C0 |
NSP150 SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0DB20C0 |
NSP150 BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
NSP15#..D,R W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-02370C1 |
NSP150 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-02130C0 |
NSP15#..D,R W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-02130C1 |
NSP150 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02370C0 |
NSP15#..D,R W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71930-02370C1 |
NSP150 W(LOCK)&W(BUTTON),BLACK,TRIM2# |
2 | ||
| 71931-02130C0 |
NSP15#..D,R W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-02130C1 |
NSP150 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-0D740 |
NSP150 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-0D030 |
NSP150 |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-0D080 |
NSP150 |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-0D100C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-0D080 |
NSP150 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0D290 |
NSP150 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-0D080 |
NSP150 |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-0D080 |
NSP150 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0D270C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-0D100 |
NSP150 SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| Common parts | ||||
| 90105-T0176 | ||||
| 90107-T0003 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1912- )

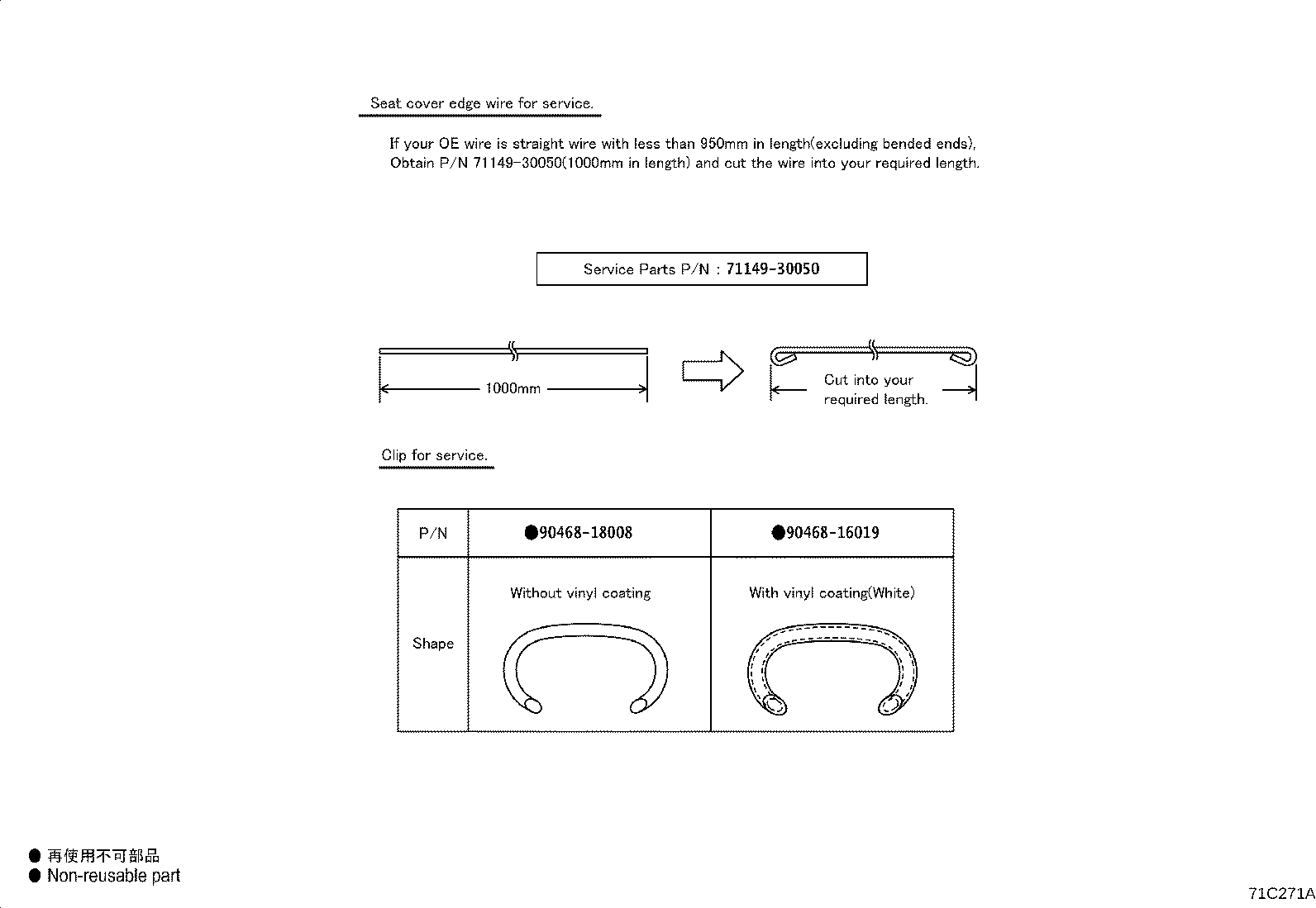

CLIP & SEAT EDGE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
