NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )NSP150

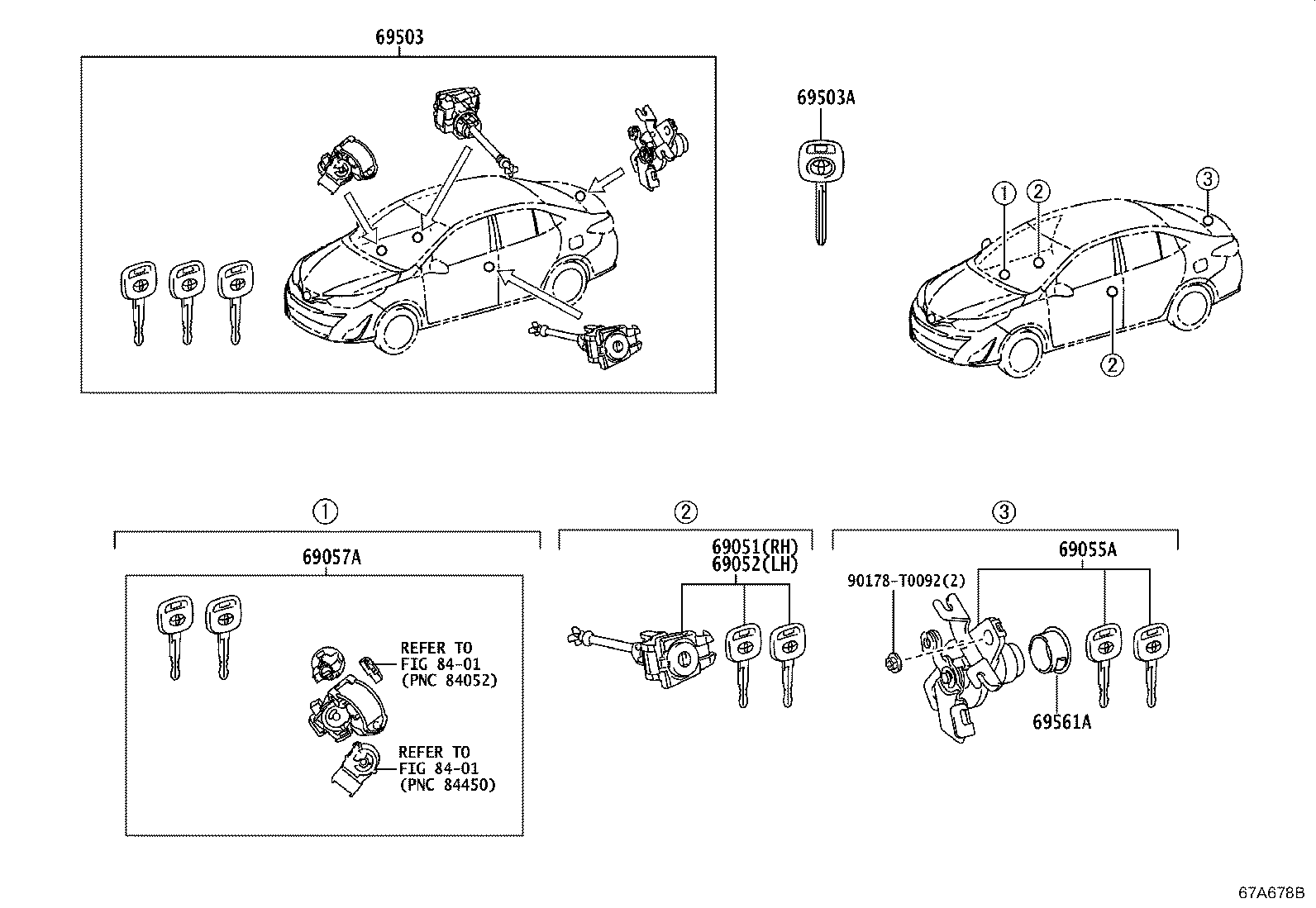

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-0D360 |
NSP150 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0D340 |
NSP150 |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-0D380 |
NSP150 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0D370 |
NSP150 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0DG80 |
NSP150 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-0K140 |
NSP150 MASTER KEY,W(*68),(L) |
1 | ||
| 90999-00199 |
NSP150 MASTER KEY,W(*68),(J) |
1 | ||
| 69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER | ||||
| 69561-0K901 |
NSP150 |
1 | ||
| Common parts | ||||
| 90178-T0092 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1912- )R

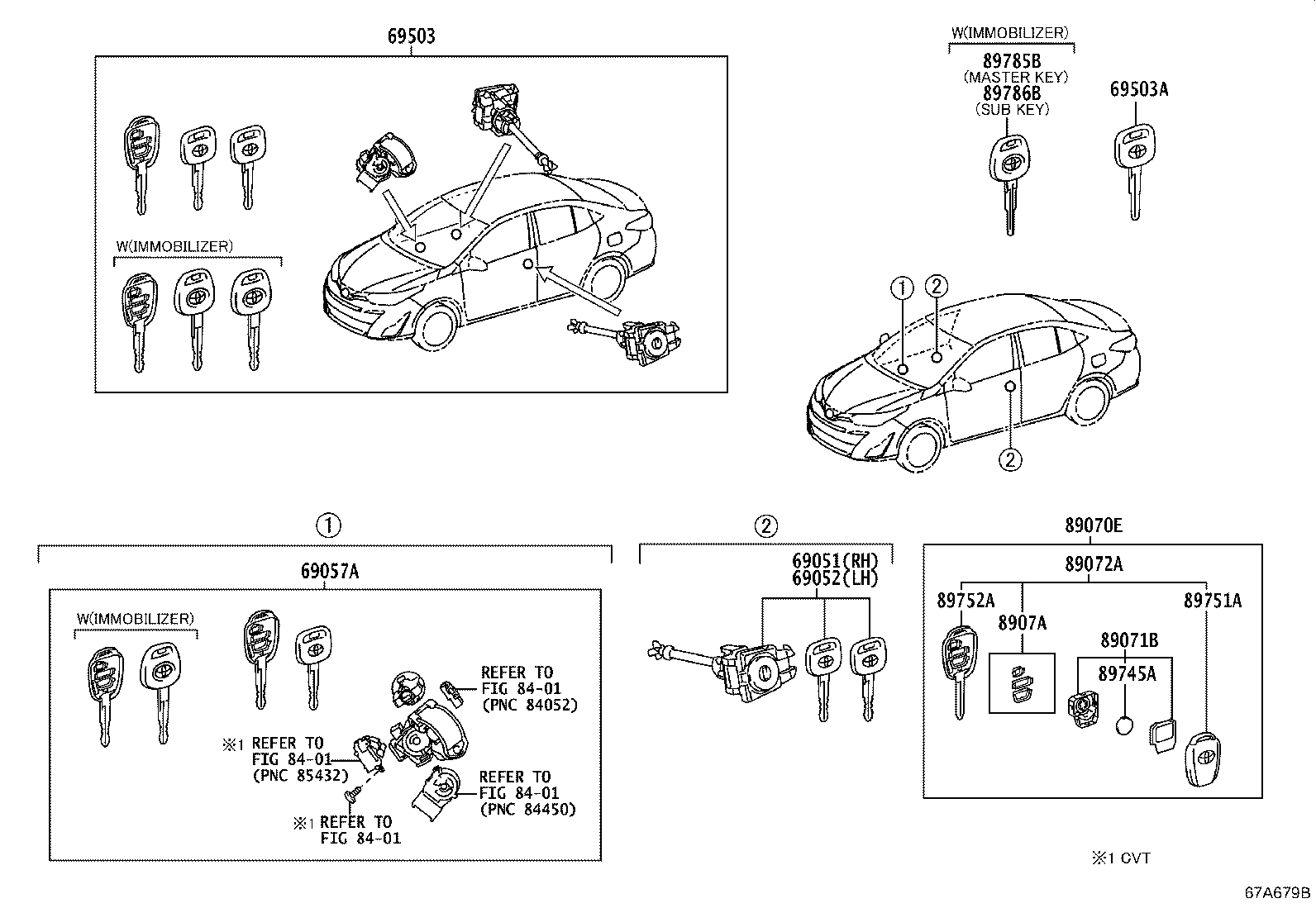

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-0D360 |
NSP150 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0D340 |
NSP150 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0D370 |
NSP150 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-0DG80 |
NSP150 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-0K140 |
NSP150 MASTER KEY,W(*68),(L) |
1 | ||
| 90999-00199 |
NSP150 MASTER KEY,W(*68),(J) |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
