NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

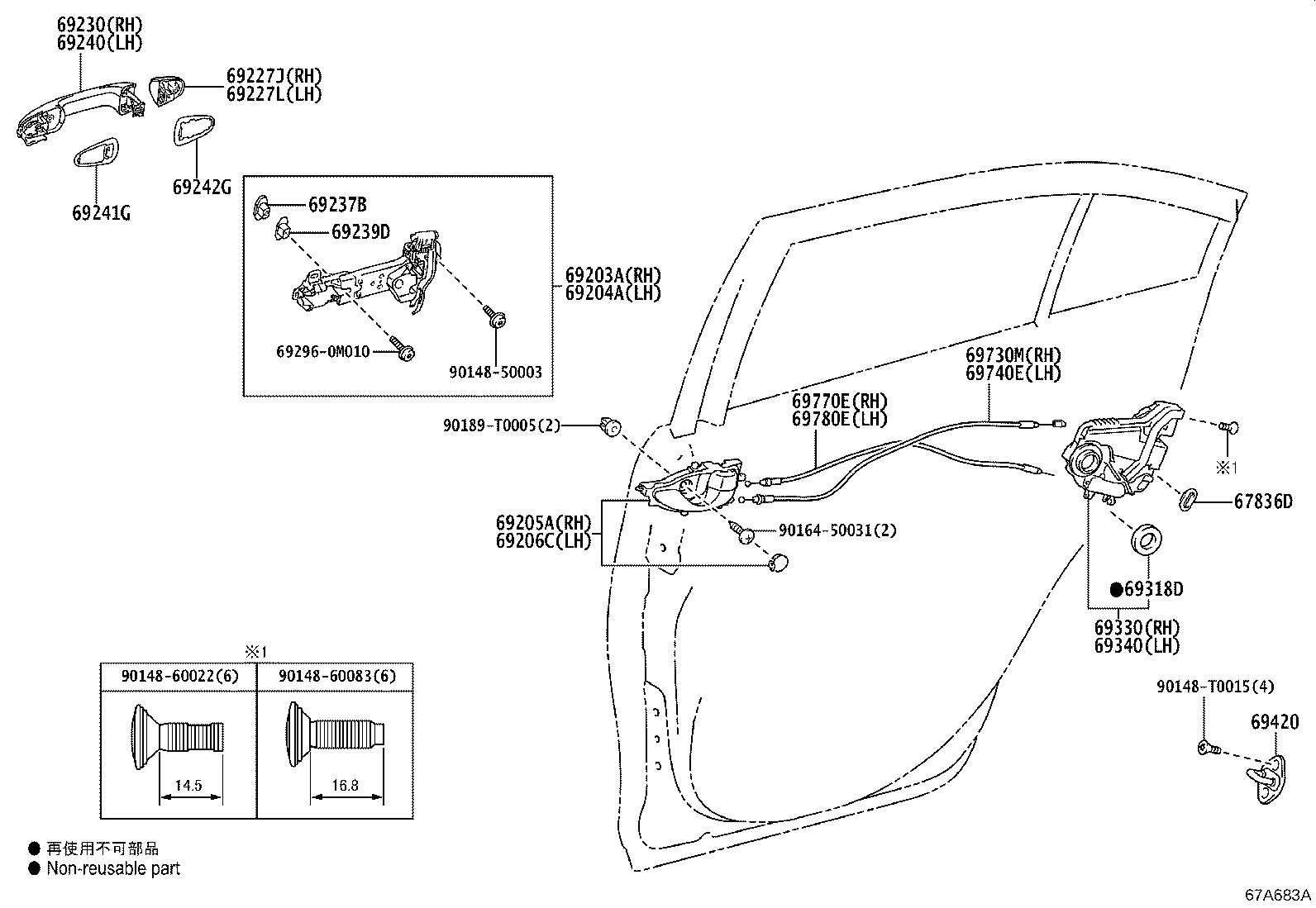

Click highlighted areas on diagram

diagram 67836D 69203A 69204A 69205A 69206C 69227J 69227L 69230 69237B 69239D 69240 69241G 69242G 692960M010 69318D 69330 69340 69420 69730M 69740E 69770E 69780E 9014850003 9014860022 9014860083 90148T0015 9016450031 90189T0005
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-02030

NSP150

 2
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-0D210

NSP150

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-0D210

NSP150

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-0D330C0

NSP150

BLACK,TRIM2#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-0D330C0

NSP150

BLACK,TRIM2#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-0K210

NSP150

BLACK MATERIAL

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69227-0K210

NSP150

BLACK MATERIAL

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-0K210

NSP150

NO PAINT REQ.

 1
69237B - NUT, REAR DOOR HANDLE
69237-0K040

NSP150

 2
69239D - BUSH, REAR DOOR HANDLE
69239-0K080

NSP150

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69210-0K210

NSP150

NO PAINT REQ.

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-0K041

NSP150

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-0K030

NSP150

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

NSP150

 2
69330 - LOCK ASSY, REAR DOOR, RH
69050-0D210

NSP150

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-0D210

NSP150

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0D070

NSP150

 2
69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER
69730-0D270

NSP150

 1
69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER
69730-0D270

NSP150

 1
69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K
69770-0D200

NSP150

 1
69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K
69770-0D200

NSP150

 1
Common parts
69296-0M010
90148-50003
90148-60022
90148-60083
90148-T0015
90164-50031
90189-T0005
