NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

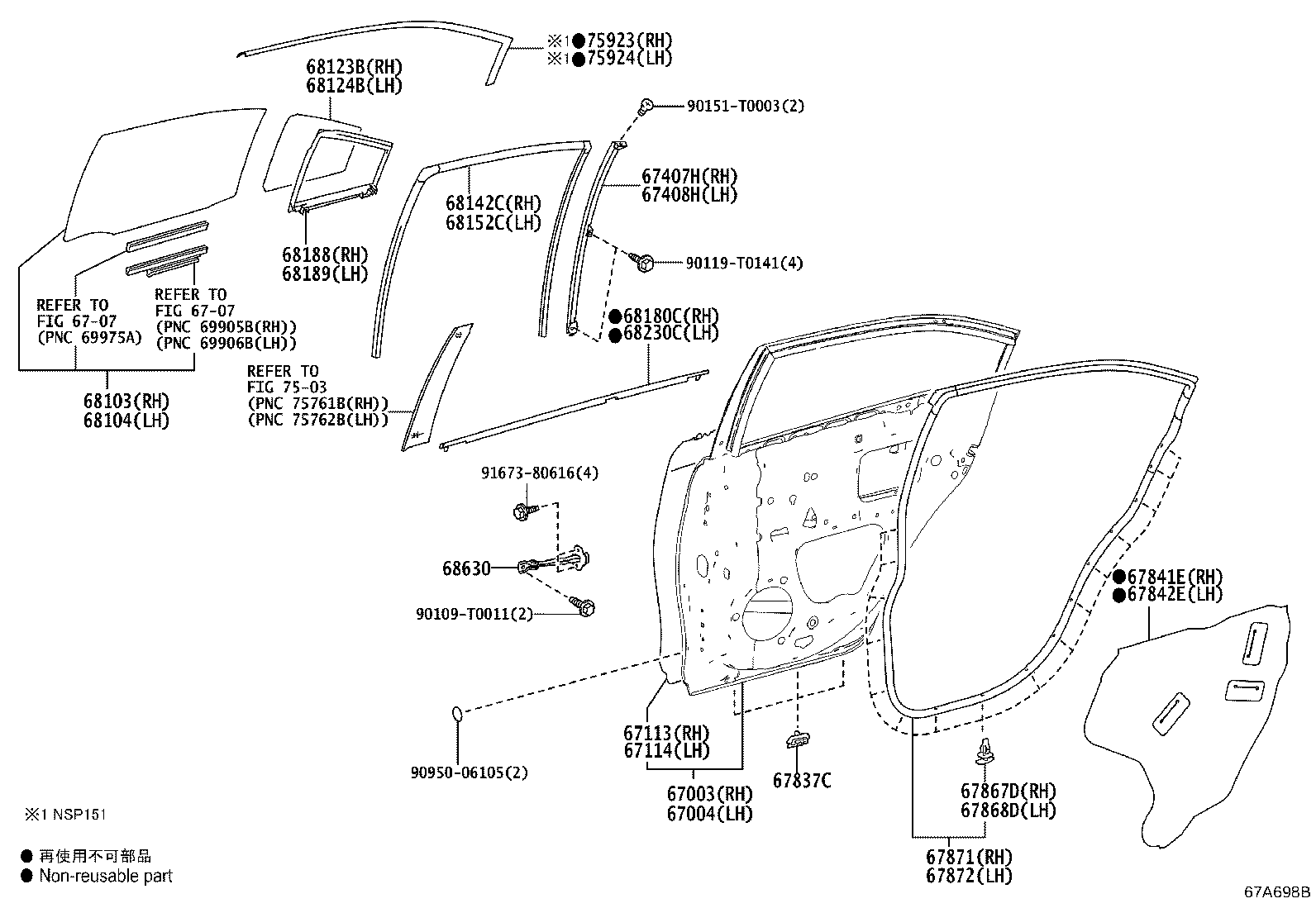

ILLUST NO. 1 OF 2(1912- )
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-0D461 |
NSP15# |
1 | ||
| 67003-0D650 |
NSP150 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-0D461 |
NSP15# |
1 | ||
| 67004-0D650 |
NSP150 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-K0030 |
NSP15# |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-K0030 |
NSP15# |
1 | ||
| 67407H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH | ||||
| 67407-0D270 |
NSP150 |
1 | ||
| 67408H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH | ||||
| 67408-0D270 |
NSP150 |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-0K090 |
NSP150 |
6 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-0D590 |
NSP150 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-0D360 |
NSP150 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NSP150 |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NSP150 |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0D230 |
NSP150 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0D230 |
NSP150 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68130-0D441 |
NSP150 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68140-0D441 |
NSP150 |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-0D301 |
NSP150 |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-0D301 |
NSP150 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-0D280 |
NSP150 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-0D240 |
NSP150 |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-0D431 |
NSP150 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-0D220 |
NSP150 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-0D220 |
NSP150 |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-0D431 |
NSP150 |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-0D170 |
NSP150 |
2 | ||
| Common parts | ||||
| 90109-T0011 | ||||
| 90119-T0141 | ||||
| 90151-T0003 | ||||
| 90950-06105 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6707 | ||||
| 7503 | ||||

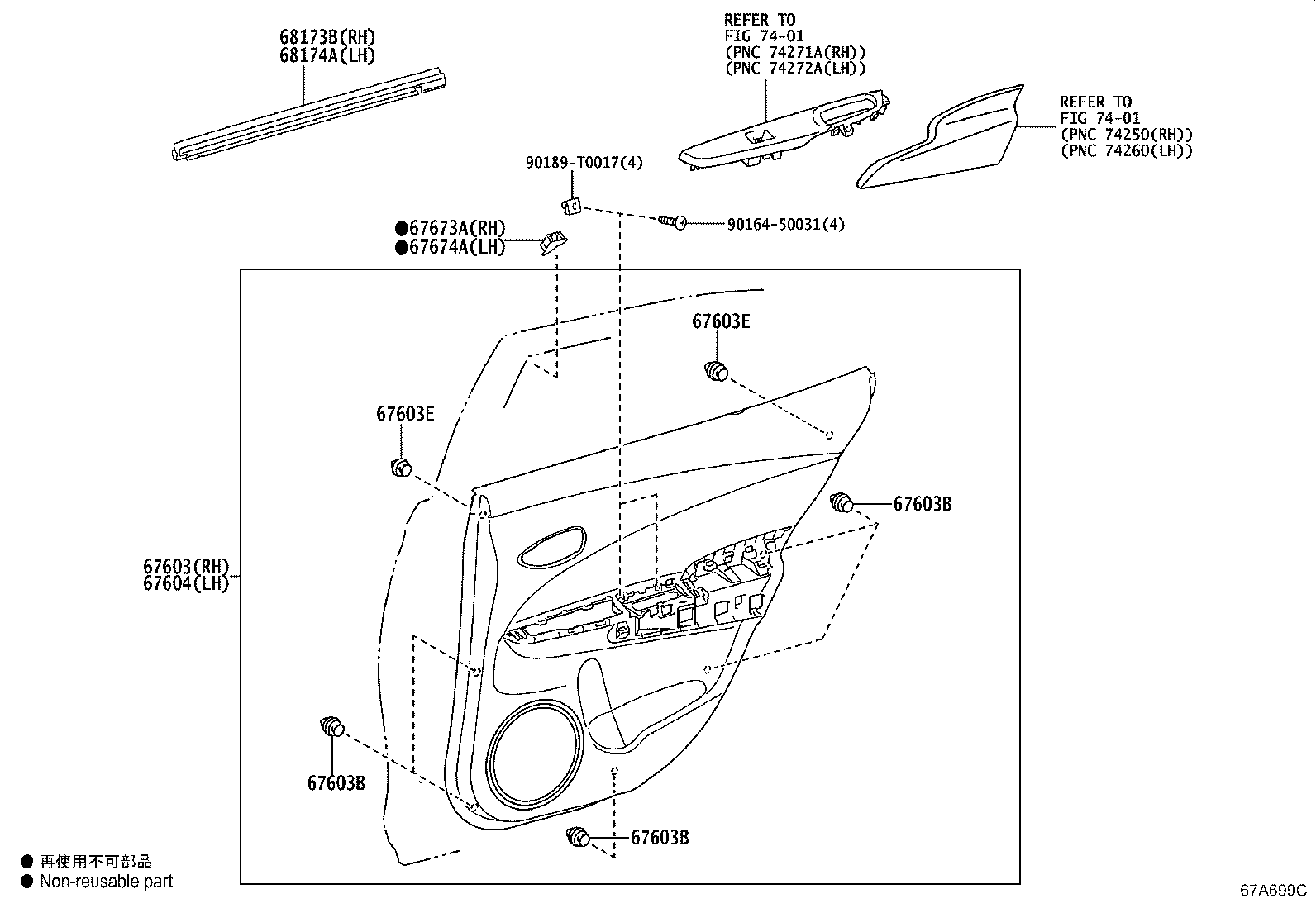

ILLUST NO. 2 OF 2(1912- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0DL80C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
NSP150 |
10 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
NSP150 |
10 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0019 |
NSP150 |
10 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0021 |
NSP150 |
4 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-T0021 |
NSP150 |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0DL80C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-0D040 |
NSP150 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-0D040 |
NSP150 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-0D261 |
NSP150 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-0D261 |
NSP150 |
1 | ||
| Common parts | ||||
| 90164-50031 | ||||
| 90189-T0017 | ||||
| Linked diagrams | ||||
| 7401 | ||||
