NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

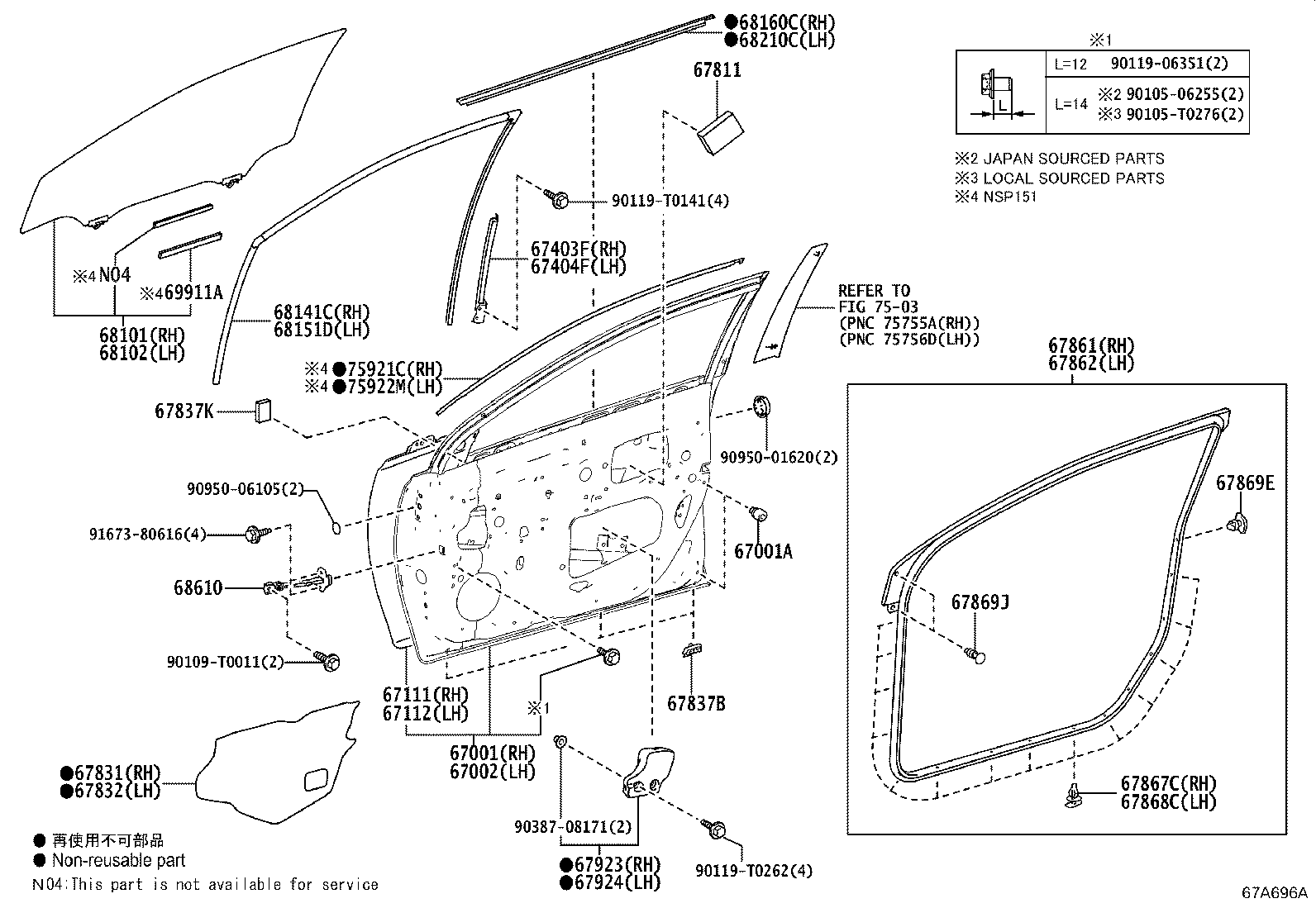

ILLUST NO. 1 OF 2(1912- )
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-0D430 |
NSP150 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09124 |
NSP150 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-0D430 |
NSP150 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-K0030 |
NSP150 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-K0030 |
NSP150 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-0D130 |
NSP150 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-0D130 |
NSP150 |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-0D010 |
NSP150 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-0D550 |
NSP150 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-0D430 |
NSP150 |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-0K090 |
NSP150 |
6 | ||
| 67837K - SEAL, FRONT DOOR VENT | ||||
| 67481-0D030 |
NSP150 |
2 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-0D150 |
NSP150 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-0D150 |
NSP150 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NSP150 |
14 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
NSP150 |
14 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-04034 |
NSP150 |
2 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
NSP150 |
4 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-0D160 |
NSP150 |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-0D170 |
NSP150 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-0D241 |
NSP150 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-0D241 |
NSP150 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-0D190 |
NSP150 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-0D180 |
NSP150 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-0D200 |
NSP150 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-0D200 |
NSP150 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-0D131 |
NSP150 |
2 | ||
| Common parts | ||||
| 90105-06255 | ||||
| 90105-T0276 | ||||
| 90109-T0011 | ||||
| 90119-06351 | ||||
| 90119-T0141 | ||||
| 90119-T0262 | ||||
| 90387-08171 | ||||
| 90950-01620 | ||||
| 90950-06105 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7503 | ||||

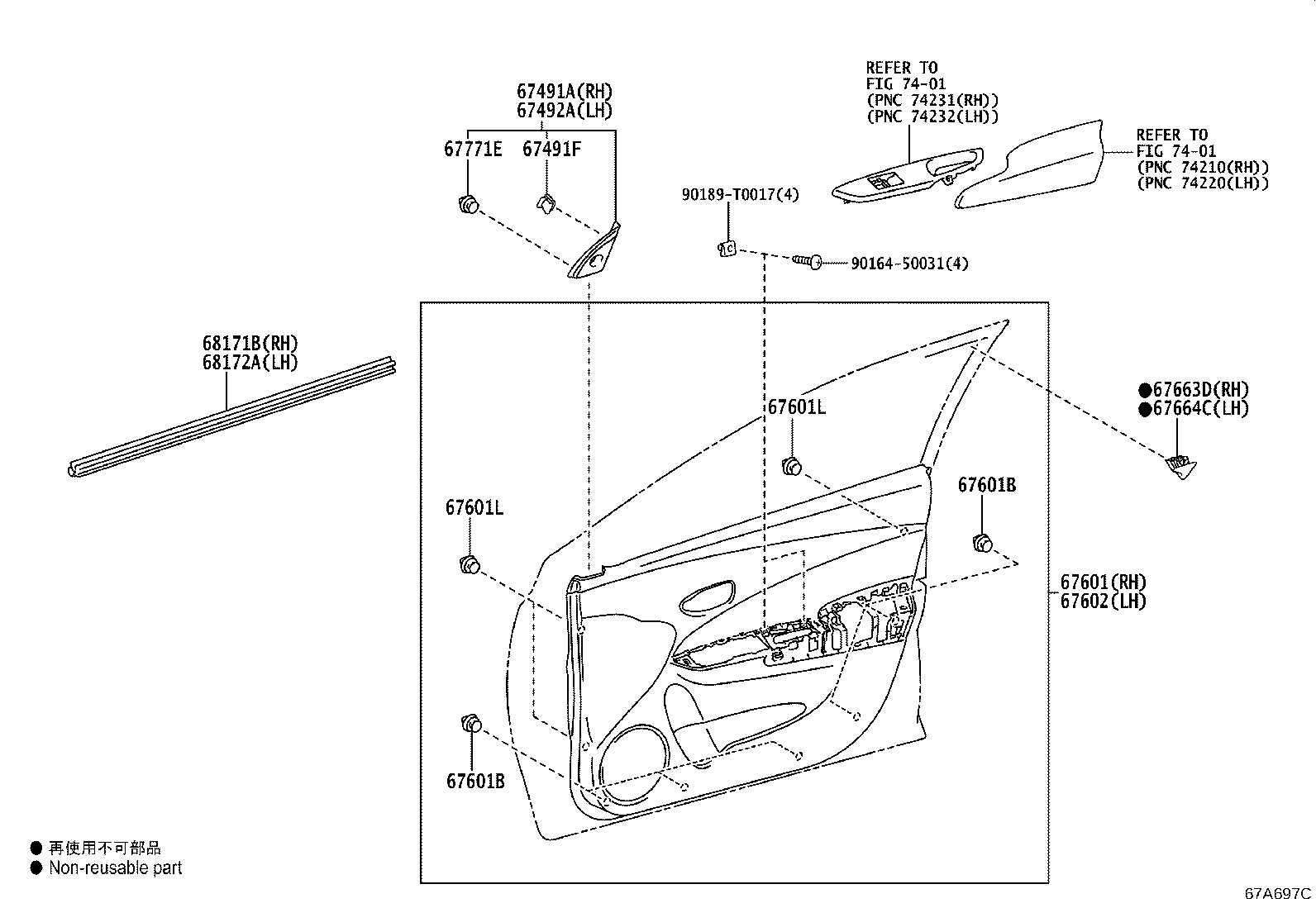

ILLUST NO. 2 OF 2(1912- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0D380 |
NSP150 |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 90468-04181 |
NSP150 |
2 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0D380 |
NSP150 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0DS91C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-T0019 |
NSP150 |
10 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-T0019 |
NSP150 |
10 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-T0021 |
NSP150 |
6 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-T0021 |
NSP150 |
6 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0DS91C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-0D010 |
NSP150 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-0D010 |
NSP150 |
1 | ||
| 67771E - RETAINER(FOR FRONT DOOR FRAME BRACKET) | ||||
| 67771-12060 |
NSP150 |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-0D321 |
NSP150 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-0D321 |
NSP150 |
1 | ||
| Common parts | ||||
| 90164-50031 | ||||
| 90189-T0017 | ||||
| Linked diagrams | ||||
| 7401 | ||||
