NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

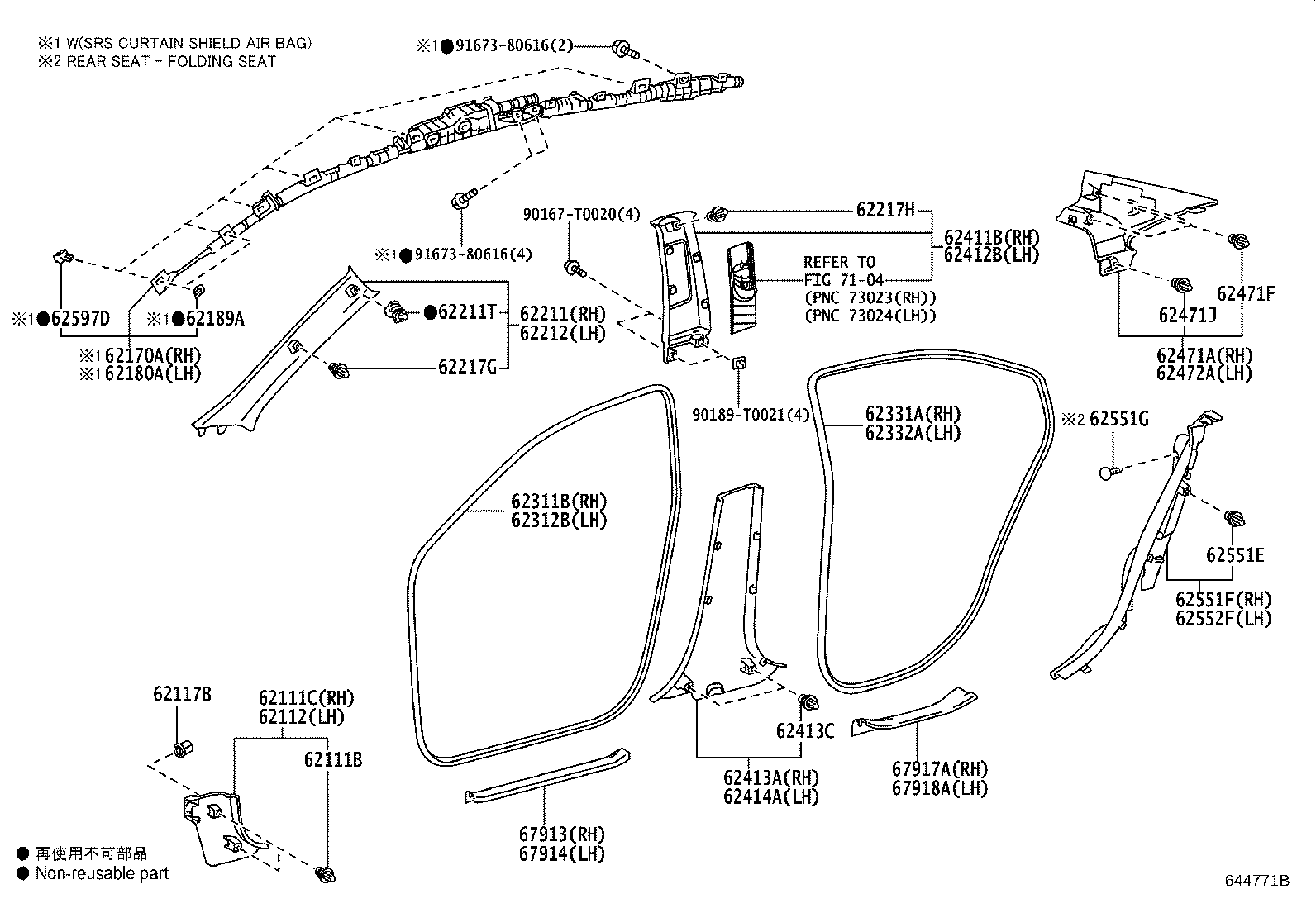

Click highlighted areas on diagram

diagram 62111B 62111C 62112 62117B 62170A 62180A 62189A 62211 62211T 62212 62217G 62217H 62311B 62312B 62331A 62332A 62411B 62412B 62413A 62413C 62414A 62471A 62471F 62471J 62472A 62551E 62551F 62551G 62552F 62597D 67913 67914 67917A 67918A 7104 90167T0020 90189T0021 9167380616 9167380616
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-T0021

NSP150

 4
62111C - BOARD, COWL SIDE TRIM, RH
62111-0D370C0

NSP150

BLACK,TRIM2#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-0D370C0

NSP150

BLACK,TRIM2#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-06147

NSP150

 2
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-0D080

NSP150

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 1
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-0D080

NSP150

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 1
62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP
62189-42010

NSP150

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 4
62211 - GARNISH, FRONT PILLAR, RH
62211-0D800B0

NSP150

GRAY,TRIM2#

 1
62211-0D830B0

NSP150

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),GRAY,TRIM2#

 1
62211T - CLIP(FOR FRONT PILLAR GARNISH)
62217-52120

NSP150

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 2
90467-T0021

NSP150

 2
62212 - GARNISH, FRONT PILLAR, LH
62212-0D800B0

NSP150

GRAY,TRIM2#

 1
62212-0D830B0

NSP150

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),GRAY,TRIM2#

 1
62217G - CLIP, FRONT PILLAR GARNISH
90467-T0021

NSP150

 2
62217H - CLIP, CENTER PILLER GARNISH
90467-10188

NSP150

 2
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-0D250

NSP150

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-0D220

NSP150

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-0D150

NSP150

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-0D130

NSP150

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62410-0D020B0

NSP150

GRAY,TRIM2#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62420-0D020B0

NSP150

GRAY,TRIM2#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-0D370C0

NSP150

BLACK,TRIM2#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-T0021

NSP150

 4
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-0D370C0

NSP150

BLACK,TRIM2#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-0D730B0

NSP150

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),GRAY,TRIM2#

 1
62471-0D720B0

NSP150

GRAY,TRIM2#

 1
62471-0DB60B0

NSP150

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),GRAY,TRIM2#

 1
62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
90467-T0021

NSP150

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 3
90467-T0021

NSP150

 6
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-10167

NSP150

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 1
90467-10167

NSP150

 2
62472A - GARNISH, ROOF SIDE, INNER LH
62472-0D730B0

NSP150

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),GRAY,TRIM2#

 1
62472-0DD00B0

NSP150

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),GRAY,TRIM2#

 1
62472-0D720B0

NSP150

GRAY,TRIM2#

 1
62551E - CLIP(FOR REAR SEAT SIDE GARNISH)
90467-10188

NSP150

 2
62551F - GARNISH, REAR SEAT SIDE, RH
62551-0D380C0

NSP150

BLACK,TRIM2#

 1
62552F - GARNISH, REAR SEAT SIDE, LH
62552-0D380C0

NSP150

BLACK,TRIM2#

 1
62597D - CLIP
90467-18017

NSP150

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 12
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-0D330C0

NSP150

BLACK,TRIM2#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-0D320C0

NSP150

BLACK,TRIM2#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-0D260C0

NSP150

BLACK,TRIM2#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-0D260C0

NSP150

BLACK,TRIM2#

 1
Common parts
90167-T0020
90189-T0021
91673-80616
Linked diagrams
7104
