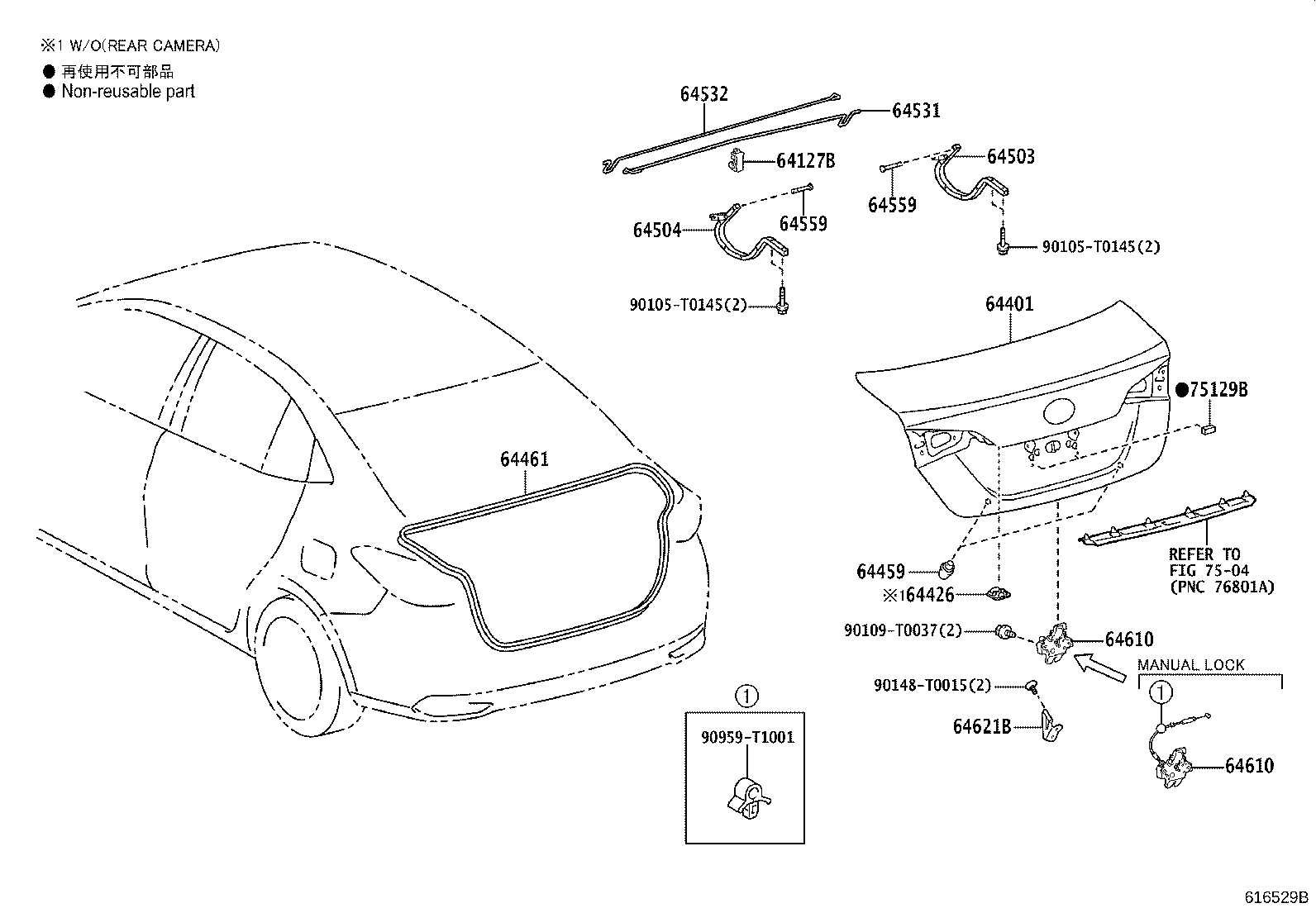

Toyota Limo/vios NSP150 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-0D060	NSP150	12/2019 - 09/2021	1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-0D340	NSP150	12/2019 - 09/2021	1
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09069	NSP150	12/2019 - 09/2021	2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-0D180	NSP150	12/2019 - 09/2021	1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-0D090	NSP150	12/2019 - 09/2021	1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-0D090	NSP150	12/2019 - 09/2021	1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-0D300	NSP150	12/2019 - 09/2021	1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-0D290	NSP150	12/2019 - 09/2021	1
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040	NSP150	12/2019 - 09/2021	2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040	NSP150	12/2019 - 09/2021	2
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-0D130	NSP150	12/2019 - 09/2021	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-0D130	NSP150	12/2019 - 09/2021	1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-06080	NSP150	12/2019 - 09/2021	1
75129B - CUSHION, REAR LICENCE PLATE
75129-0D030	NSP15#	12/2019 - 03/2021	2
75129-0D080	NSP150	03/2021 - 09/2021	2
Common parts
90105-T0145
90109-T0037
90148-T0015
90959-T1001
Linked diagrams
7504

NSP150L-EEMDKU (2019)

Part #	Description	Period	Qty

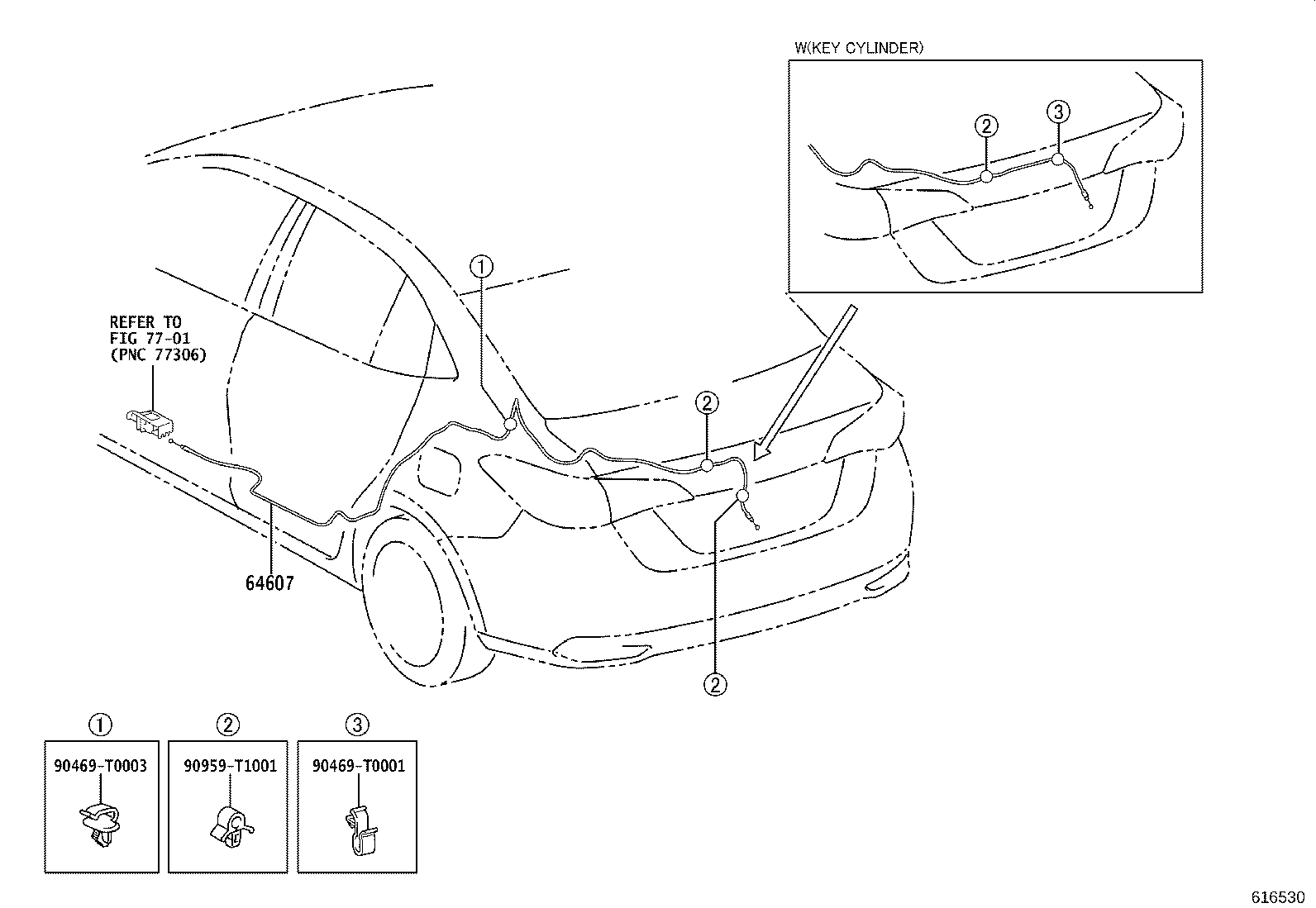

64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-0D420	NSP150	12/2019 - 09/2021	1
Common parts
90469-T0001
90469-T0003
90959-T1001
Linked diagrams
7701
