NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

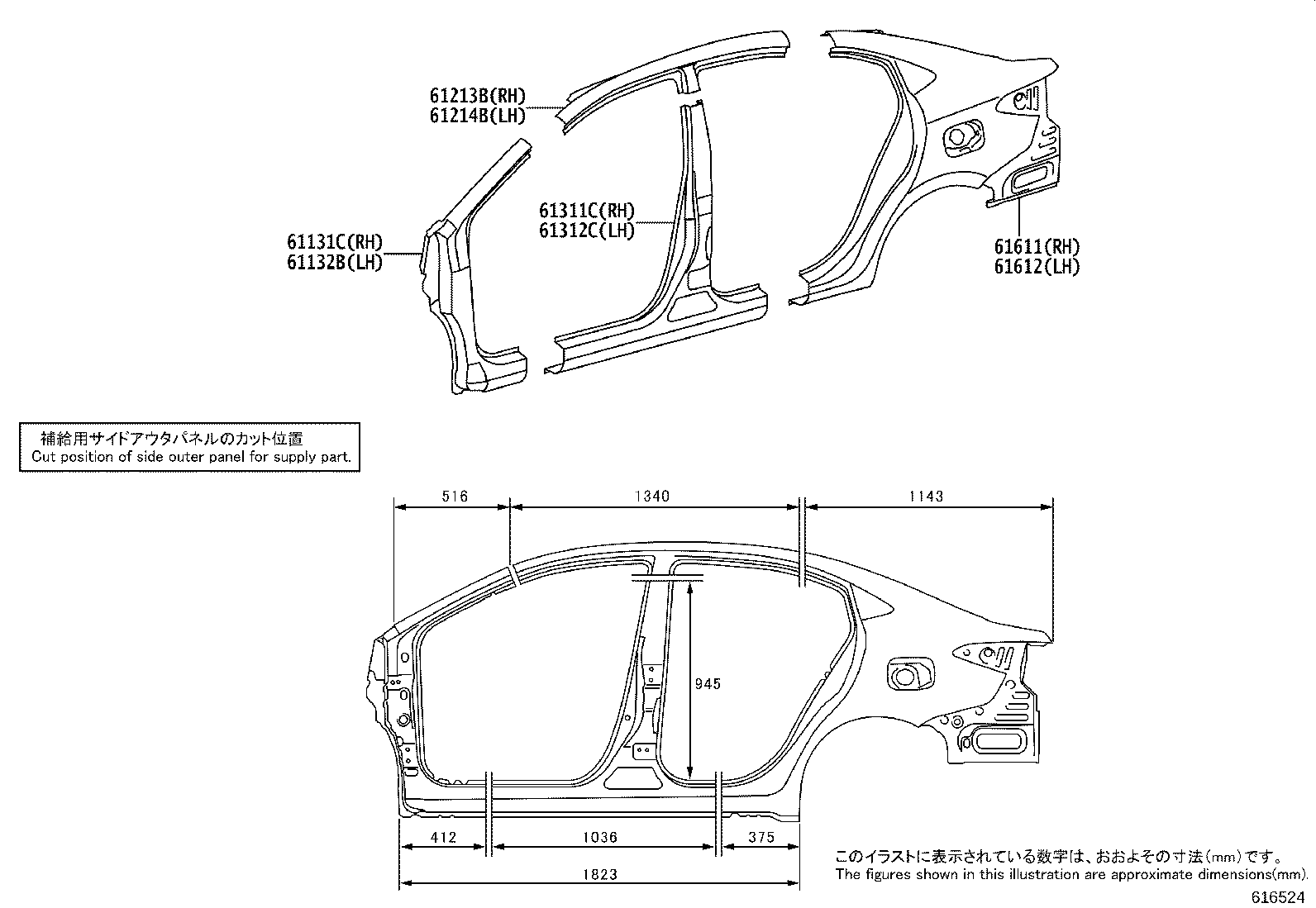

ILLUST NO. 1 OF 3(1912- )

Click highlighted areas on diagram

OUTER PANEL

diagram 61131C 61132B 61213B 61214B 61311C 61312C 61611 61612
Part # Description Qty Price
61131C - PILLAR, FRONT BODY, OUTER RH
61131-0D200

NSP150

 1
61132B - PILLAR, FRONT BODY, OUTER LH
61132-0D200

NSP150

 1
61213B - RAIL, ROOF SIDE, OUTER NO.2 RH
61213-0D100

NSP150

 1
61214B - RAIL, ROOF SIDE, OUTER NO.2 LH
61214-0D100

NSP150

 1
61311C - PANEL, REAR BODY FRONT OUTSIDE, RH
61311-0D130

NSP150

 1
61312C - PANEL, REAR BODY FRONT OUTSIDE, LH
61312-0D130

NSP150

 1
61611 - PANEL, QUARTER, RH
61601-0D260

NSP150

 1
61612 - PANEL, QUARTER, LH
61602-0D410

NSP150

 1

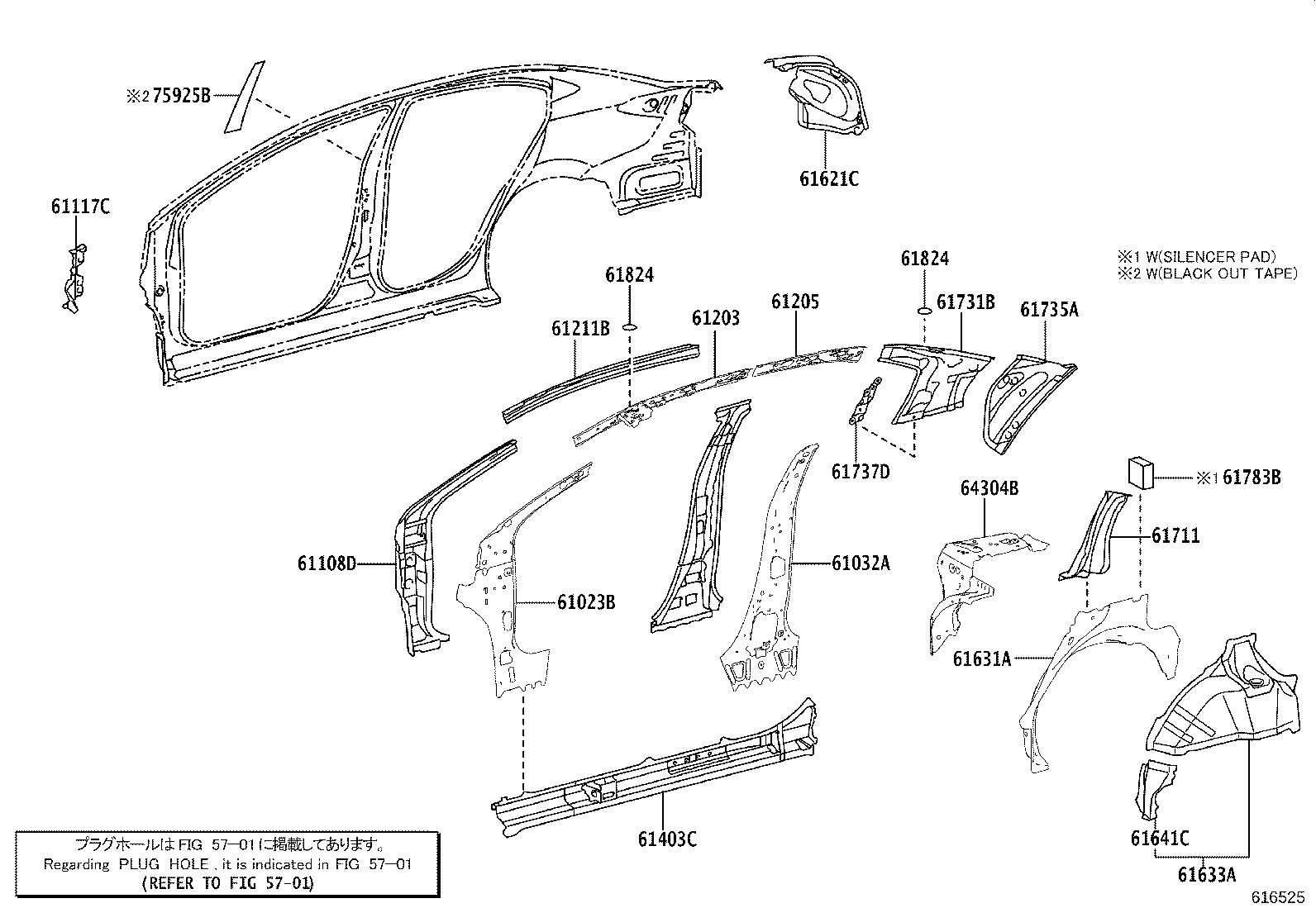

ILLUST NO. 2 OF 3(1912- )

Click highlighted areas on diagram

INNER PANEL, RH

diagram 5701 61023B 61032A 61108D 61117C 61203 61205 61211B 61403C 61621C 61631A 61633A 61641C 61711 61731B 61735A 61737D 61783B 61824 61824 64304B 75925B
Part # Description Qty Price
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-0D270

NSP150

 1
61032A - PILLAR SUB-ASSY, NO.1 INNER, RH
61032-0D210

NSP150

 1
61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61108-0D120

NSP150

 1
61117C - GUSSET, SIDE PANEL TO COWL, RH
61117-0D120

NSP150

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61203-0D030

NSP150

 1
61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH
61205-0D010

NSP150

 1
61211B - RAIL, ROOF SIDE, OUTER REAR RH
61211-0D240

NSP150

 1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-0D350

NSP150

 1
61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61063-0D090

NSP150

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-K0010

NSP150

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61605-0D070

NSP150

 1
61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH
61641-0D180

NSP150

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-K0030

NSP150

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-K0060

NSP150

 1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-K0020

NSP150

 1
61737D - REINFORCEMENT, ROOF SIDE, INNER RH
61737-0D190

NSP150

 1
61824 - PLATE, NOISE CONTROL, NO.1
61824-0D020

NSP15#

 2
61825-0D060

NSP150

 2
61824 - PLATE, NOISE CONTROL, NO.1
61824-0D020

NSP15#

 2
61825-0D060

NSP150

 2
64304B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
64304-0D170

NSP150

 1
Linked diagrams
5701

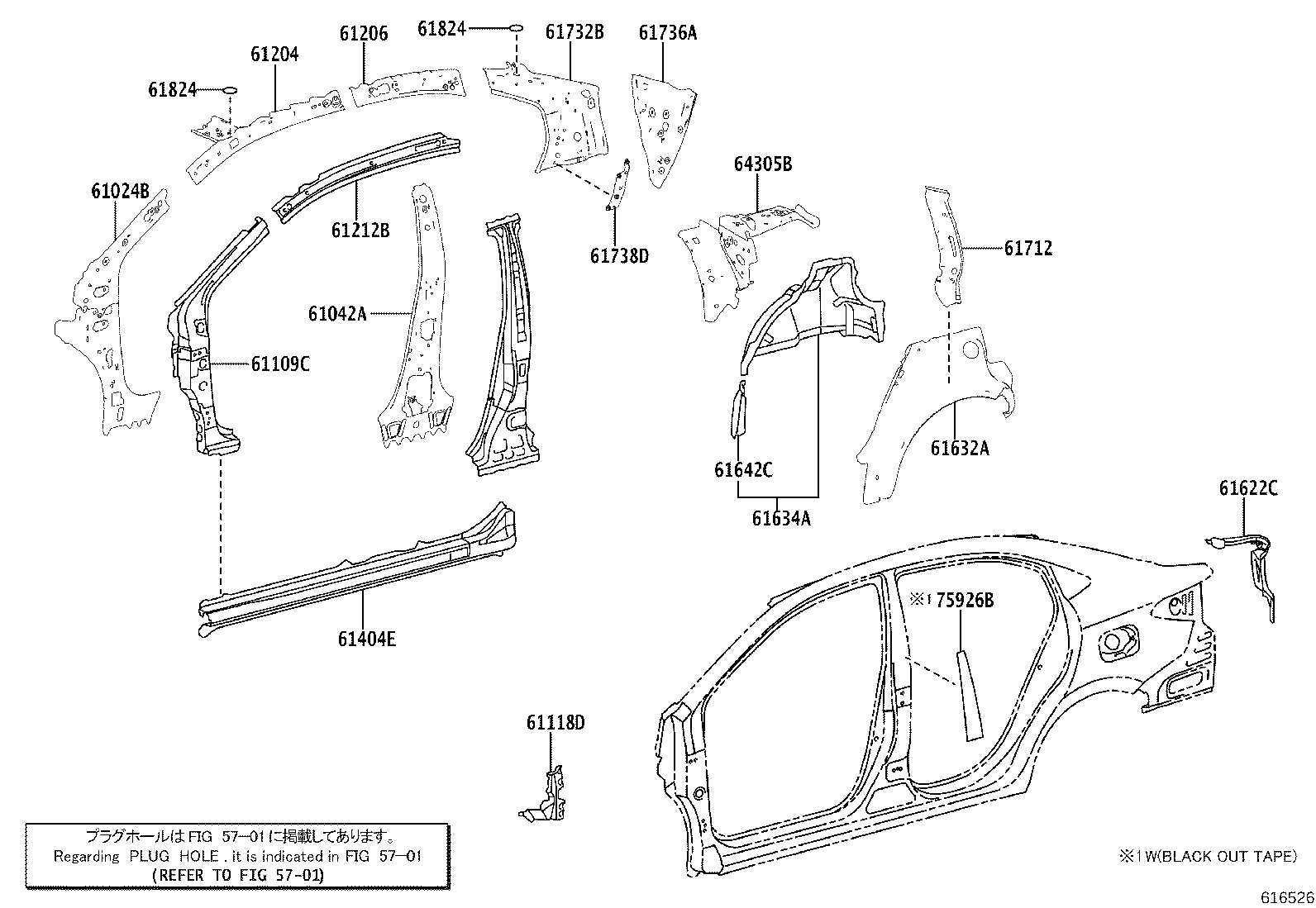

ILLUST NO. 3 OF 3(1912- )

Click highlighted areas on diagram

INNER PANEL, LH

diagram 5701 61024B 61042A 61109C 61118D 61204 61206 61212B 61404E 61622C 61632A 61634A 61642C 61712 61732B 61736A 61738D 61824 61824 64305B 75926B
Part # Description Qty Price
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-0D270

NSP150

 1
61042A - PILLAR SUB-ASSY, NO.1 INNER, LH
61042-0D210

NSP150

 1
61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH
61109-0D120

NSP150

 1
61118D - GUSSET, SIDE PANEL TO COWL, LH
61118-0D120

NSP150

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61204-0D030

NSP150

 1
61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH
61206-0D010

NSP150

 1
61212B - RAIL, ROOF SIDE, OUTER REAR LH
61212-0D230

NSP150

 1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-0D350

NSP150

 1
61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61064-0D090

NSP150

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-K0010

NSP150

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61606-0D070

NSP150

 1
61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH
61642-0D180

NSP150

 1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-K0030

NSP150

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-K0060

NSP150

 1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-K0020

NSP150

 1
61738D - REINFORCEMENT, ROOF SIDE, INNER LH
61738-0D190

NSP150

 1
61824 - PLATE, NOISE CONTROL, NO.1
61824-0D020

NSP15#

 2
61825-0D060

NSP150

 2
61824 - PLATE, NOISE CONTROL, NO.1
61824-0D020

NSP15#

 2
61825-0D060

NSP150

 2
64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH
64305-0D170

NSP150

 1
Linked diagrams
5701
