NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

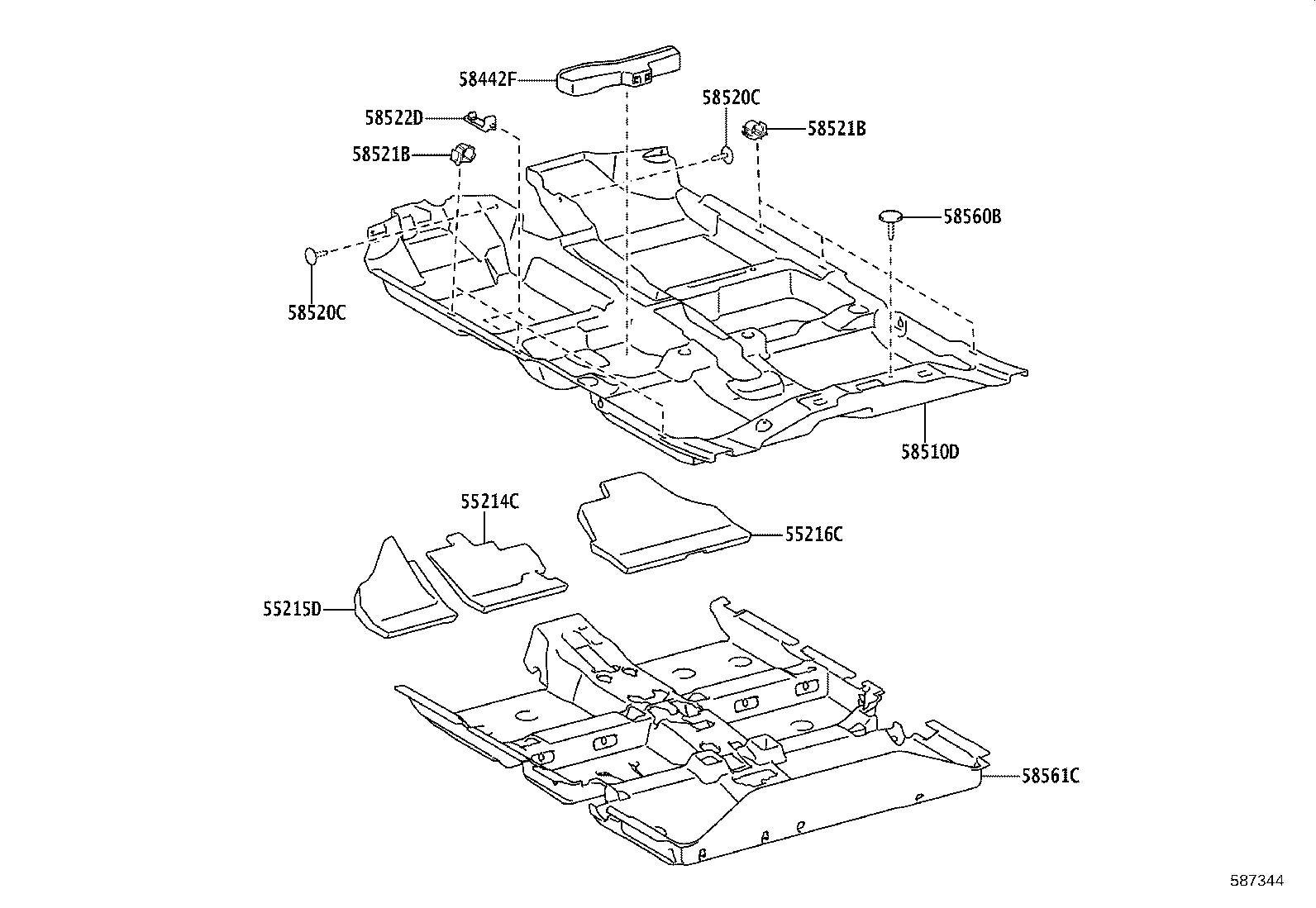

Click highlighted areas on diagram

diagram 55214C 55215D 55216C 58442F 58510D 58520C 58520C 58521B 58521B 58522D 58560B 58561C
Part # Description Qty Price
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-0D270

NSP150

 1
55214-0D210

NSP15#

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-0D250

NSP150

 1
55215-0D170

NSP15#

 1
55216C - PAD, DASH PANEL INSULATOR, NO.4
55216-0D080

NSP15#

 1
55216-0D170

NSP150

 1
58442F - COVER, JACK
58442-0D240

NSP150

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-0DF71C1

NSP150

BLACK,TRIM2#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-T0004C4

NSP150

BLACK,TRIM2#

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-T0004C4

NSP150

BLACK,TRIM2#

 2
58521B - HOOK, FLOOR CARPET
58521-52050

NSP150

 6
58521B - HOOK, FLOOR CARPET
58521-52050

NSP150

 6
58522D - HOOK, FLOOR CARPET, NO.2
58522-52030

NSP150

 2
58560B - CLIP(FOR FLOOR CARPET, REAR)
90467-0704923

NSP150

BLACK,TRIM2#

 1
58561C - SILENCER, FRONT FLOOR, NO.1
58561-0D430

NSP150

 1
