NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

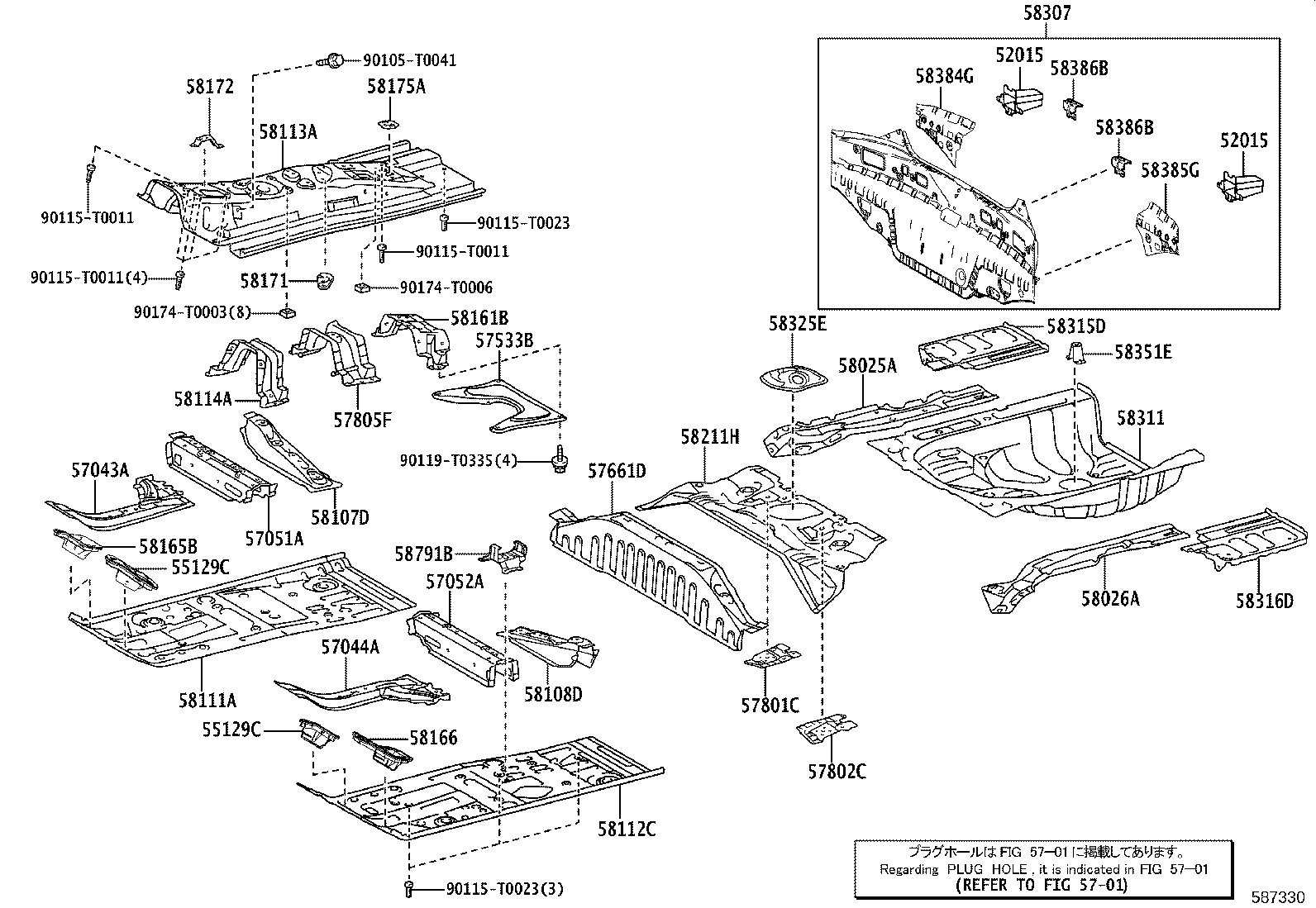

ILLUST NO. 1 OF 1(1912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015 - ARM SUB-ASSY, REAR BUMPER | ||||
| 52015-0D130 |
NSP150 |
2 | ||
| 52015 - ARM SUB-ASSY, REAR BUMPER | ||||
| 52015-0D130 |
NSP150 |
2 | ||
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55139-0D030 |
NSP150 LH |
1 | ||
| 55129-0D110 |
NSP150 RH |
1 | ||
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55139-0D030 |
NSP150 LH |
1 | ||
| 55129-0D110 |
NSP150 RH |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-0D020 |
NSP150 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-0D050 |
NSP150 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-0D130 |
NSP150 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-0D120 |
NSP150 |
1 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-0D140 |
NSP150 |
1 | ||
| 57661D - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 57661-0D170 |
NSP150 |
1 | ||
| 57801C - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 RH | ||||
| 57801-0D180 |
NSP150 |
1 | ||
| 57802C - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 LH | ||||
| 57802-0D170 |
NSP150 |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-0D100 |
NSP150 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-0D090 |
NSP150 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58026-0D130 |
NSP150 |
1 | ||
| 58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH | ||||
| 58107-0D160 |
NSP150 |
1 | ||
| 58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||||
| 58108-0D130 |
NSP150 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-52170 |
NSP150 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-52904 |
NSP150 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-52935 |
NSP150 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-0D200 |
NSP150 |
1 | ||
| 58114-0D060 |
NSP15# |
1 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-0D100 |
NSP150 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-0D010 |
NSP150 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-0D010 |
NSP150 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-0D120 |
NSP150 |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-0D060 |
NSP150 |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-0D010 |
NSP150 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-0D160 |
NSP150 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-0D480 |
NSP150 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-0D131 |
NSP150 |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-0D200 |
NSP150 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-0D230 |
NSP150 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-0D090 |
NSP150 |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-0D080 |
NSP150 |
1 | ||
| 58384G - GUSSET, LOWER BACK, UPPER RH | ||||
| 58384-0D300 |
NSP150 |
1 | ||
| 58385G - GUSSET, LOWER BACK, UPPER LH | ||||
| 58385-0D230 |
NSP150 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-0D170 |
NSP150 |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-0D170 |
NSP150 |
2 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-0D070 |
NSP150 |
1 | ||
| Common parts | ||||
| 90105-T0041 | ||||
| 90115-T0011 | ||||
| 90115-T0023 | ||||
| 90119-T0335 | ||||
| 90174-T0003 | ||||
| 90174-T0006 | ||||
| Linked diagrams | ||||
| 5701 | ||||
