NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

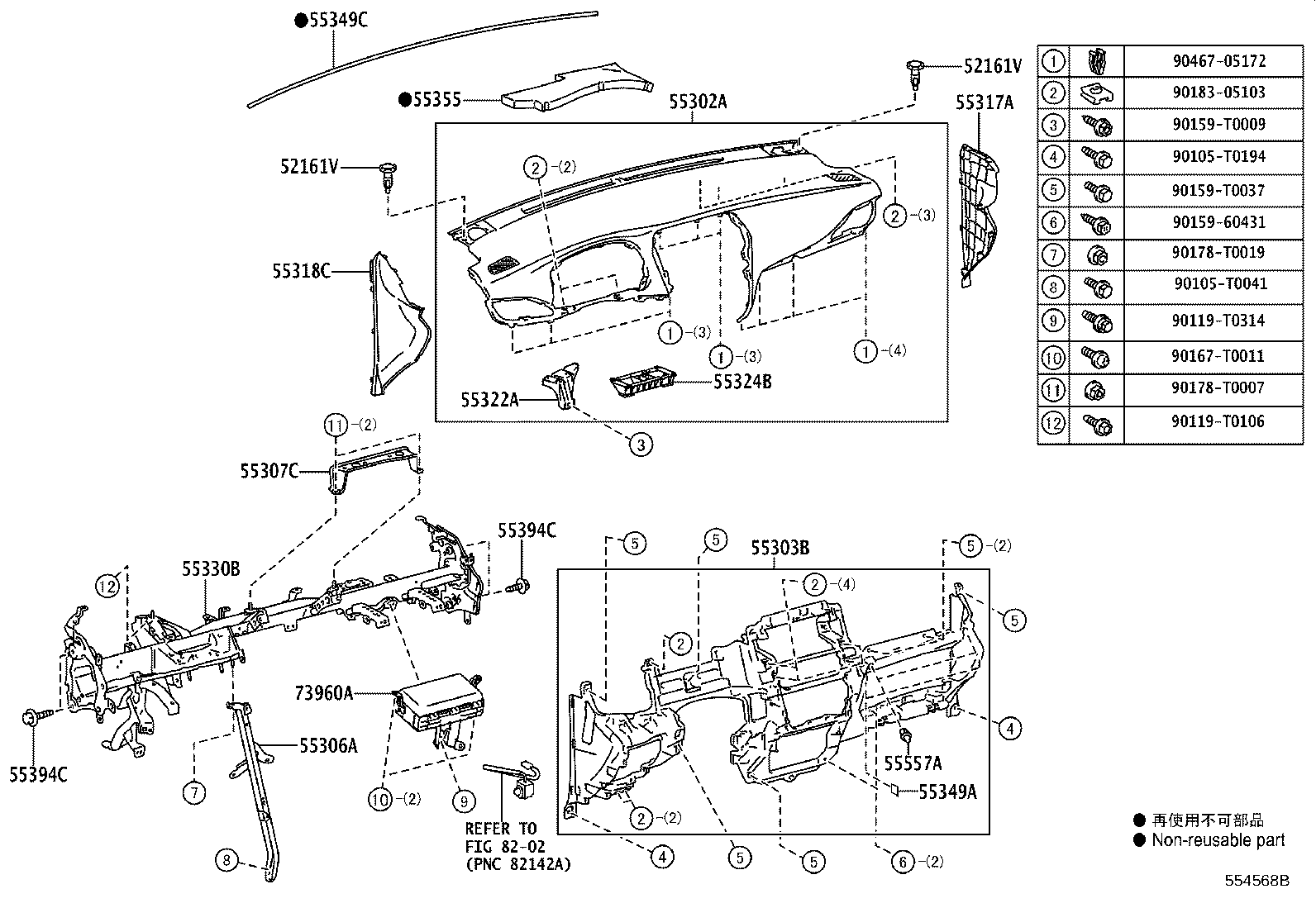

ILLUST NO. 1 OF 2(1912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-0K040 |
NSP150 |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-0K040 |
NSP150 |
2 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-0D250C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0D211C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D460 |
NSP150 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55308-0D080 |
NSP150 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55318-0D340C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55318-0D220C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55317-0D270C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55317-0D360C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 55322-0D230 |
NSP150 |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-0D230 |
NSP150 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-0DA00 |
NSP150 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D360 |
NSP150 |
2 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D240 |
NSP150 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0D400 |
NSP150 |
1 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-52010 |
NSP150 |
4 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-52010 |
NSP150 |
4 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
NSP150 |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0D170 |
NSP150 |
1 | ||
| Common parts | ||||
| 90105-T0041 | ||||
| 90105-T0194 | ||||
| 90119-T0106 | ||||
| 90119-T0314 | ||||
| 90159-60431 | ||||
| 90159-T0009 | ||||
| 90159-T0037 | ||||
| 90167-T0011 | ||||
| 90178-T0007 | ||||
| 90178-T0019 | ||||
| 90183-05103 | ||||
| 90467-05172 | ||||
| Linked diagrams | ||||
| 8202 | ||||

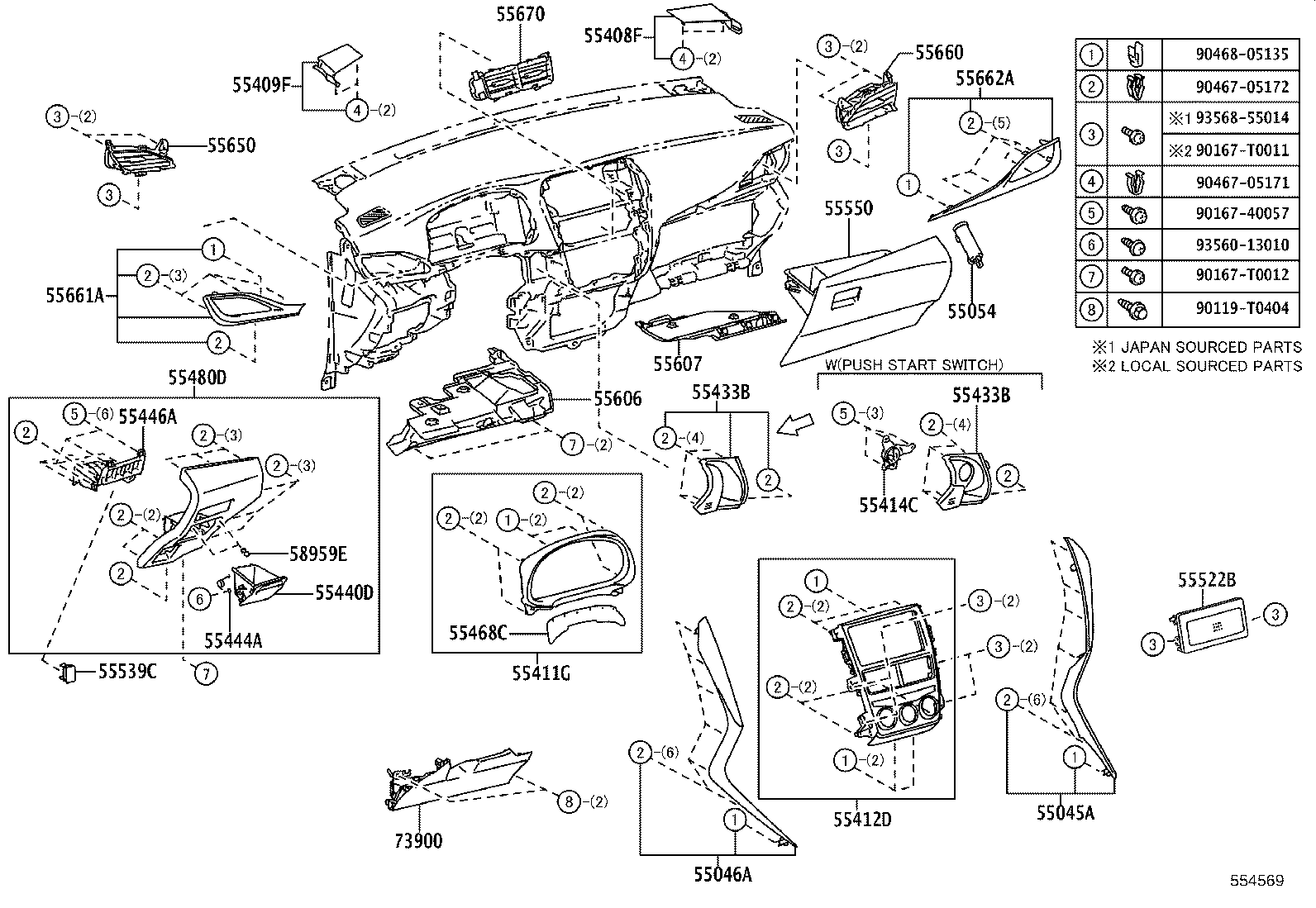

ILLUST NO. 2 OF 2(1912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55046-0D030 |
NSP15# |
1 | ||
| 55046-0D160 |
NSP150 |
1 | ||
| 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55045-0D180 |
NSP150 |
1 | ||
| 55045-0D050 |
NSP15# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-0K030 |
NSP150 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-0D010C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-0D030C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55410-0D200C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D860 |
NSP150 |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D270C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D270C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-0D080C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-0D280 |
NSP150 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-0D090C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-0D260 |
NSP150 |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-0D040C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-0K010 |
NSP150 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090C1 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D340C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0D190 |
NSP150 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0D200 |
NSP150 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55660-0D440 |
NSP150 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-0D590 |
NSP150 |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-0D210C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2 | ||||
| 55662-0D110C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0D400 |
NSP150 |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
NSP150 |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0D070C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-T0404 | ||||
| 90167-40057 | ||||
| 90167-T0011 | ||||
| 90167-T0012 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 93560-13010 | ||||
| 93568-55014 | ||||
