NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1912- )

Click highlighted areas on diagram

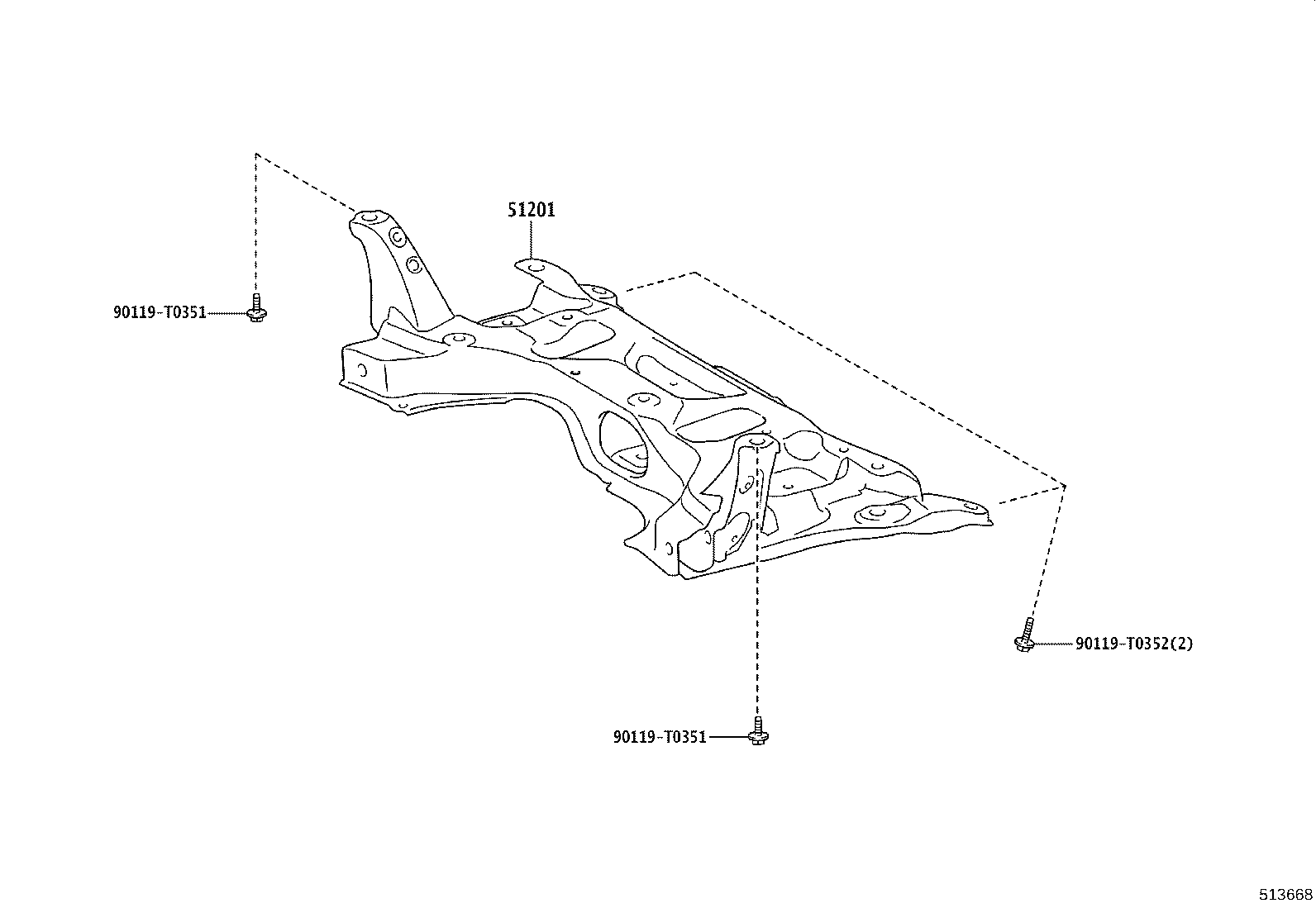

SUSPENSION CROSSMEMBER

diagram 51201 90119T0351 90119T0351 90119T0352
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-0D151

NSP150

 1
Common parts
90119-T0351
90119-T0352

ILLUST NO. 2 OF 2(1912- )

Click highlighted areas on diagram

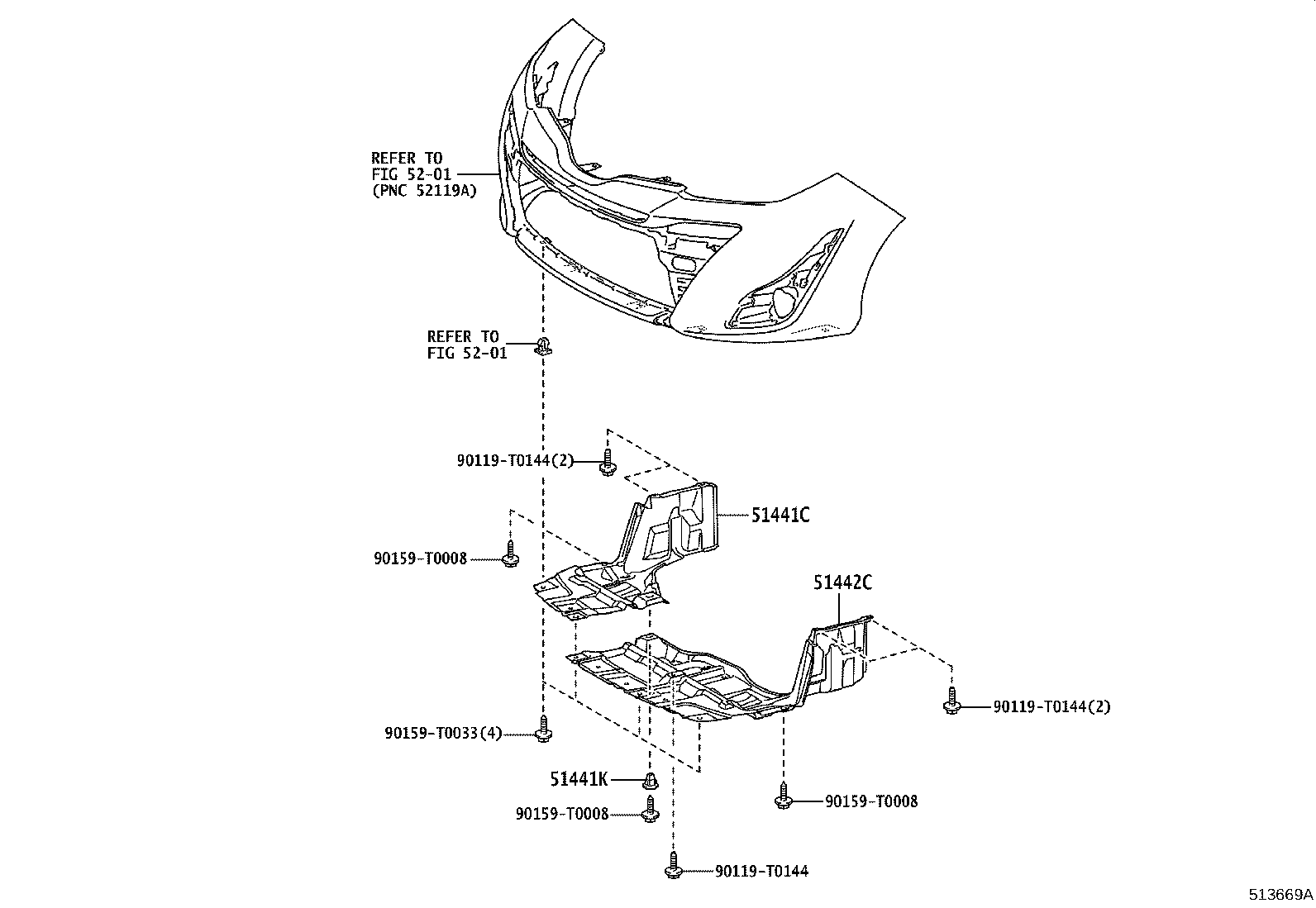

UNDER COVER

diagram 51441C 51441K 51442C 5201 5201 90119T0144 90119T0144 90119T0144 90159T0008 90159T0008 90159T0008 90159T0033
Part # Description Qty Price
51441C - COVER, ENGINE UNDER, RH
51441-0D280

NSP150

 1
51441K - GROMMET(FOR ENGINE UNDER COVER)
90189-T0022

NSP150

 1
90189-06006

NSP15#

 1
51442C - COVER, ENGINE UNDER, LH
51442-0D170

NSP150

 1
Common parts
90119-T0144
90159-T0008
90159-T0033
Linked diagrams
5201
