NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

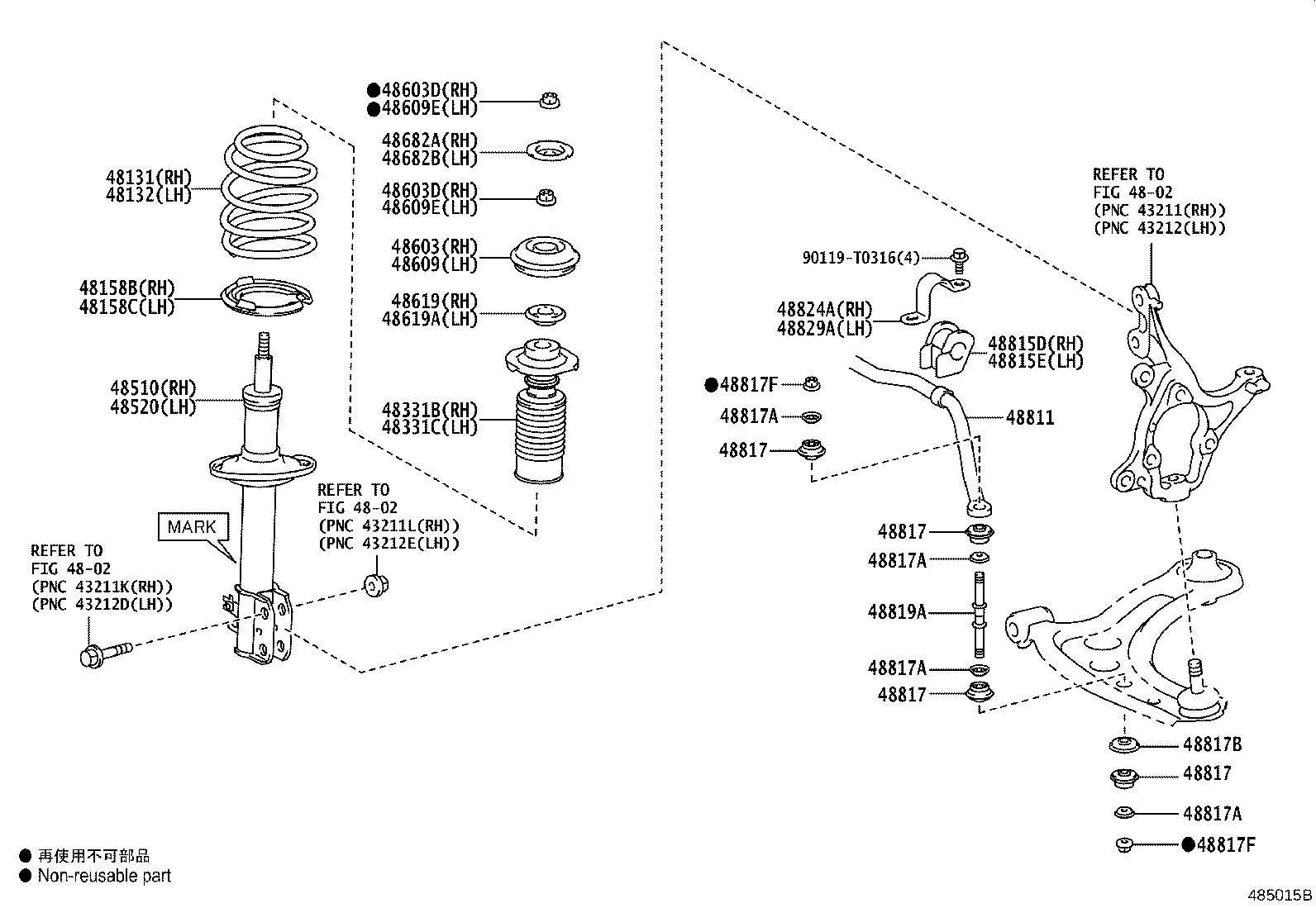

Click highlighted areas on diagram

diagram 4802 4802 4802 48131 48132 48158B 48158C 48331B 48331C 48510 48520 48603 48603D 48603D 48609 48609E 48609E 48619 48619A 48682A 48682B 48811 48815D 48815E 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817F 48817F 48819A 48824A 48829A 90119T0316
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-0D820

NSP150

 1
48132 - SPRING, FRONT COIL, LH
48131-0D820

NSP150

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-0D080

NSP150

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-0D080

NSP150

 1
48331B - BUMPER, FRONT SPRING, RH
48304-0D240

NSP150

 1
48331C - BUMPER, FRONT SPRING, LH
48304-0D240

NSP150

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-0DD00

NSP150

MARK 48510-0DD00

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-0DD00

NSP150

MARK 48510-0DD00

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-0D150

NSP150

 1
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90178-T0064

NSP150

 2
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90178-T0064

NSP150

 2
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-0D150

NSP150

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90178-T0064

NSP150

 2
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90178-T0064

NSP150

 2
48619 - BEARING, STRUT MOUNTING, RH
48619-52030

NSP150

 1
48619A - BEARING, STRUT MOUNTING, LH
48619-52030

NSP150

 1
48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH
48682-0D200

NSP150

 1
48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH
48682-0D200

NSP150

 1
48811 - BAR, STABILIZER, FRONT
48811-0D191

NSP150

 1
48815D - BUSH, FRONT STABILIZER BAR, RH
48815-0D190

NSP150

 1
48815E - BUSH, FRONT STABILIZER BAR, LH
48815-0D190

NSP150

 1
48817 - CUSHION, FRONT STABILIZER
48817-52011

NSP150

 8
48817 - CUSHION, FRONT STABILIZER
48817-52011

NSP150

 8
48817 - CUSHION, FRONT STABILIZER
48817-52011

NSP150

 8
48817 - CUSHION, FRONT STABILIZER
48817-52011

NSP150

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02179

NSP150

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02179

NSP150

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02179

NSP150

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02179

NSP150

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02178

NSP150

 2
48817F - NUT(FOR FRONT STABILIZER BAR)
90177-T0007

NSP150

 4
48817F - NUT(FOR FRONT STABILIZER BAR)
90177-T0007

NSP150

 4
48819A - BOLT, FRONT STABILIZER
48821-52040

NSP150

 2
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-0D030

NSP150

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-0D030

NSP150

 1
Common parts
90119-T0316
Linked diagrams
4802
