NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1912- )NSP150

Click highlighted areas on diagram

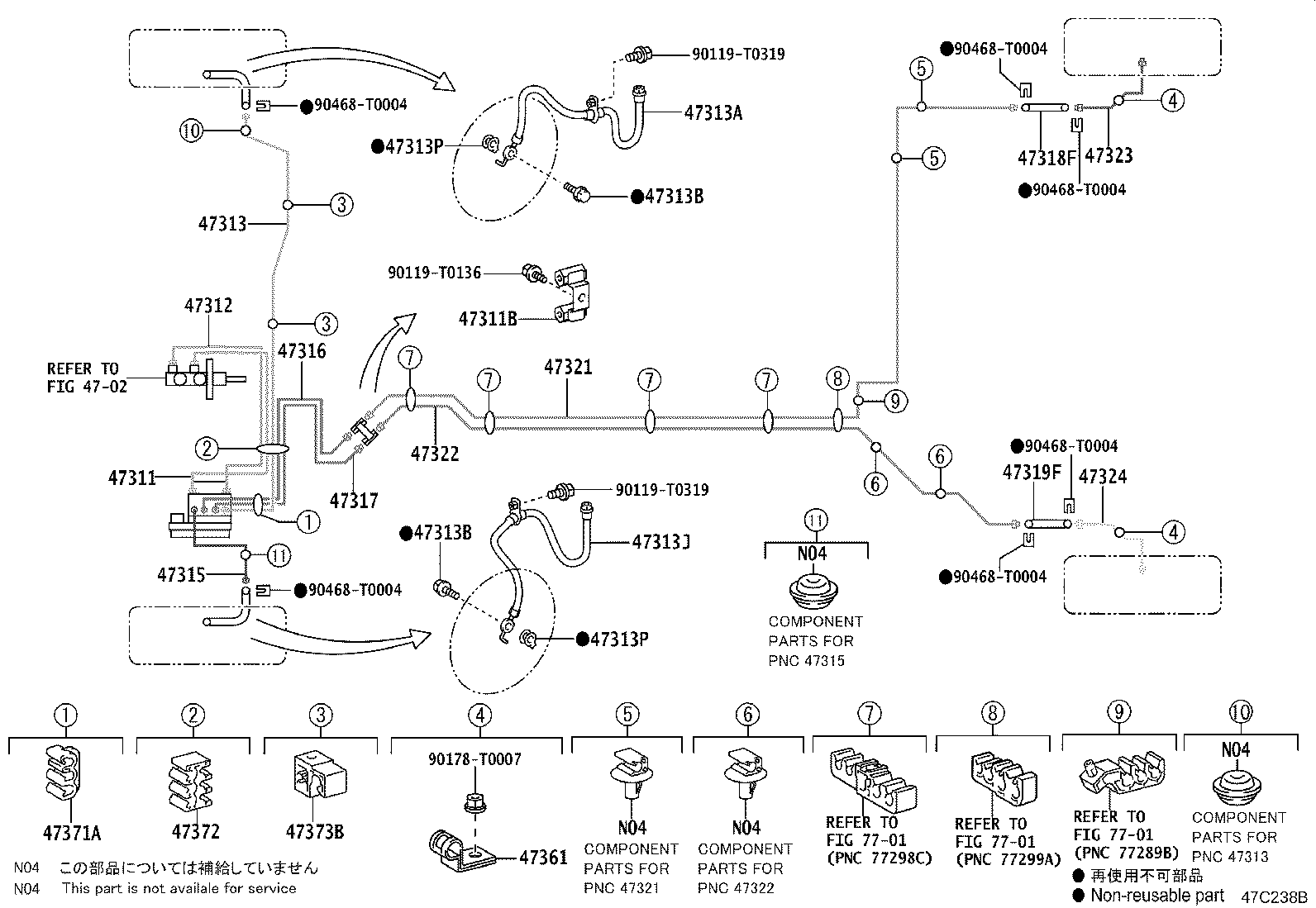

BRAKE TUBE, REAR DRUM BRAKE

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47361 47371A 47372 47373B 7701 7701 7701 90119T0136 90119T0319 90119T0319 90178T0007 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004 90468T0004
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-0D800

NSP150

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10285

NSP150

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0D730

NSP150

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0D490

NSP150

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-T2081

NSP150

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NSP150

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NSP150

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-T2082

NSP150

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NSP150

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

NSP150

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-0D500

NSP150

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0D390

NSP150

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0D390

NSP150

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-T2083

NSP150

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-T2084

NSP150

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0D360

NSP150

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0D360

NSP150

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0D220

NSP150

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0D220

NSP150

 1
47361 - CLAMP, TUBE
90461-T0006

NSP150

 2
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

NSP150

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00925

NSP150

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D18

NSP150

 2
Common parts
90119-T0136
90119-T0319
90178-T0007
90468-T0004
Linked diagrams
4702
7701

ILLUST NO. 2 OF 2(1912- )5F

Click highlighted areas on diagram

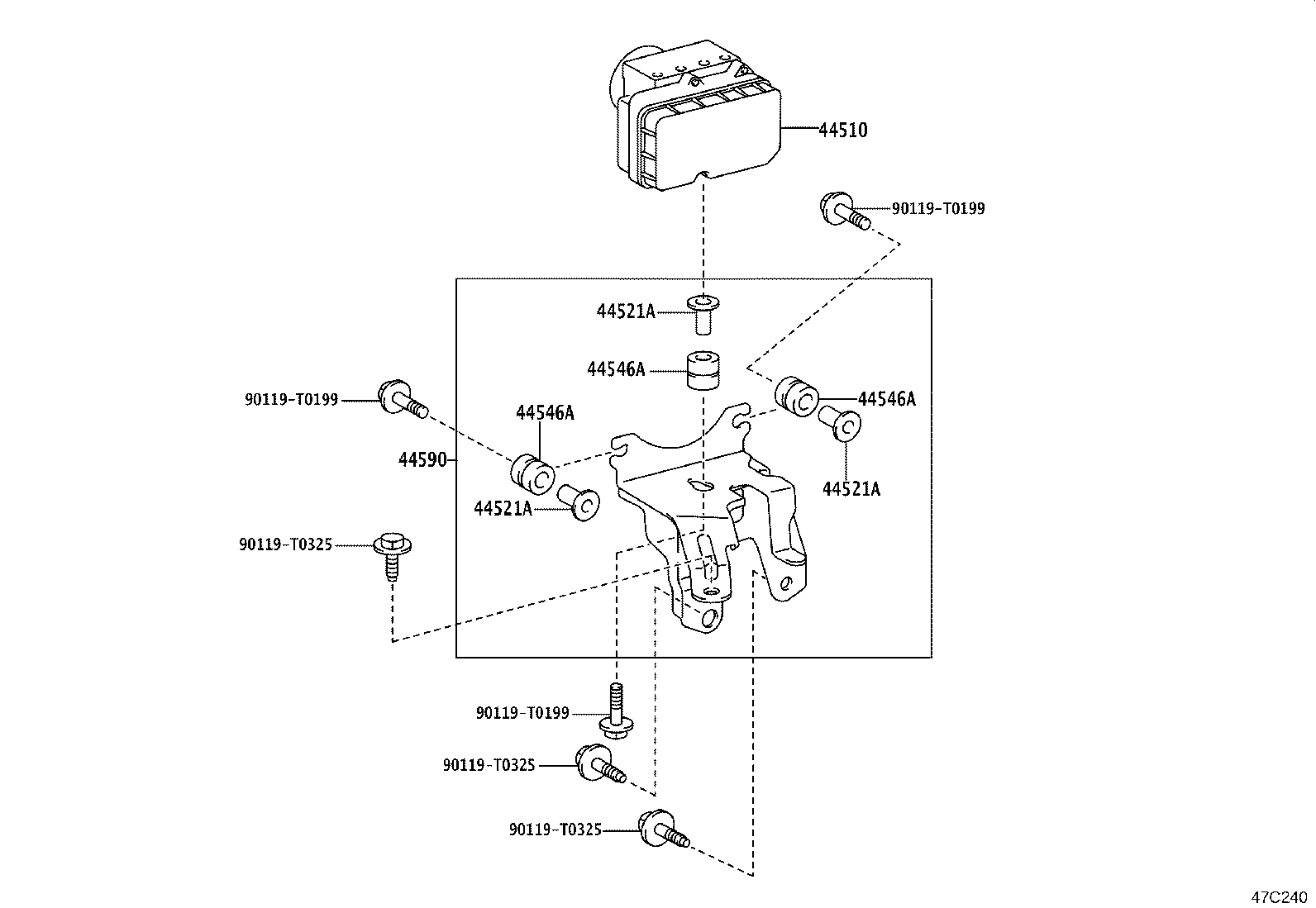

BRAKE ACTUATOR

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 90119T0199 90119T0199 90119T0199 90119T0325 90119T0325 90119T0325
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-0DD80

NSP150

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NSP150

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NSP150

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NSP150

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NSP150

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NSP150

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NSP150

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0D440

NSP150

 1
Common parts
90119-T0199
90119-T0325
