NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )5F

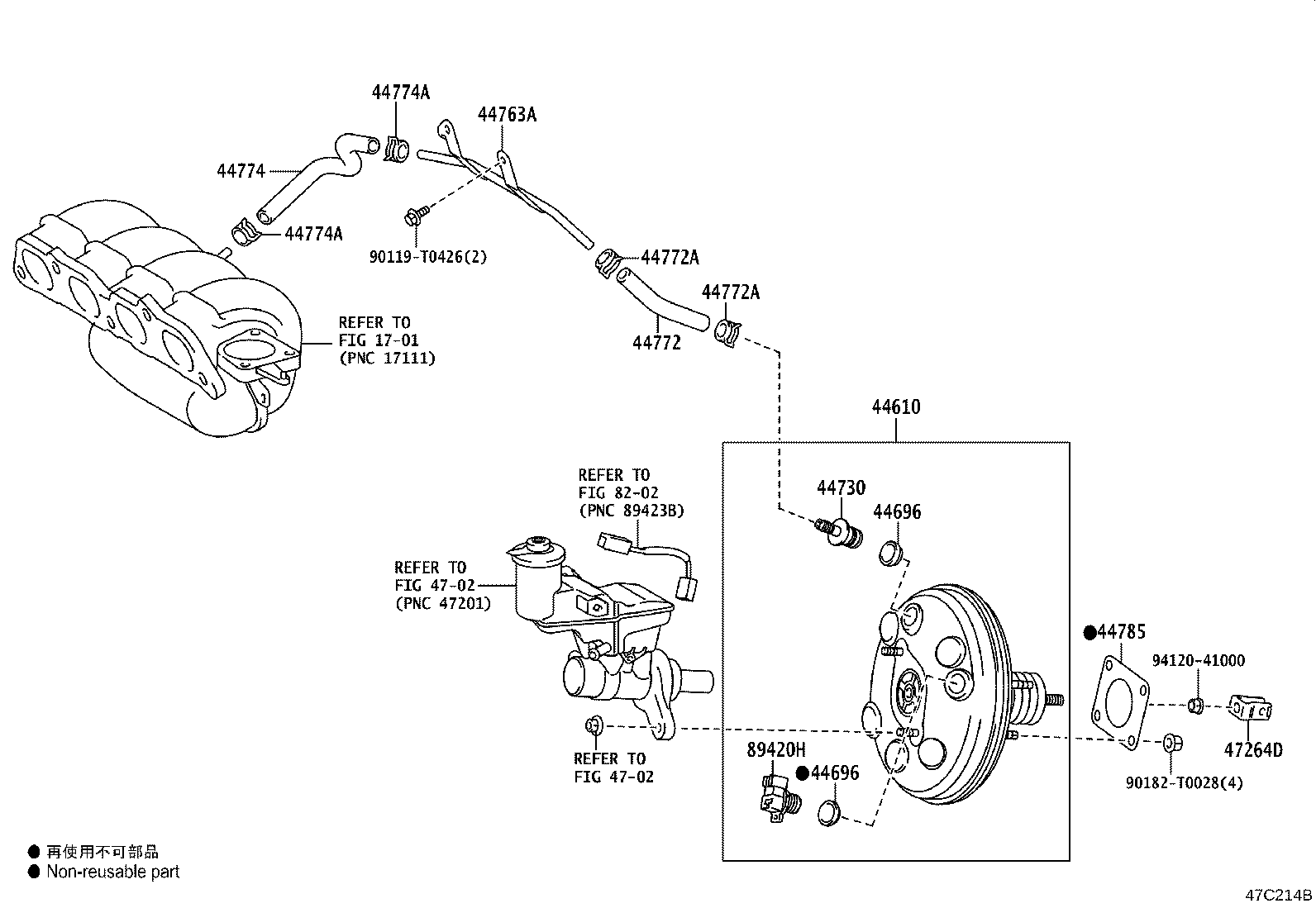

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-0D760 |
NSP150 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90016-AT003 |
NSP150 |
2 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90016-AT003 |
NSP150 |
2 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60070 |
NSP150 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-0D290 |
NSP150 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-0D450 |
NSP150 |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP150 |
2 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP150 |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-0D200 |
NSP150 |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NSP150 |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NSP150 |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-0D020 |
NSP150 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-0D040 |
NSP150 |
1 | ||
| 89420H - SENSOR ASSY, VACUUM | ||||
| 89421-52020 |
NSP150 |
1 | ||
| Common parts | ||||
| 90119-T0426 | ||||
| 90182-T0028 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 4702 | ||||
| 8202 | ||||
