NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )
Click highlighted areas on diagram

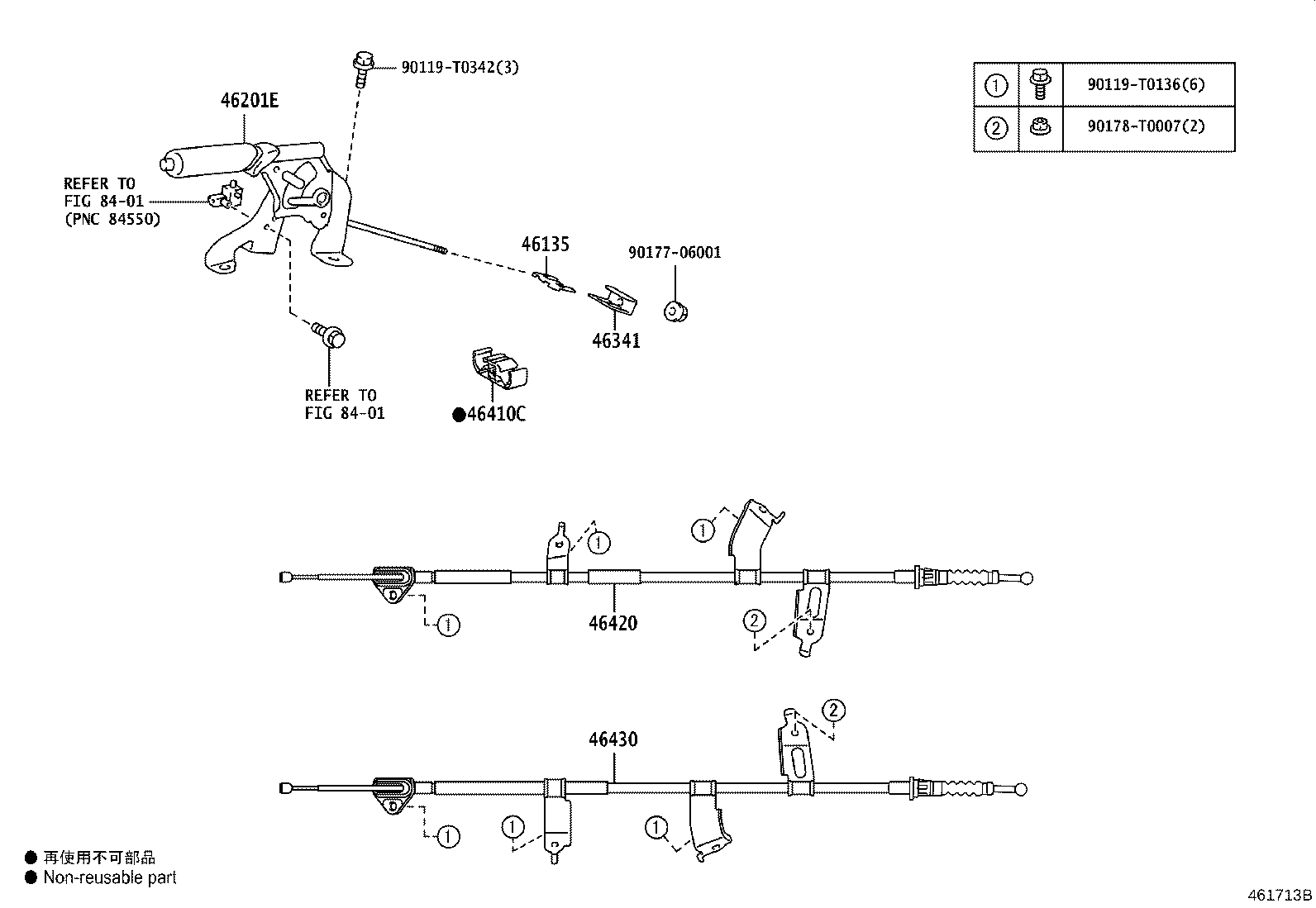

REAR DISC BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-0D030 |
NSP150 |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-0D311C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-0D070 |
NSP150 |
1 | ||
| 46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE) | ||||
| 46411-0D020 |
NSP150 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-0D260 |
NSP150 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-0D260 |
NSP150 |
1 | ||
| Common parts | ||||
| 90119-T0136 | ||||
| 90119-T0342 | ||||
| 90177-06001 | ||||
| 90178-T0007 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1912- )
Click highlighted areas on diagram
REAR DRUM BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-0D030 |
NSP150 |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-0D311C0 |
NSP150 BLACK,TRIM2# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-0D070 |
NSP150 |
1 | ||
| 46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE) | ||||
| 46411-0D020 |
NSP150 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-0D260 |
NSP150 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-0D260 |
NSP150 |
1 | ||
| Common parts | ||||
| 90119-T0136 | ||||
| 90119-T0307 | ||||
| 90119-T0342 | ||||
| 90177-06001 | ||||
| 90178-T0007 | ||||
| Linked diagrams | ||||
| 8401 | ||||
