NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

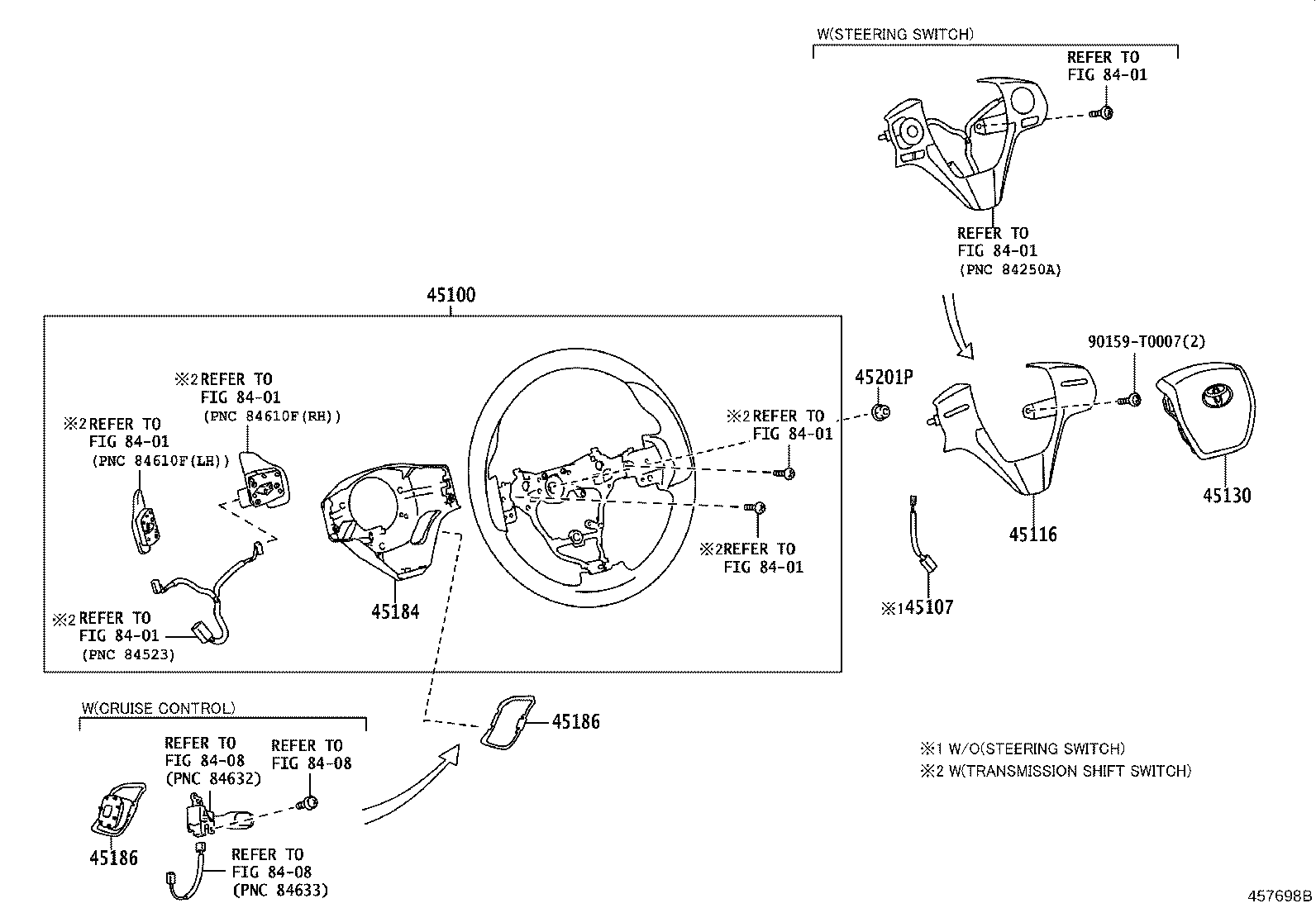

Click highlighted areas on diagram

diagram 45100 45107 45116 45130 45184 45186 45186 45201P 8401 8401 8401 8401 8401 8401 8401 8408 8408 8408 90159T0007
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-02W30C0

NSP150

3-SPOKE,URETHANE,BLACK,TRIM2#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-52010

NSP150

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-0D150C0

NSP150

BLACK,TRIM2#

 1
45116-0D190C0

NSP150

BLACK,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-0D410C0

NSP150

BLACK,TRIM2#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-02370C0

NSP150

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-02250C0

NSP150

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-02250C0

NSP150

BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

NSP150

 1
Common parts
90159-T0007
Linked diagrams
8401
8408
