NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )5F

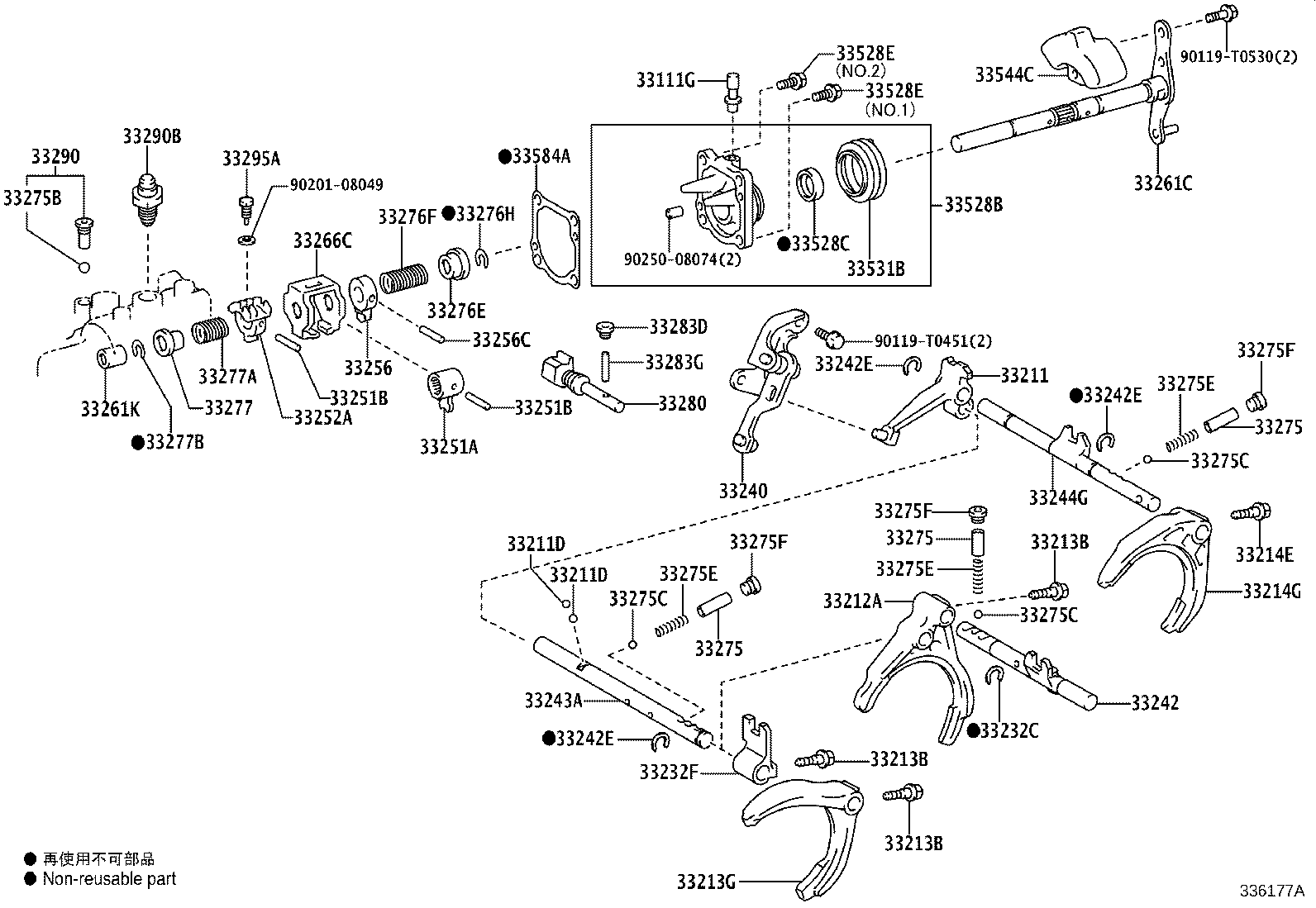

Click highlighted areas on diagram
C50,C54
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-T3001 |
NSP150 |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-0D060 |
NSP150 |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-T0009 |
NSP150 OD=6.35 |
2 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-T0009 |
NSP150 OD=6.35 |
2 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-0D010 |
NSP150 |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06115 |
NSP150 |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06115 |
NSP150 |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06115 |
NSP150 |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-0D020 |
NSP150 |
1 | ||
| 33214E - BOLT(FOR GEAR SHIFT FORK LOCK) | ||||
| 90105-06115 |
NSP150 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-0D030 |
NSP150 |
1 | ||
| 33232C - RING, SNAP (FOR 1ST & 2ND SHIFT HEAD) | ||||
| 90520-T0135 |
NSP150 |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-0D030 |
NSP150 |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-0D050 |
NSP150 |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33205-0D030 |
NSP150 |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-T0135 |
NSP150 |
3 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-T0135 |
NSP150 |
3 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-T0135 |
NSP150 |
3 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-0D070 |
NSP150 |
1 | ||
| 33244G - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-0D060 |
NSP150 |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-0D070 |
NSP150 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
NSP150 L=25.5 |
2 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
NSP150 L=25.5 |
2 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-0D030 |
NSP150 |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-0D050 |
NSP150 |
1 | ||
| 33256C - PIN, SLOTTED SPRING (FOR SELECT INNER LEVER) | ||||
| 90254-05016 |
NSP150 |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-0D110 |
NSP150 |
1 | ||
| 33261K - BEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 90369-15003 |
NSP150 |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-02020 |
NSP150 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
NSP150 OD=10.7 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
NSP150 OD=10.7 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12041 |
NSP150 OD=10.7 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
NSP150 |
1 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-T0008 |
NSP150 |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-T0008 |
NSP150 |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-T0008 |
NSP150 |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-T0061 |
NSP150 |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-T0061 |
NSP150 |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-T0061 |
NSP150 |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NSP150 |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NSP150 |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
NSP150 |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-0D030 |
NSP150 |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-T0047 |
NSP150 |
1 | ||
| 33276H - RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT) | ||||
| 90520-15003 |
NSP150 |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-0D050 |
NSP150 |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-T0046 |
NSP150 |
1 | ||
| 33277B - RING, E (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90523-12003 |
NSP150 |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-0D030 |
NSP150 |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
NSP150 |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05003 |
NSP150 |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-12011 |
NSP150 |
1 | ||
| 33290B - BALL ASSY, LOCK, NO.2 | ||||
| 33290-0D050 |
NSP150 |
1 | ||
| 33295A - SHAFT, REVERSE RESTRICT | ||||
| 33295-0D030 |
NSP150 |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-0D080 |
NSP150 |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90310-T0010 |
NSP150 |
1 | ||
| 33528E - BOLT (FOR CONTROL SHAFT COVER) | ||||
| 90119-T0510 |
NSP150 *10-1.25PX25-19.8,NO.1:REFER ILLUST. |
2 | ||
| 90119-T0055 |
NSP150 *10-1.25PX25-19.8,NO.2:REFER ILLUST. |
2 | ||
| 33528E - BOLT (FOR CONTROL SHAFT COVER) | ||||
| 90119-T0510 |
NSP150 *10-1.25PX25-19.8,NO.1:REFER ILLUST. |
2 | ||
| 90119-T0055 |
NSP150 *10-1.25PX25-19.8,NO.2:REFER ILLUST. |
2 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-12030 |
NSP150 |
1 | ||
| 33544C - DAMPER, SHIFT LEVER | ||||
| 33544-0D090 |
NSP150 |
1 | ||
| 33584A - GASKET, CONTROL SHIFT LEVER RETAINER | ||||
| 33584-0D030 |
NSP150 |
1 | ||
| Common parts | ||||
| 90119-T0451 | ||||
| 90119-T0530 | ||||
| 90201-08049 | ||||
| 90250-08074 | ||||
