NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )5F

Click highlighted areas on diagram

C50,C54

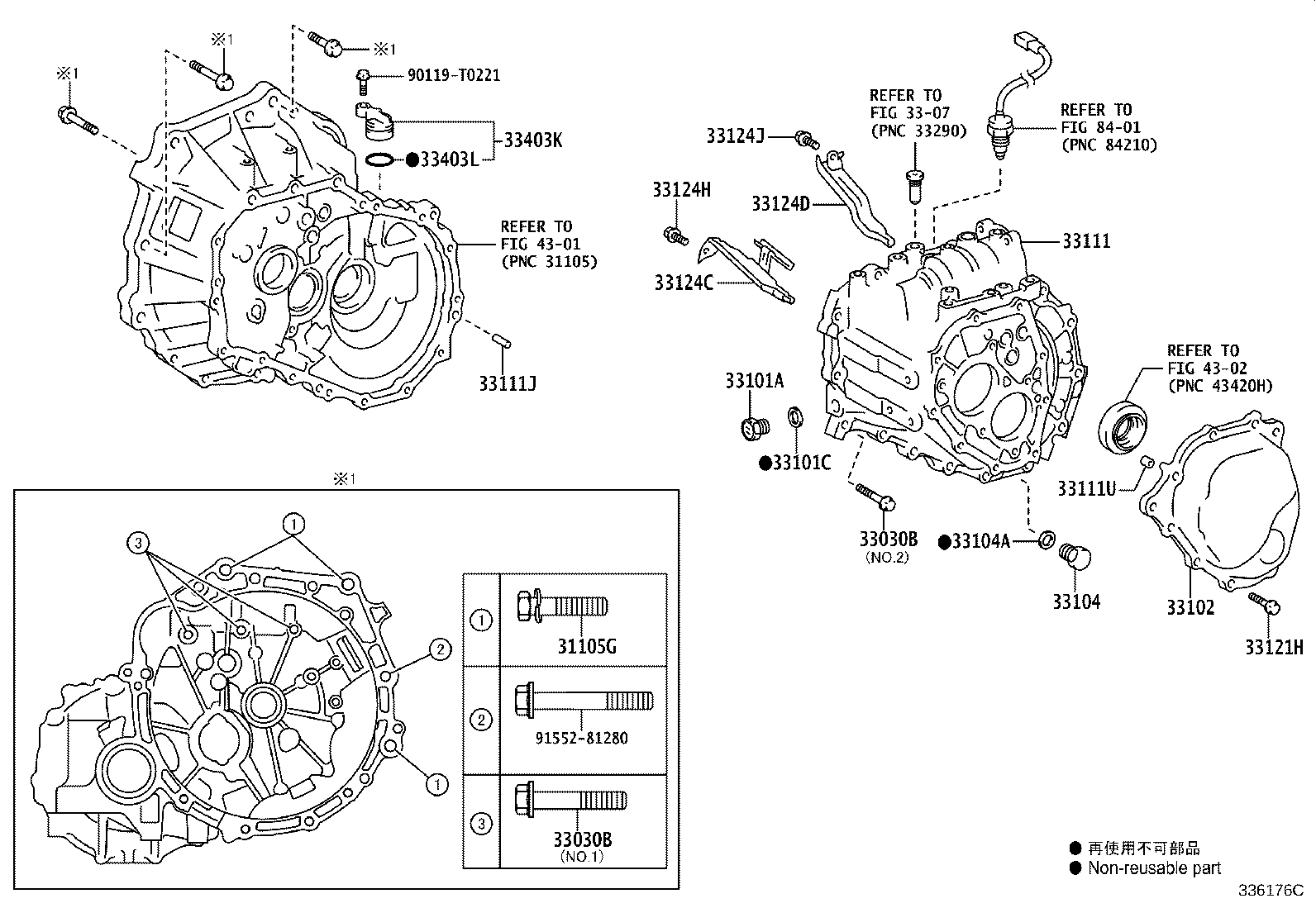

diagram 31105G 33030B 33030B 3307 33101A 33101C 33102 33104 33104A 33111 33111J 33111U 33121H 33124C 33124D 33124H 33124J 33403K 33403L 4301 4302 8401 90119T0221 9155281280
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-T0310

NSP150

*12-1.25PX45-30

 3
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-T0325

NSP150

*8-1.25PX45-27.5,NO.1:REFER ILLUST.

 3
90105-T0323

NSP150

*8-1.25PX51-28,NO.2:REFER ILLUST.

 13
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-T0325

NSP150

*8-1.25PX45-27.5,NO.1:REFER ILLUST.

 3
90105-T0323

NSP150

*8-1.25PX51-28,NO.2:REFER ILLUST.

 13
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033

NSP150

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-T0021

NSP150

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-52021

NSP150

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

NSP150

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-T0021

NSP150

 1
33111 - CASE, MANUAL TRANSMISSION
33111-0D120

NSP150

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

NSP150

L=23,OD=8

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

NSP150

L=11,OD=11

 2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-T0449

NSP150

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050

NSP150

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12021

NSP150

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
90119-T0296

NSP150

 1
33124J - BOLT, W/WASHER
90119-T0296

NSP150

 1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-0D020

NSP150

 1
33403L - RING, O
96711-24030

NSP150

 1
Common parts
90119-T0221
91552-81280
Linked diagrams
3307
4301
4302
8401
