NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )5F

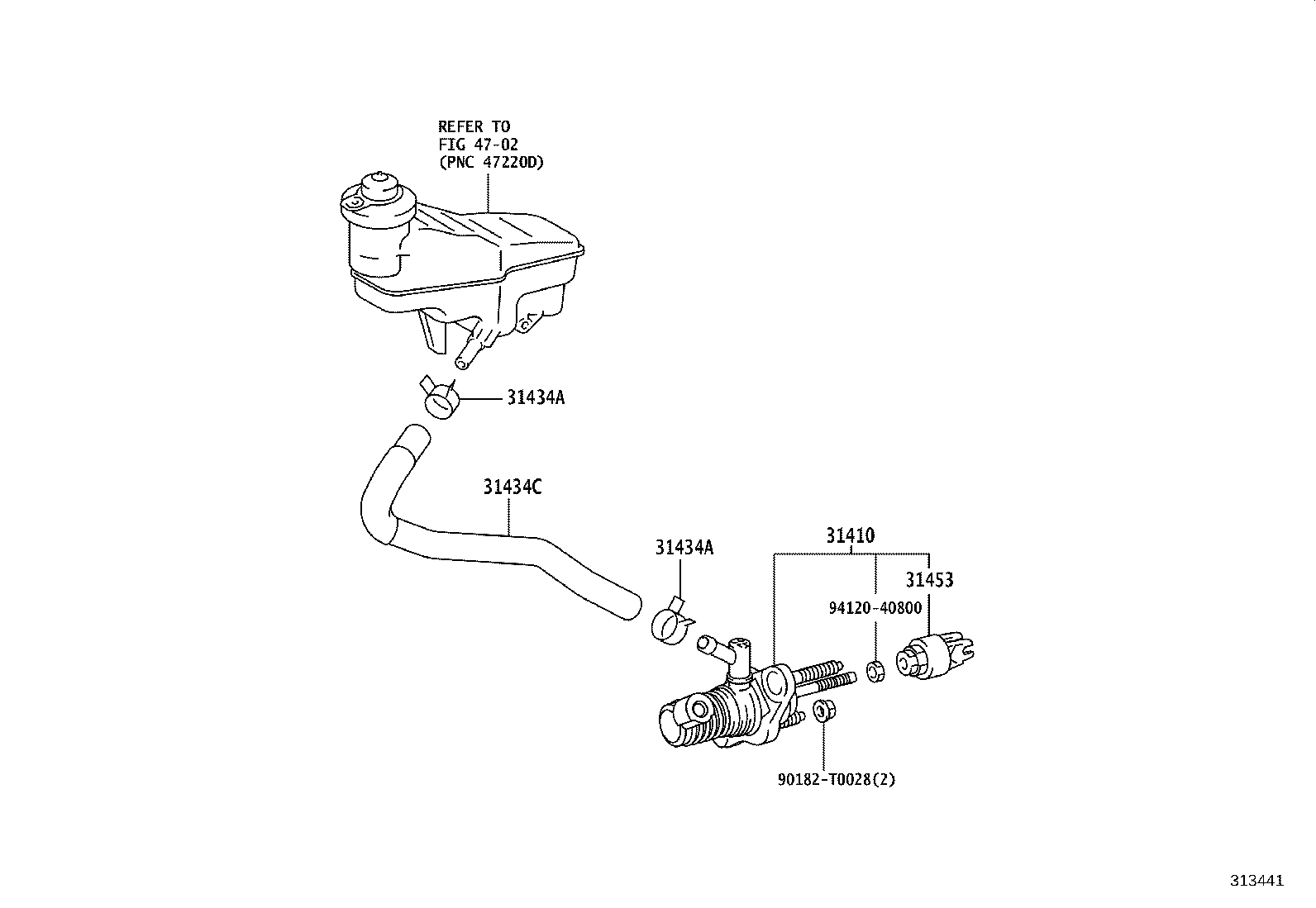

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-0D220 |
NSP150 |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90466-T0052 |
NSP150 |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 90466-T0052 |
NSP150 |
2 | ||
| 31434C - TUBE, CLUTCH RESERVOIR | ||||
| 31434-52300 |
NSP150 |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-0D020 |
NSP150 |
1 | ||
| Common parts | ||||
| 90182-T0028 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
