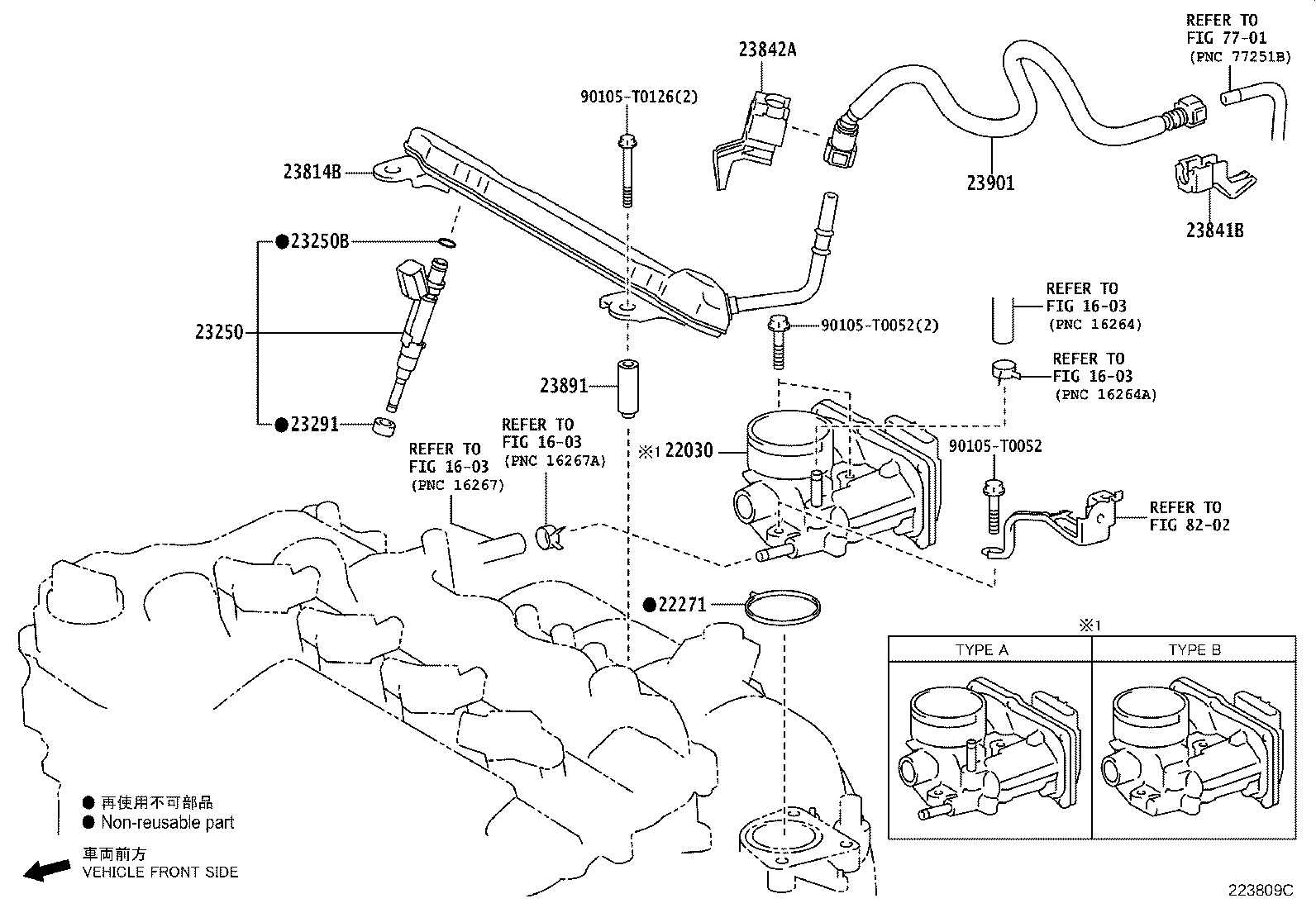

Toyota Limo/vios NSP150 FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-0Y140	1NRFE,2NRFE..NSP15#..5F TYPE B:REFER ILLUST.	02/2020 - 04/2021	1
22030-0Y020	1NRFE,2NRFE..NSP15# TYPE A:REFER ILLUST.	12/2019 - 02/2020	1
22030-0Y020	1NRFE..NSP150 TYPE A:REFER ILLUST.	04/2021 - 09/2021	1
22271 - GASKET, THROTTLE BODY
22271-0Y030	1NRFE..NSP150	12/2019 - 09/2021	1
23250 - INJECTOR ASSY, FUEL
23209-09340	1NRFE..NSP150	12/2019 - 09/2021	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07042	1NRFE..NSP150	12/2019 - 09/2021	4
23291 - INSULATOR, INJECTOR VIBRATION
23291-0Y020	1NRFE..NSP150	12/2019 - 09/2021	4
23814B - PIPE, FUEL DELIVERY
23814-0Y010	1NRFE..NSP150	12/2019 - 09/2021	1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0Y050	1NRFE..NSP150	12/2019 - 09/2021	1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23841-0Y040	1NRFE..NSP150	12/2019 - 09/2021	1
23891 - SPACER, FUEL DELIVERY
23891-47040	1NRFE..NSP150	12/2019 - 09/2021	2
23901 - TUBE SUB-ASSY, FUEL
23901-0Y170	1NRFE..NSP150	12/2019 - 09/2021	1
Common parts
90105-T0052
90105-T0126
Linked diagrams
1603
7701
8202

NSP150L-EEMDKU (2019)
