NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

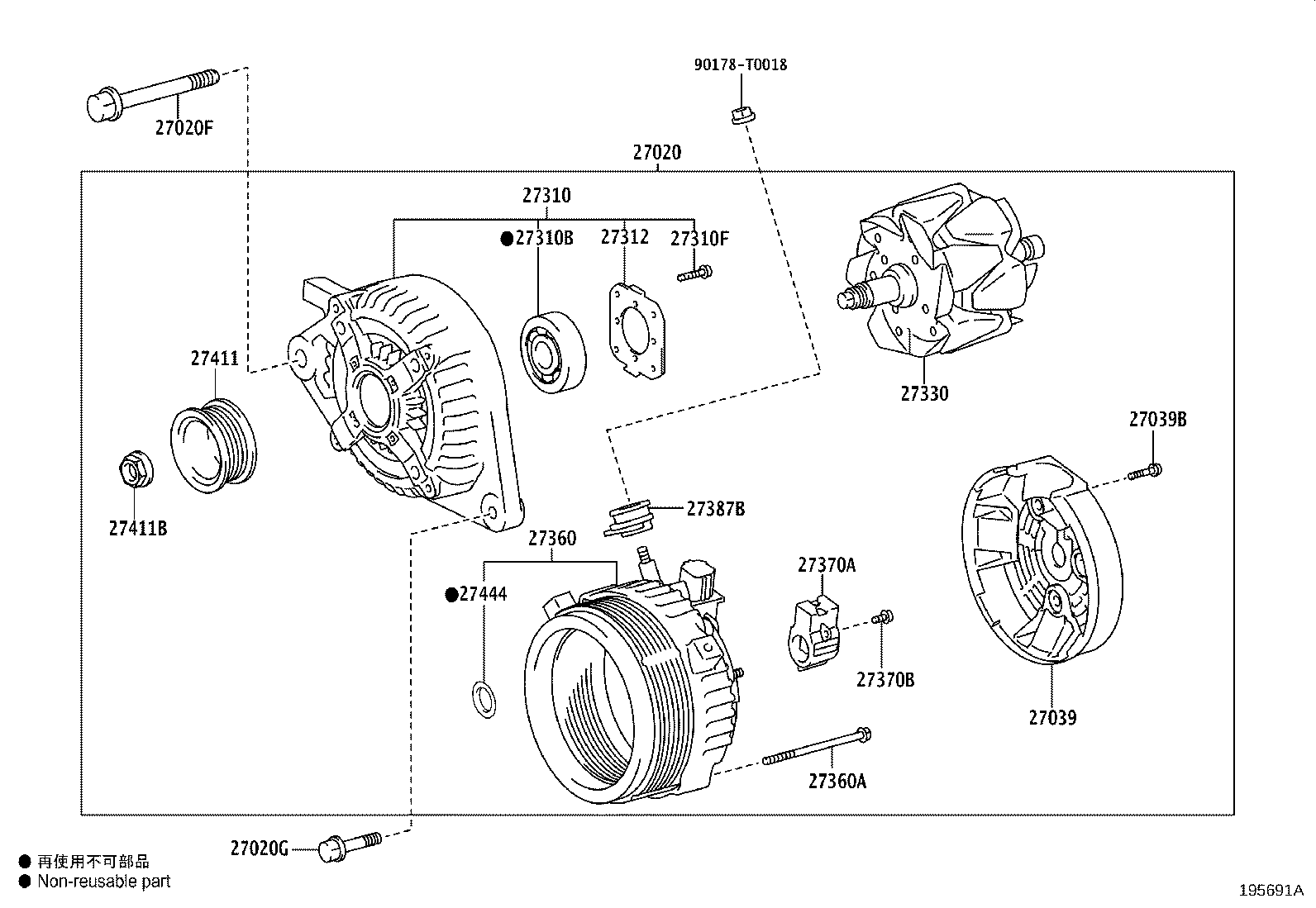

Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0Y300 |
1NRFE..NSP150 12V 80A |
1 | ||
| 27020F - BOLT, NO.1(FOR ALTERNATOR) | ||||
| 90105-T0172 |
1NRFE..NSP150 |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 90105-T0130 |
1NRFE..NSP150 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0M100 |
1NRFE..NSP150 |
1 | ||
| 27039B - BOLT(FOR ALTERNATOR REAR END COVER) | ||||
| 90068-04047 |
1NRFE..NSP150 |
3 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0Y190 |
1NRFE..NSP150 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10040 |
1NRFE..NSP150 |
1 | ||
| 27310F - SCREW(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-00022 |
1NRFE..NSP150 |
4 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0C020 |
1NRFE..NSP150 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0M100 |
1NRFE..NSP150 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0Y280 |
1NRFE..NSP150 |
1 | ||
| 27360A - BOLT(FOR ALTERNATOR COIL) | ||||
| 90068-04048 |
1NRFE..NSP150 |
4 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-0M040 |
1NRFE..NSP150 |
1 | ||
| 27370B - SCREW(FOR ALTERNATOR BRUSH HOLDER) | ||||
| 90068-00023 |
1NRFE..NSP150 |
2 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-0C020 |
1NRFE..NSP150 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-0D200 |
1NRFE..NSP150 |
1 | ||
| 27411B - NUT(FOR ALTERNATOR PULLEY) | ||||
| 90068-05009 |
1NRFE..NSP150 |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-0Y180 |
1NRFE..NSP150 |
1 | ||
| Common parts | ||||
| 90178-T0018 | ||||
