NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

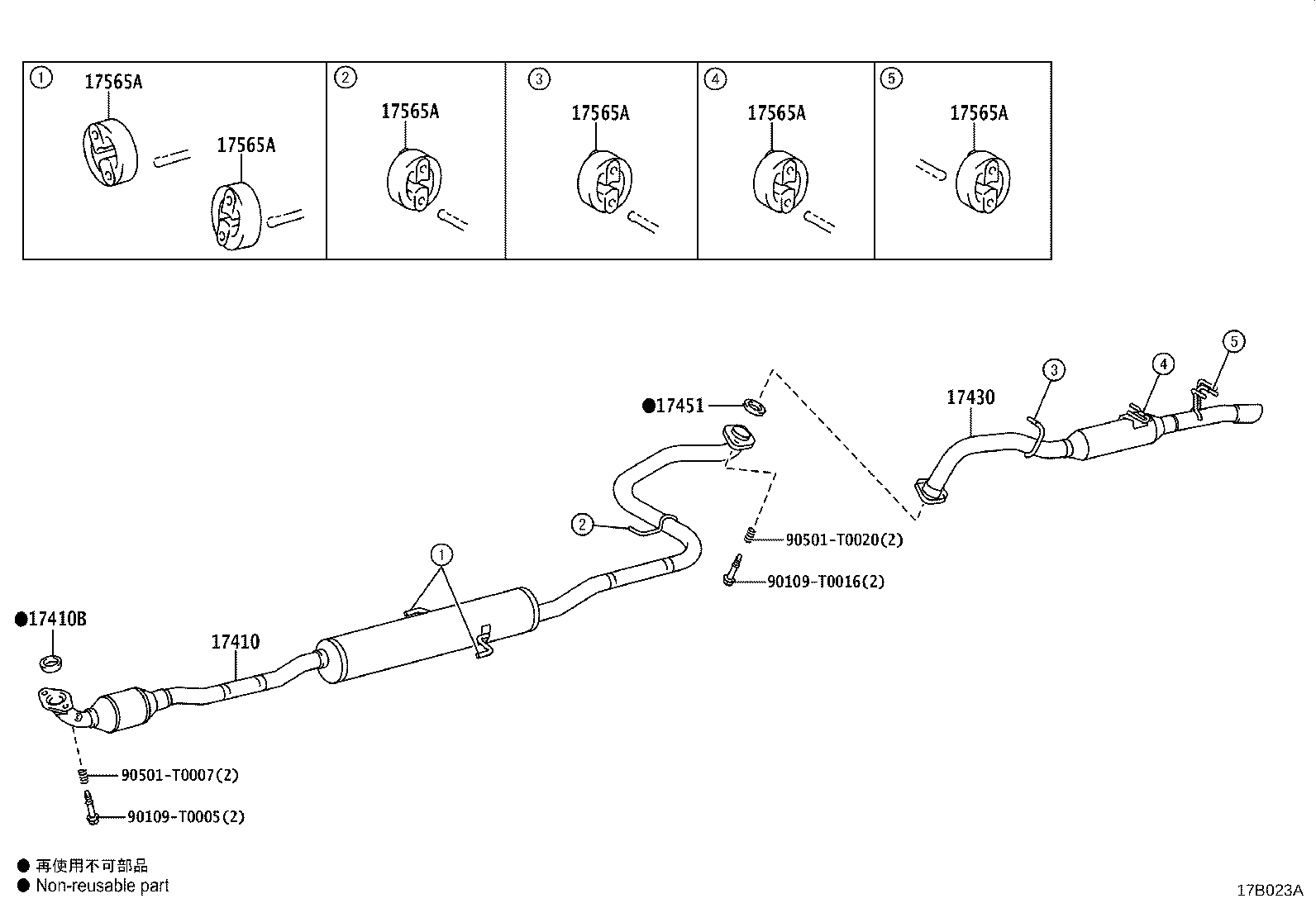

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17565A 17565A 17565A 17565A 17565A 17565A 90109T0005 90109T0016 90501T0007 90501T0020
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0Y552

1NRFE..NSP150

 1
17410B - GASKET, EXHAUST PIPE
17451-0M020

1NRFE..NSP150

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0Y281

1NRFE..NSP150

 1
17451 - GASKET, EXHAUST PIPE
17451-0M032

1NRFE..NSP150

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M030

1NRFE..NSP150

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M030

1NRFE..NSP150

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M030

1NRFE..NSP150

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M030

1NRFE..NSP150

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M030

1NRFE..NSP150

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M030

1NRFE..NSP150

 6
Common parts
90109-T0005
90109-T0016
90501-T0007
90501-T0020
