NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

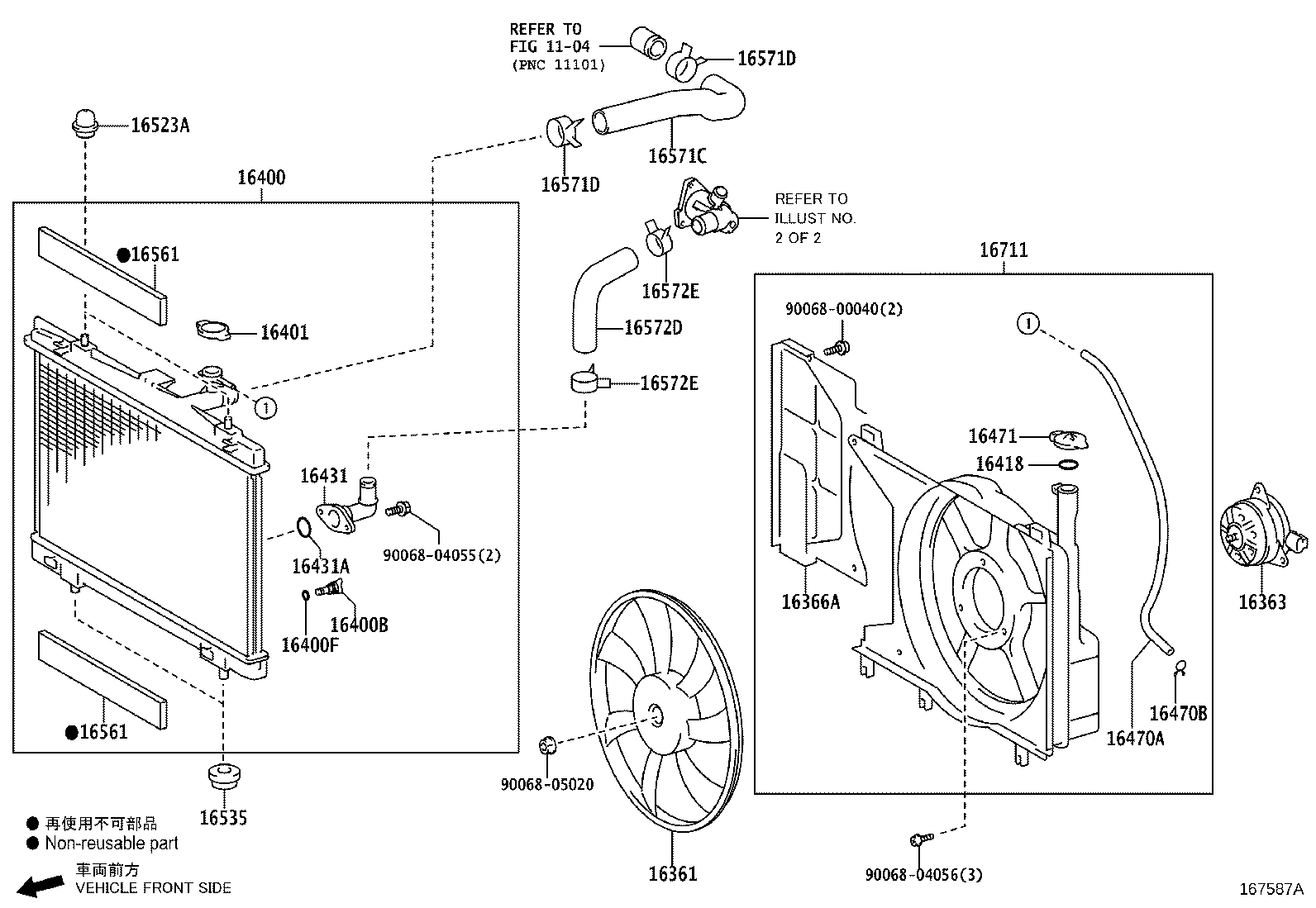

ILLUST NO. 1 OF 2(1912- )

Click highlighted areas on diagram

diagram 1104 16361 16363 16366A 16400 16400B 16400F 16401 16418 16431 16431A 16470A 16470B 16471 16523A 16535 16561 16561 16571C 16571D 16571D 16572D 16572E 16572E 16711 9006800040 9006804055 9006804056 9006805020
Part # Description Qty Price
16361 - FAN
16361-0M110

1NRFE..NSP150

 1
16363 - MOTOR, COOLING FAN
16363-0Y050

1NRFE,2NRFE..NSP15#

 1
16363-0Y140

1NRFE..NSP150

 1
16366A - INSULATOR, COOLING FAN MOTOR
16366-0Y240

1NRFE..NSP150

 1
16400 - RADIATOR ASSY
16400-0Y191

1NRFE..NSP150

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-0C180

1NRFE..NSP150

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-0L060

1NRFE..NSP150

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-0M010

1NRFE..NSP150

 1
16418 - PACKING
16476-0H060

1NRFE..NSP150

 1
16431 - INLET, RADIATOR WATER
16431-0Y190

1NRFE..NSP150

 1
16431A - RING, O(FOR RADIATOR WATER INLET)
16492-0Y100

1NRFE..NSP150

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-0Y240

1NRFE..NSP150

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1NRFE..NSP150

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16376-0Y050

1NRFE..NSP150

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-21030

1NRFE..NSP150

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-22025

1NRFE..NSP150

 2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-0Y010

1NRFE..NSP150

 2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-0Y010

1NRFE..NSP150

 2
16571C - HOSE, RADIATOR, NO.1
16571-0Y100

1NRFE..NSP150

 1
16571D - CLIP, RADIATOR HOSE, NO.1
96136-43901

1NRFE..NSP150

 2
16571D - CLIP, RADIATOR HOSE, NO.1
96136-43901

1NRFE..NSP150

 2
16572D - HOSE, RADIATOR, NO.2
16572-0Y161

1NRFE..NSP150

 1
16572E - CLIP, RADIATOR HOSE, NO.2
96136-43901

1NRFE..NSP150

 2
16572E - CLIP, RADIATOR HOSE, NO.2
96136-43901

1NRFE..NSP150

 2
16711 - SHROUD, FAN
16711-0Y160

1NRFE,2NRFE..NSP15#

 1
16711-0Y340

1NRFE..NSP150

 1
Common parts
90068-00040
90068-04055
90068-04056
90068-05020
Linked diagrams
1104

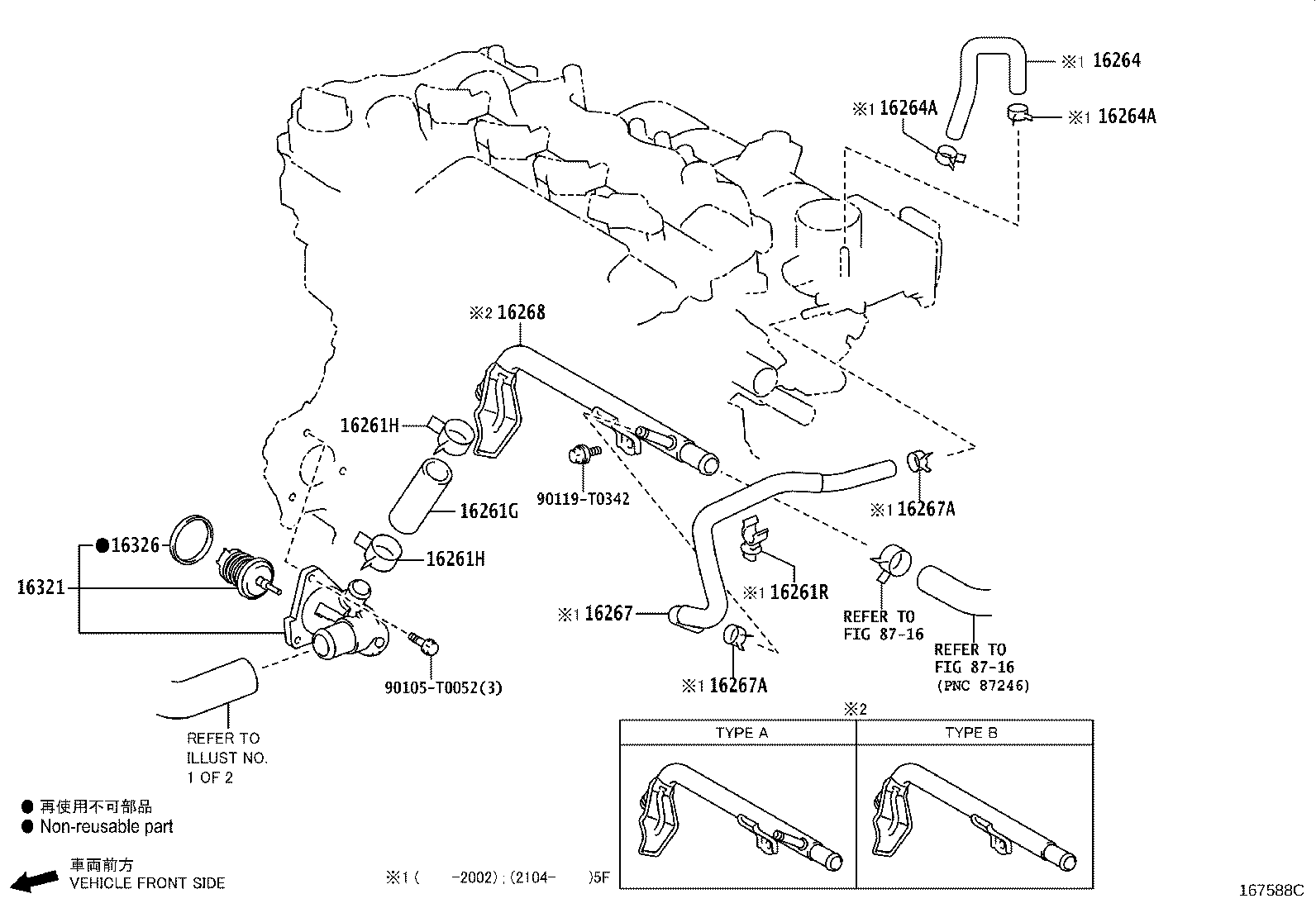

ILLUST NO. 2 OF 2(1912- )1NRFE,2NRFE..5F

Click highlighted areas on diagram

diagram 16261G 16261H 16261H 16261R 16264 16264A 16264A 16267 16267A 16267A 16268 16321 16326 8716 8716 90105T0052 90119T0342
Part # Description Qty Price
16261G - HOSE, WATER BY-PASS, NO.1
16261-0Y030

1NRFE..NSP150

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-T0050

1NRFE..NSP150

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-T0050

1NRFE..NSP150

 2
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90469-T0014

1NRFE..NSP150

 1
90469-T0014

1NRFE,2NRFE..NSP15#

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-0Y080

1NRFE..NSP150

 1
16264-0Y080

1NRFE,2NRFE..NSP15#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-T0015

1NRFE,2NRFE..NSP15#

 2
90466-T0015

1NRFE..NSP150

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-T0015

1NRFE,2NRFE..NSP15#

 2
90466-T0015

1NRFE..NSP150

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-0Y030

1NRFE..NSP150

 1
16267-0Y030

1NRFE,2NRFE..NSP15#

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-T0015

1NRFE,2NRFE..NSP15#

 2
90466-T0015

1NRFE..NSP150

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-T0015

1NRFE,2NRFE..NSP15#

 2
90466-T0015

1NRFE..NSP150

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-0Y040

1NRFE,2NRFE..NSP15#

TYPE A:REFER ILLUST.

 1
16268-0Y150

1NRFE,2NRFE..NSP15#

TYPE B:REFER ILLUST.

 1
16268-0Y180

1NRFE,2NRFE..NSP15#..5F

TYPE B:REFER ILLUST.

 1
16268-0Y190

1NRFE..NSP150

TYPE A:REFER ILLUST.

 1
16321 - INLET, WATER
16031-0Y010

1NRFE..NSP150

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-0Y010

1NRFE..NSP150

 1
Common parts
90105-T0052
90119-T0342
Linked diagrams
8716
