NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

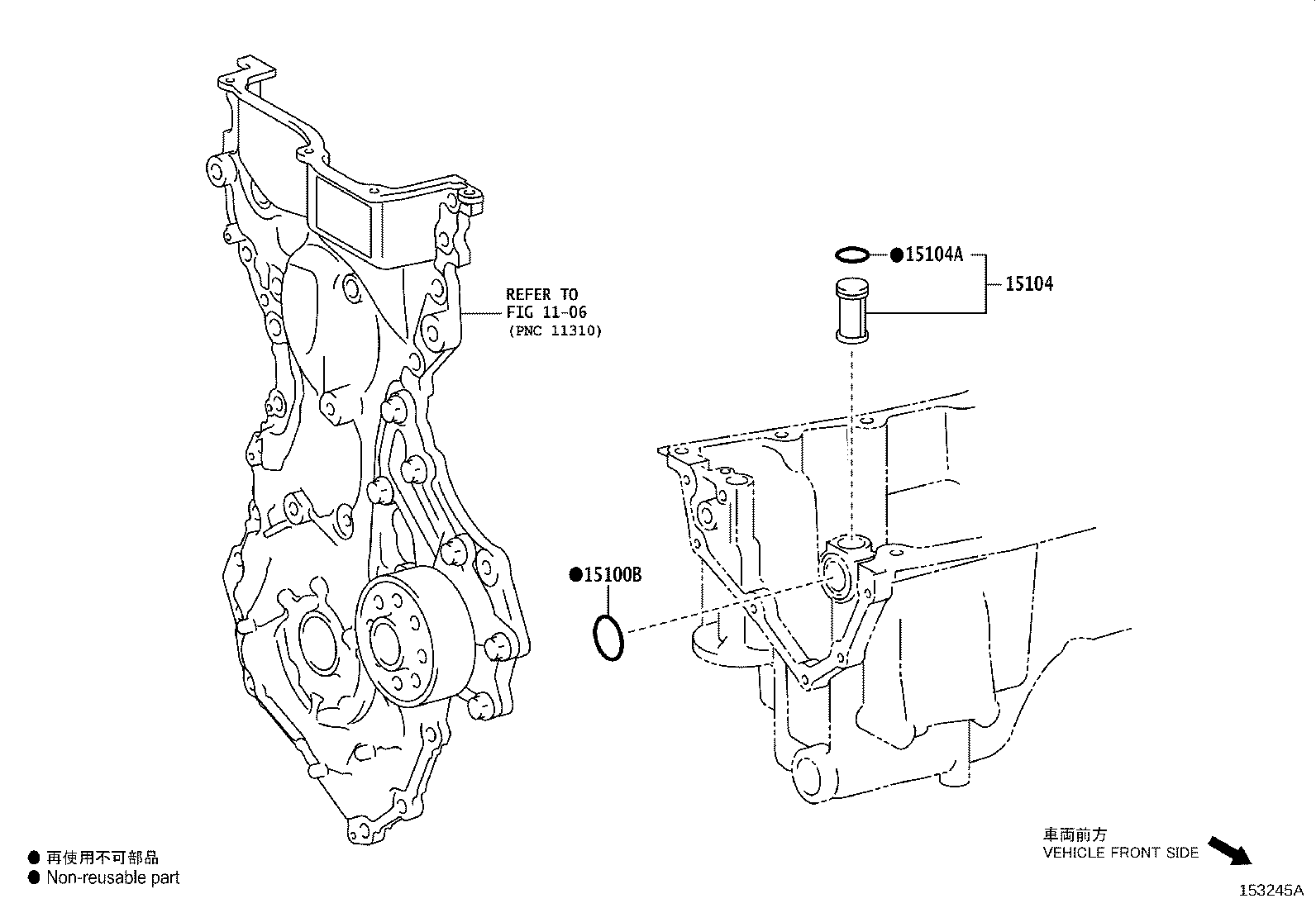

Click highlighted areas on diagram

diagram 1106 15100B 15104 15104A
Part # Description Qty Price
15100B - RING, O(FOR OIL PUMP)
90301-T0059

1NRFE..NSP150

 1
15104 - STRAINER SUB-ASSY, OIL
15104-0Y010

1NRFE..NSP150

 1
15104A - RING, O(FOR OIL STRAINER)
90301-T0061

1NRFE..NSP150

 1
Linked diagrams
1106
