NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

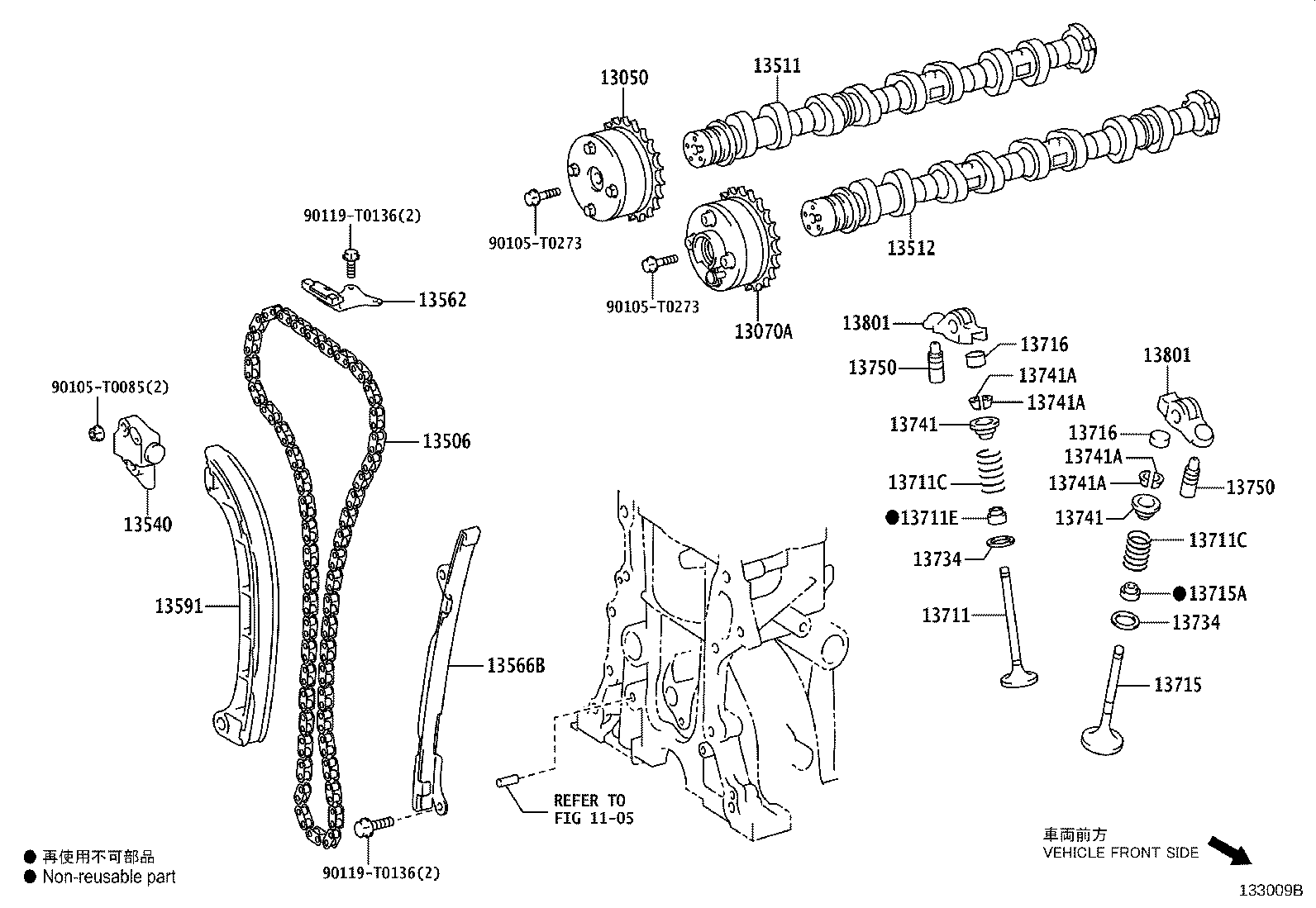

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-0Y020 |
1NRFE..NSP150 |
1 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-0Y020 |
1NRFE..NSP150 |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-0Y040 |
1NRFE..NSP150 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-0Y050 |
1NRFE..NSP150 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-0Y050 |
1NRFE..NSP150 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-0Y010 |
1NRFE..NSP150 |
1 | ||
| 13562 - DAMPER, CHAIN VIBRATION, NO.2 | ||||
| 13562-0Y020 |
1NRFE..NSP150 |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-0Y010 |
1NRFE..NSP150 |
1 | ||
| 13591 - ARM, TIMING CHAIN TENSION | ||||
| 13591-0Y010 |
1NRFE..NSP150 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-0Y020 |
1NRFE..NSP150 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-T0045 |
1NRFE..NSP150 |
16 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-T0045 |
1NRFE..NSP150 |
16 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90080-31085 |
1NRFE..NSP150 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0Y020 |
1NRFE..NSP150 |
8 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90080-31084 |
1NRFE..NSP150 |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0C030 |
1NRFE..NSP150 |
16 | ||
| 13716-0C020 |
1NRFE,2NRFE..NSP15# |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-0C030 |
1NRFE..NSP150 |
16 | ||
| 13716-0C020 |
1NRFE,2NRFE..NSP15# |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-0C010 |
1NRFE..NSP150 |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-0C010 |
1NRFE..NSP150 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0Y010 |
1NRFE..NSP150 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-0Y010 |
1NRFE..NSP150 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1NRFE..NSP150 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1NRFE..NSP150 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1NRFE..NSP150 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1NRFE..NSP150 |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0C040 |
1NRFE..NSP150 |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-0C040 |
1NRFE..NSP150 |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0C030 |
1NRFE..NSP150 |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-0C030 |
1NRFE..NSP150 |
16 | ||
| Common parts | ||||
| 90105-T0085 | ||||
| 90105-T0273 | ||||
| 90119-T0136 | ||||
| Linked diagrams | ||||
| 1105 | ||||
