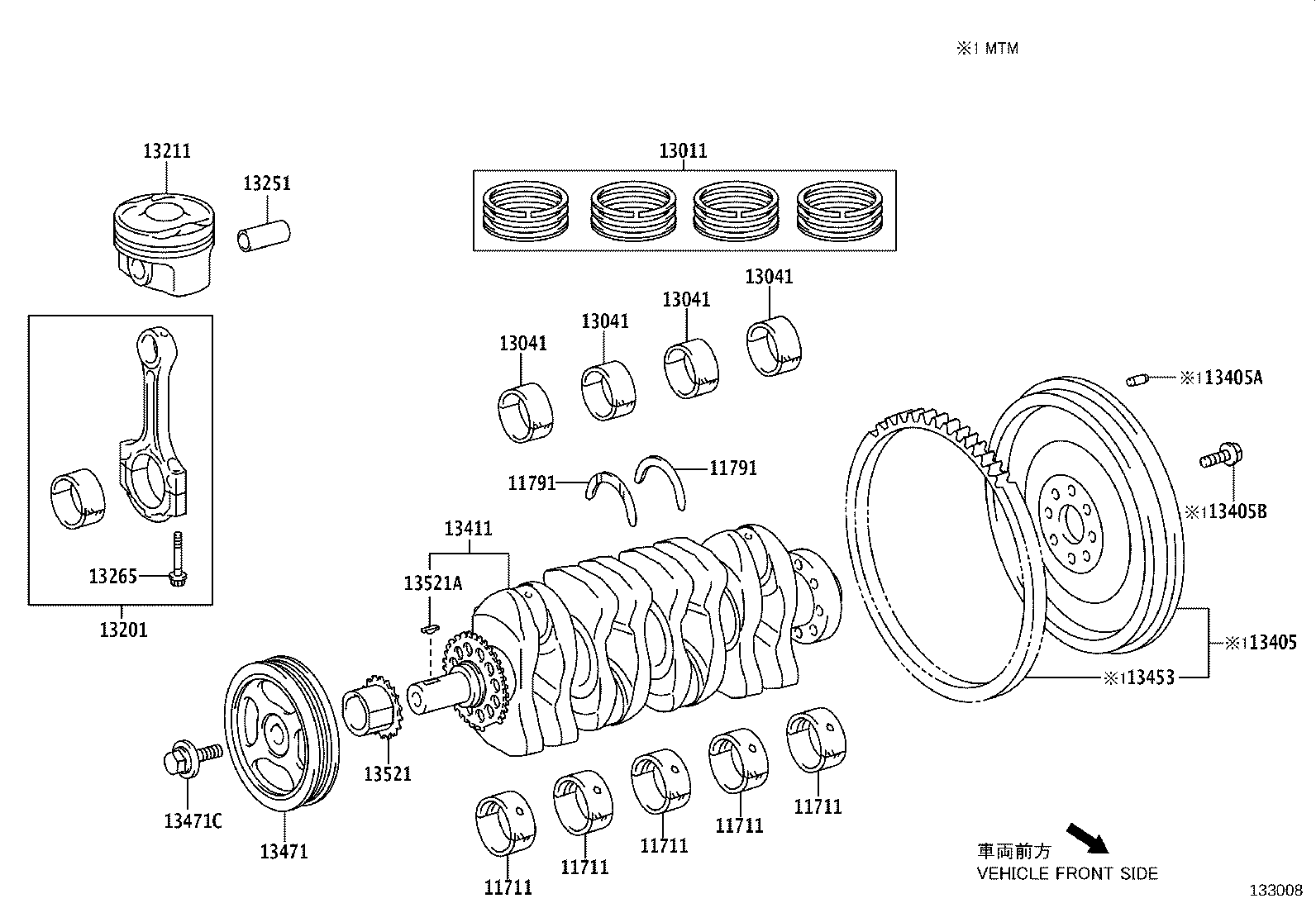

Toyota Limo/vios NSP150 CRANKSHAFT & PISTON

Part #	Description	Period	Qty
11711 - BEARING, CRANKSHAFT
11701-0Y03005	1NRFE..NSP150 MARK5,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03002	1NRFE..NSP150 MARK2,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03004	1NRFE..NSP150 MARK4,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03003	1NRFE..NSP150 MARK3,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11711 - BEARING, CRANKSHAFT
11701-0Y03005	1NRFE..NSP150 MARK5,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03002	1NRFE..NSP150 MARK2,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03004	1NRFE..NSP150 MARK4,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03003	1NRFE..NSP150 MARK3,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11711 - BEARING, CRANKSHAFT
11701-0Y03005	1NRFE..NSP150 MARK5,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03002	1NRFE..NSP150 MARK2,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03004	1NRFE..NSP150 MARK4,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03003	1NRFE..NSP150 MARK3,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11711 - BEARING, CRANKSHAFT
11701-0Y03005	1NRFE..NSP150 MARK5,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03002	1NRFE..NSP150 MARK2,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03004	1NRFE..NSP150 MARK4,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03003	1NRFE..NSP150 MARK3,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11711 - BEARING, CRANKSHAFT
11701-0Y03005	1NRFE..NSP150 MARK5,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03002	1NRFE..NSP150 MARK2,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03004	1NRFE..NSP150 MARK4,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11701-0Y03003	1NRFE..NSP150 MARK3,REFER REPAIR MANUAL	12/2019 - 09/2021	5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-0Y040	1NRFE..NSP150 STD	12/2019 - 09/2021	2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-0Y040	1NRFE..NSP150 STD	12/2019 - 09/2021	2
13011 - RING SET, PISTON
13011-0Y030	1NRFE..NSP150 STD	12/2019 - 09/2021	1
13041 - BEARING, CONNECTING ROD
13041-0Y04003	1NRFE..NSP150 MARK3,REFER REPAIR MANUAL	12/2019 - 09/2021	4
13041-0Y04001	1NRFE..NSP150 MARK1,REFER REPAIR MANUAL	12/2019 - 09/2021	4
13041-0Y04002	1NRFE..NSP150 MARK2,REFER REPAIR MANUAL	12/2019 - 09/2021	4
13041 - BEARING, CONNECTING ROD
13041-0Y04003	1NRFE..NSP150 MARK3,REFER REPAIR MANUAL	12/2019 - 09/2021	4
13041-0Y04001	1NRFE..NSP150 MARK1,REFER REPAIR MANUAL	12/2019 - 09/2021	4
13041-0Y04002	1NRFE..NSP150 MARK2,REFER REPAIR MANUAL	12/2019 - 09/2021	4
13041 - BEARING, CONNECTING ROD
13041-0Y04003	1NRFE..NSP150 MARK3,REFER REPAIR MANUAL	12/2019 - 09/2021	4
13041-0Y04001	1NRFE..NSP150 MARK1,REFER REPAIR MANUAL	12/2019 - 09/2021	4
13041-0Y04002	1NRFE..NSP150 MARK2,REFER REPAIR MANUAL	12/2019 - 09/2021	4
13041 - BEARING, CONNECTING ROD
13041-0Y04003	1NRFE..NSP150 MARK3,REFER REPAIR MANUAL	12/2019 - 09/2021	4
13041-0Y04001	1NRFE..NSP150 MARK1,REFER REPAIR MANUAL	12/2019 - 09/2021	4
13041-0Y04002	1NRFE..NSP150 MARK2,REFER REPAIR MANUAL	12/2019 - 09/2021	4
13201 - ROD SUB-ASSY, CONNECTING
13201-09C30	1NRFE..NSP150	12/2019 - 09/2021	4
13211 - PISTON
13211-0Y011	1NRFE..NSP150	12/2019 - 09/2021	4
13251 - PIN, PISTON
13251-0Y030	1NRFE..NSP150	12/2019 - 09/2021	4
13265 - BOLT, CONNECTING ROD
13265-0Y020	1NRFE..NSP150 (L)	12/2019 - 09/2021	8
13265-21020	1NRFE..NSP150 (J)	12/2019 - 09/2021	8
13405 - FLYWHEEL SUB-ASSY
13405-0Y110	1NRFE..NSP150	12/2019 - 09/2021	1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-T0007	1NRFE..NSP150 L=18,OD=8	12/2019 - 09/2021	3
13405B - BOLT, FLYWHEEL SETTING
90913-01029	1NRFE..NSP150	12/2019 - 09/2021	8
13411 - CRANKSHAFT
13401-0Y180	1NRFE..NSP150	12/2019 - 09/2021	1
13453 - GEAR, FLYWHEEL RING
13453-0Y050	1NRFE..NSP150	12/2019 - 09/2021	1
13471 - PULLEY, CRANKSHAFT
13470-0Y020	1NRFE..NSP150	12/2019 - 09/2021	1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-T0444	1NRFE..NSP150	12/2019 - 09/2021	1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-0Y040	1NRFE..NSP150	12/2019 - 09/2021	1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-04001	1NRFE..NSP150	12/2019 - 09/2021	1

NSP150L-EEMDKU (2019)

(1912- )
