NSP150L-EEMDKU (2019)

Toyota Limo/Vios

Production Dec 2019 - Sep 9999
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

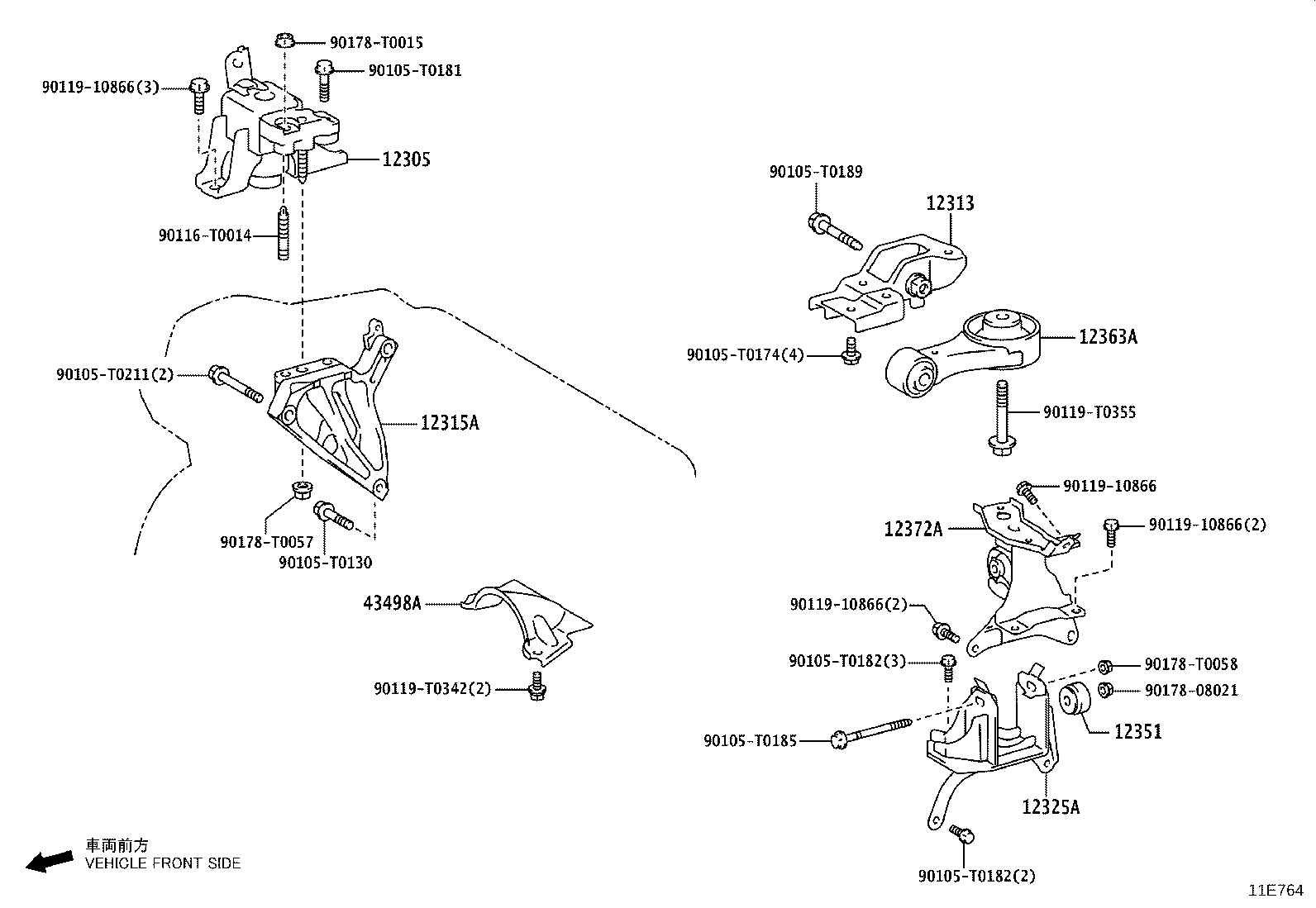

ILLUST NO. 1 OF 2(1912- )1NRFE,2NRFE..5F

Click highlighted areas on diagram

diagram 12305 12313 12315A 12325A 12351 12363A 12372A 43498A 90105T0130 90105T0174 90105T0181 90105T0182 90105T0182 90105T0185 90105T0189 90105T0211 90116T0014 9011910866 9011910866 9011910866 9011910866 90119T0342 90119T0355 9017808021 90178T0015 90178T0057 90178T0058
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0Y110

1NRFE..NSP150

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-0M010

1NRFE..NSP150

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0Y010

1NRFE..NSP150

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0Y311

1NRFE..NSP150

 1
12351 - DAMPER, ENGINE MOUNTING
12351-0Y120

1NRFE..NSP150

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0M080

1NRFE..NSP150

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0Y251

1NRFE..NSP150

 1
43498A - INSULATOR, DRIVE SHAFT HEAT, NO.1
43498-52130

NSP150

 1
Common parts
90105-T0130
90105-T0174
90105-T0181
90105-T0182
90105-T0185
90105-T0189
90105-T0211
90116-T0014
90119-10866
90119-T0342
90119-T0355
90178-08021
90178-T0015
90178-T0057
90178-T0058
