NSP150L-EEMDKU (2019)
Toyota Limo/Vios
Production
Dec 2019
-
Sep 9999
Engine
1NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(1912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-0Y020 |
1NRFE..NSP150 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-09710 |
1NRFE..NSP150 |
1 | ||
| 11401L - SEAL, ENGINE REAR OIL | ||||
| 90311-T0074 |
1NRFE..NSP150 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-T2013 |
1NRFE..NSP150 |
10 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-04097 |
1NRFE..NSP150 L=12,OD=4.0 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
1NRFE..NSP150 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
1NRFE..NSP150 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-08120 |
1NRFE..NSP150 |
2 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-0Y020 |
1NRFE..NSP150 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-0Y020 |
1NRFE..NSP150 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90301-T0060 |
1NRFE..NSP150 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-0Y040 |
1NRFE..NSP150 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-T0017 |
1NRFE..NSP150 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-T0024 |
1NRFE..NSP150 |
1 | ||
| 12101C - RING, O(FOR OIL PAN) | ||||
| 90301-T0055 |
1NRFE..NSP150 NO.1:REFER ILLUST. |
1 | ||
| 90301-T0057 |
1NRFE..NSP150 NO.2:REFER ILLUST. |
1 | ||
| 12101C - RING, O(FOR OIL PAN) | ||||
| 90301-T0055 |
1NRFE..NSP150 NO.1:REFER ILLUST. |
1 | ||
| 90301-T0057 |
1NRFE..NSP150 NO.2:REFER ILLUST. |
1 | ||
| 12101L - GASKET NO.1(FOR OIL PAN) | ||||
| 90430-T0023 |
1NRFE..NSP150 |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-0Y030 |
1NRFE..NSP150 |
1 | ||
| 12122 - PLATE, OIL PAN BAFFLE, NO.2 | ||||
| 12122-0Y010 |
1NRFE..NSP150 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-0Y010 |
1NRFE..NSP150 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-0Y040 |
1NRFE..NSP150 |
4 | ||
| Common parts | ||||
| 90105-T0171 | ||||
| 90110-T0002 | ||||
| 90119-T0260 | ||||
| 90119-T0342 | ||||
| 90250-T0019 | ||||
| Linked diagrams | ||||
| 1501 | ||||
| 1502 | ||||

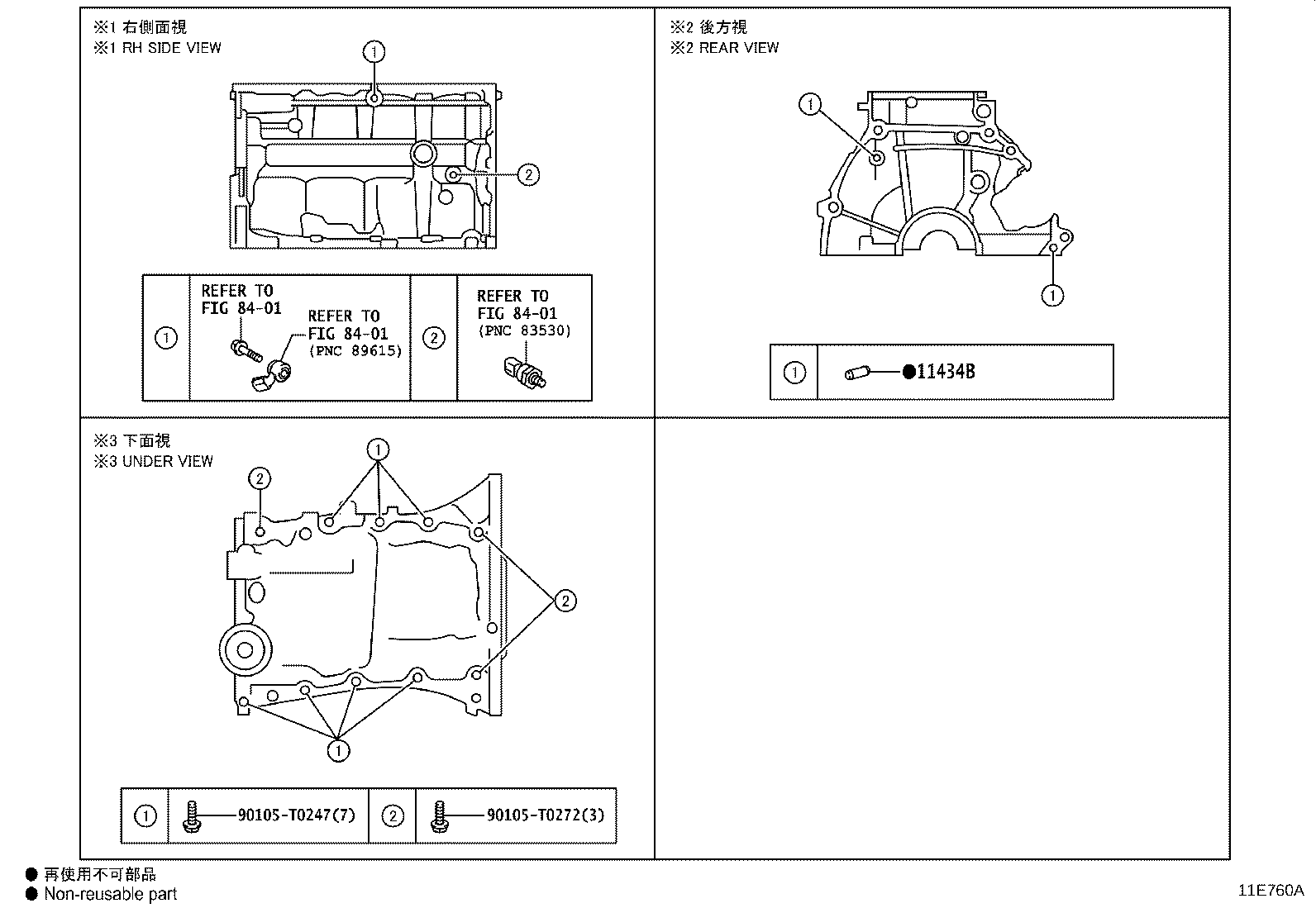

ILLUST NO. 2 OF 2(1912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-T0018 |
1NRFE..NSP150 L=22,OD=10 |
2 | ||
| Common parts | ||||
| 90105-T0247 | ||||
| 90105-T0272 | ||||
| Linked diagrams | ||||
| 8401 | ||||
