NSP150L-EEMDKU (2019)
Toyota Limo/Vios
ILLUST NO. 1 OF 2(1912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-09570 |
1NRFE..NSP150 |
1 | ||
| 11101-09570 |
1NRFE,2NRFE..NSP15# |
1 | ||
| 11101-09850 |
1NRFE,2NRFE..NSP15#..5F |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-T2012 |
1NRFE..NSP150 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
1NRFE..NSP150 |
10 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0Y060 |
1NRFE..NSP150 NO.2:REFER ILLUST. |
1 | ||
| 15330-0Y050 |
1NRFE..NSP150 NO.1:REFER ILLUST. |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0Y060 |
1NRFE..NSP150 NO.2:REFER ILLUST. |
1 | ||
| 15330-0Y050 |
1NRFE..NSP150 NO.1:REFER ILLUST. |
1 | ||
| 11101W - SENSOR, CRANK POSITION, NO.1 | ||||
| 90919-T5002 |
1NRFE..NSP150 |
2 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11103-0Y040 |
1NRFE..NSP150 |
1 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-T0271 |
1NRFE..NSP150 NO.2:REFER ILLUST. |
17 | ||
| 90119-T0443 |
1NRFE..NSP150 NO.1:REFER ILLUST. |
5 | ||
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-T0271 |
1NRFE..NSP150 NO.2:REFER ILLUST. |
17 | ||
| 90119-T0443 |
1NRFE..NSP150 NO.1:REFER ILLUST. |
5 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-0Y030 |
1NRFE..NSP150 |
1 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-0Y030 |
1NRFE..NSP150 STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-0Y030 |
1NRFE..NSP150 STD |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-13005 |
1NRFE..NSP150 L=12.5,OD=8 |
10 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11004 |
1NRFE..NSP150 NO.1:REFER ILLUST. |
2 | ||
| 90253-12002 |
1NRFE..NSP150 NO.2:REFER ILLUST. |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11004 |
1NRFE..NSP150 NO.1:REFER ILLUST. |
2 | ||
| 90253-12002 |
1NRFE..NSP150 NO.2:REFER ILLUST. |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-0Y020 |
1NRFE..NSP150 |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-0Y020 |
1NRFE..NSP150 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0Y030 |
1NRFE..NSP150 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0Y030 |
1NRFE..NSP150 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-0H020 |
1NRFE..NSP150 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90080-43027 |
1NRFE..NSP150 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0Y070 |
1NRFE..NSP150 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-0Y060 |
1NRFE..NSP150 |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-0Y110 |
1NRFE..NSP150 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90068-14041 |
1NRFE..NSP150 |
2 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90068-14041 |
1NRFE..NSP150 |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-0Y010 |
1NRFE..NSP150 |
1 | ||
| Common parts | ||||
| 90105-T0125 | ||||
| 90105-T0347 | ||||
| 90119-T0136 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 8404 | ||||
| 8716 | ||||

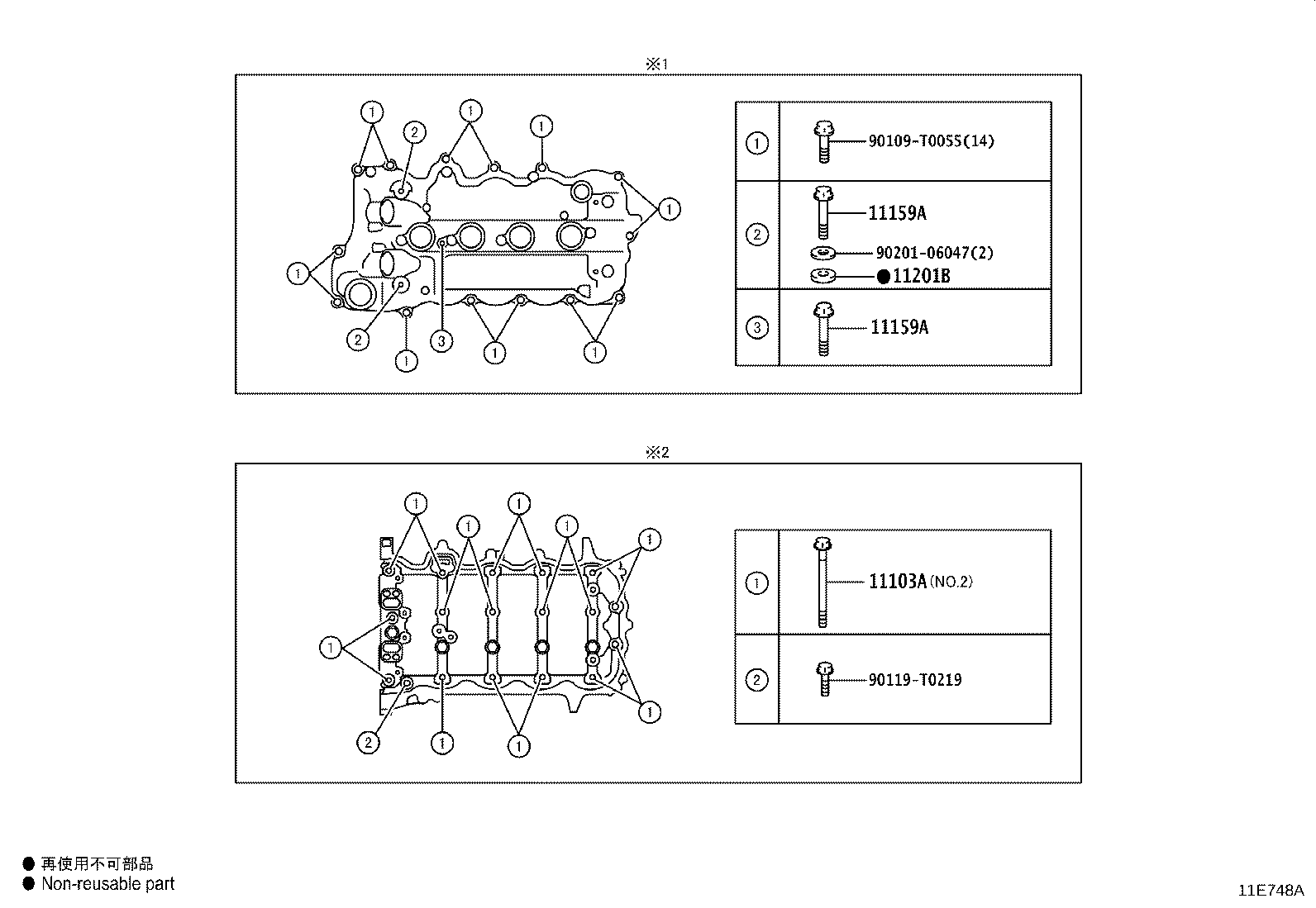

ILLUST NO. 2 OF 2(1912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11103A - BOLT(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-T0271 |
1NRFE..NSP150 NO.2:REFER ILLUST. |
17 | ||
| 90119-T0443 |
1NRFE..NSP150 NO.1:REFER ILLUST. |
5 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-T0347 |
1NRFE..NSP150 |
3 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-T0347 |
1NRFE..NSP150 |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-T0002 |
1NRFE..NSP150 |
2 | ||
| Common parts | ||||
| 90109-T0055 | ||||
| 90119-T0219 | ||||
| 90201-06047 | ||||
