UZZ40R-DKAQKQ (2001)
Toyota Lexus Sc430
Production
May 2001
-
Aug 2005
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105-0508)ARL,EUR ; (0408-0508)GCC ; (0508-)

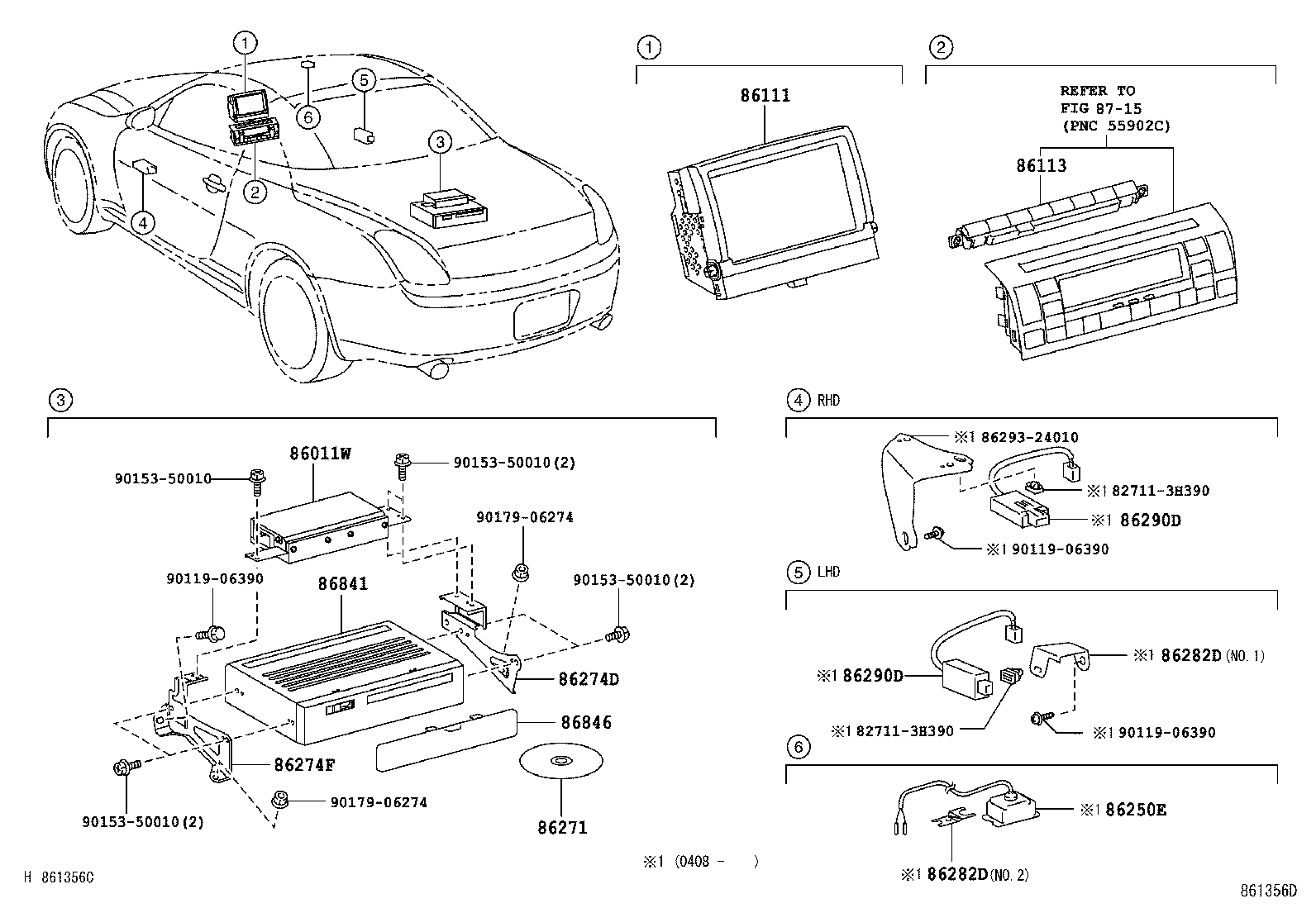

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011W - AMPLIFIER, NAVIGATION | ||||
| 86011-24011 |
UZZ40..ARL,EUR |
1 | ||
| 86011-24010 |
UZZ40 |
1 | ||
| 86111 - MULTI-DISPLAY | ||||
| 86111-24111 |
UZZ40..ARL,EUR FUJITSU TEN |
1 | ||
| 86111-24140 |
UZZ40 FUJITSU TEN |
1 | ||
| 86111-24110 |
UZZ40..ARL,EUR FUJITSU TEN |
1 | ||
| 86113 - BLOCK, MULTI-DISPLAY JUNCTION | ||||
| 86113-24030 |
UZZ40..RHD |
1 | ||
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-24030 |
UZZ40 |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-24111 |
UZZ40..ARL |
1 | ||
| 86271-33071 |
UZZ40..ARL |
1 | ||
| 86271-24110 |
UZZ40..ARL |
1 | ||
| 86271-33070 |
UZZ40..ARL |
1 | ||
| 86274D - BRACKET, DISC PLAYER | ||||
| 86274-24261 |
UZZ40..ARL,EUR |
1 | ||
| 86274F - BRACKET, DISC PLAYER, NO.2 | ||||
| 86274-24251 |
UZZ40..ARL,EUR |
1 | ||
| 86282D - BRACKET, MICROPHONE | ||||
| 86282-24050 |
UZZ40..RHD NO.2 |
1 | ||
| 86282D - BRACKET, MICROPHONE | ||||
| 86282-24050 |
UZZ40..RHD NO.2 |
1 | ||
| 86290D - AMPLIFIER ASSY, MICROPHONE | ||||
| 86290-24030 |
UZZ40 |
1 | ||
| 86290D - AMPLIFIER ASSY, MICROPHONE | ||||
| 86290-24030 |
UZZ40 |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86841-33070 |
UZZ40..ARL |
1 | ||
| 86841-24020 |
UZZ40..ARL |
1 | ||
| 86846 - PLATE, NAVIGATION COMPUTER | ||||
| 86846-24010B0 |
UZZ40..ARL,EUR MD.CHARCOAL,TRIM0#,20,21 |
1 | ||
| Common parts | ||||
| 82711-3H390 | ||||
| 86293-24010 | ||||
| 90119-06390 | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8715 | ||||
