UZZ40R-DKAQKQ (2001)

Toyota Lexus Sc430

Production May 2001 - Aug 2005
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0508)

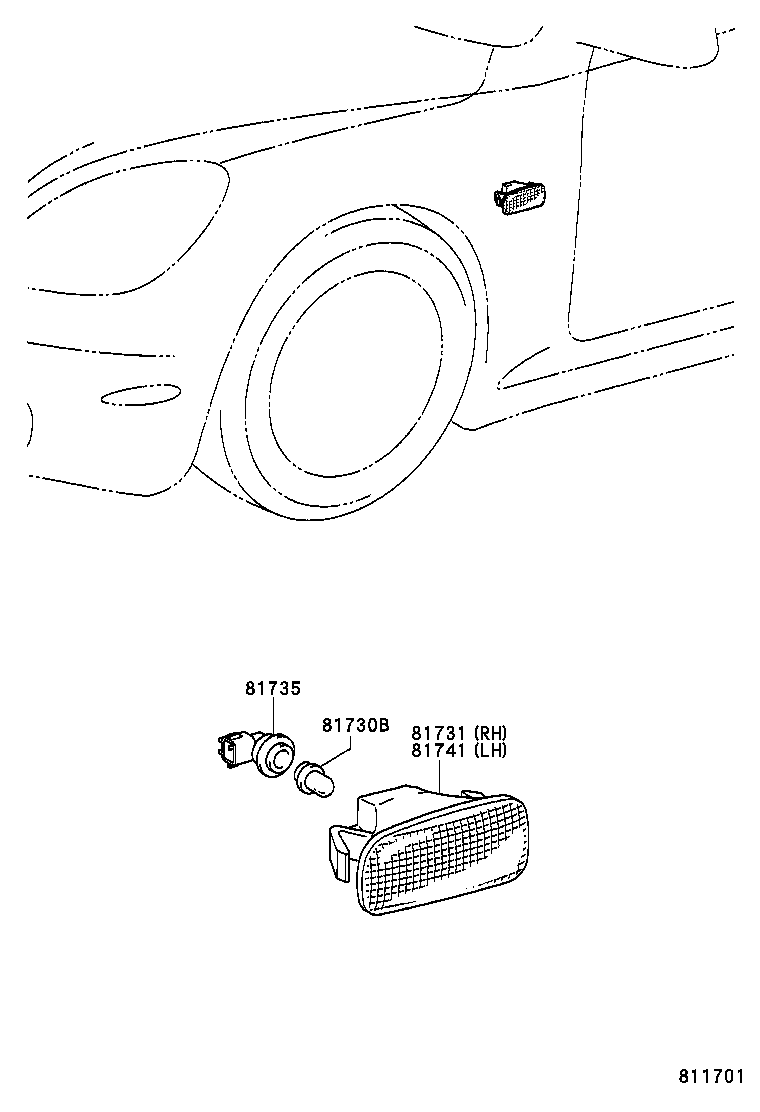

Click highlighted areas on diagram

diagram 81730B 81731 81735 81741
Part # Description Qty Price
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-12050

UZZ40

12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-51010

UZZ40

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
90075-60005

UZZ40

 2
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81731-51010

UZZ40

 1
