UZZ40R-DKAQKQ (2001)
Toyota Lexus Sc430
Production
May 2001
-
Aug 2005
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105-0508)

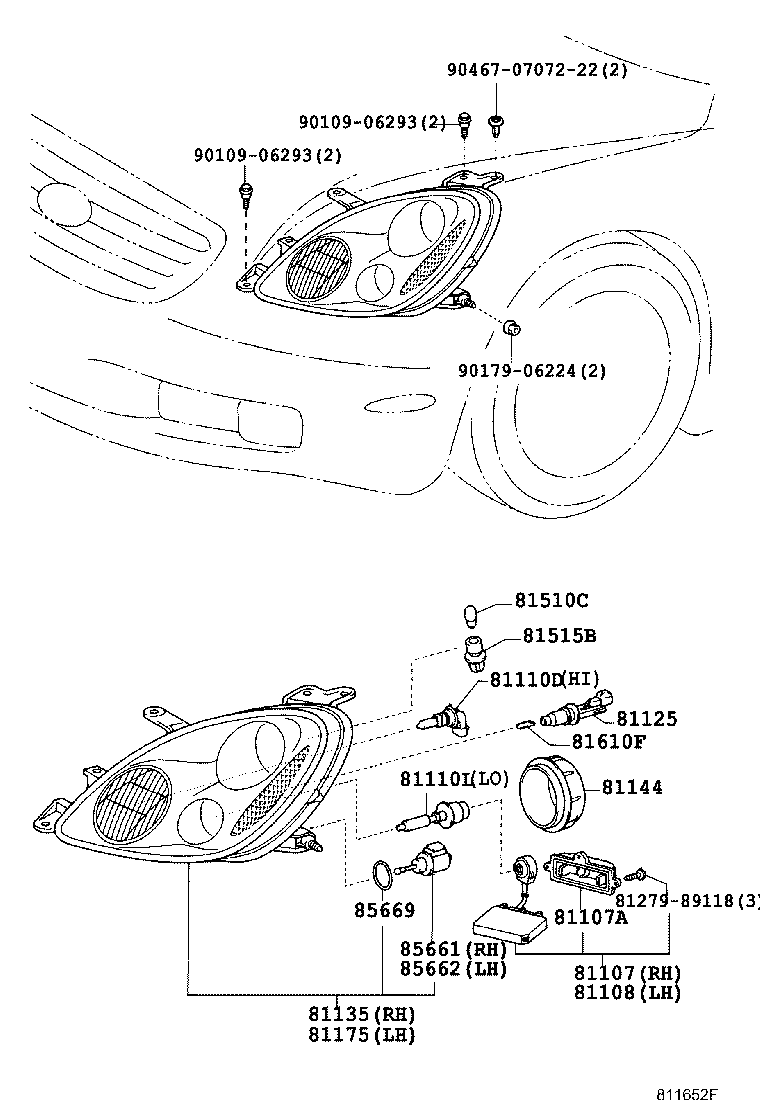

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-24110 |
UZZ40 |
1 | ||
| 81107A - COVER, HEADLAMP LIGHT CONTROL COMPUTER | ||||
| 81135-24110 |
UZZ40 |
2 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-24110 |
UZZ40 |
1 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13066 |
UZZ40 12V 65W,HALOGEN |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20005 |
UZZ40 85V 35W |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-24110 |
UZZ40 |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-24110 |
UZZ40..RHD |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-66006 |
UZZ40 |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-24110 |
UZZ40..RHD |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
UZZ40 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
UZZ40 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
UZZ40 12V 5W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-50040 |
UZZ40 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-50040 |
UZZ40 |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
UZZ40 |
2 | ||
| Common parts | ||||
| 81279-89118 | ||||
| 90109-06293 | ||||
| 90179-06224 | ||||
| 90467-0707222 | ||||
