UZZ40R-DKAQKQ (2001)
Toyota Lexus Sc430
Production
May 2001
-
Aug 2005
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105-0508)ARL,GCC ; (0208-0508)LHD..EUR

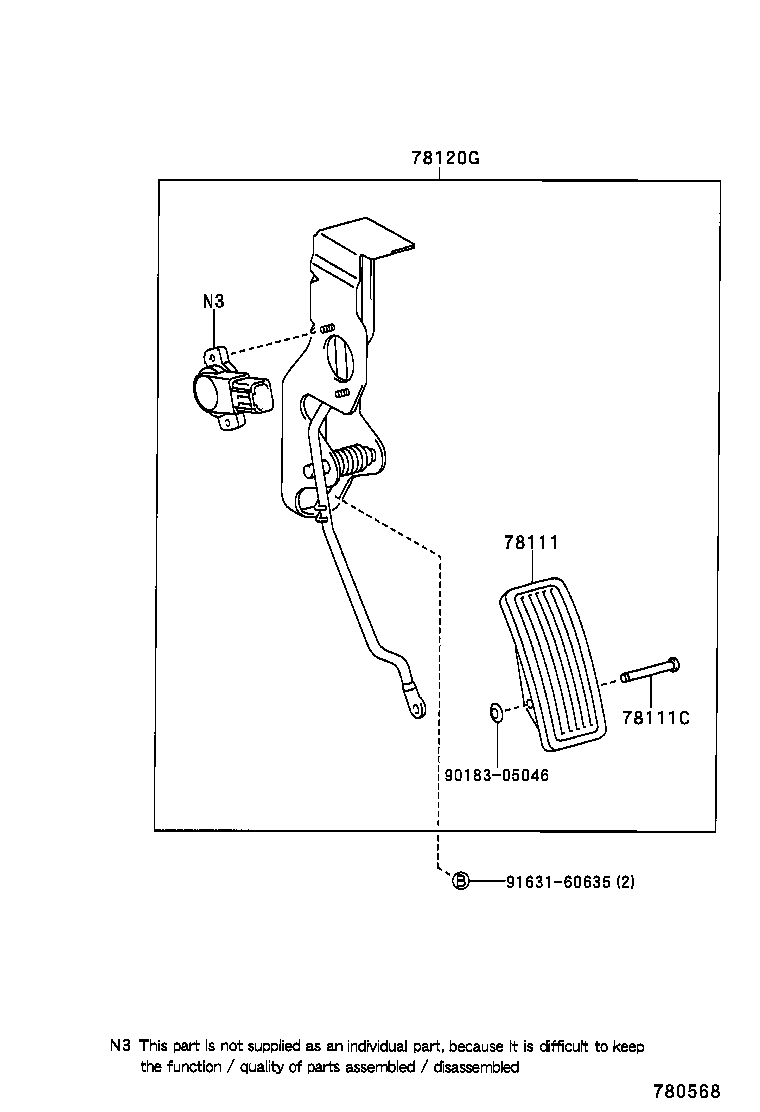

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-22020 |
UZZ40..RHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90241-05022 |
UZZ40 |
1 | ||
| 78119 - STOPPER, ACCELERATOR PEDAL ROD | ||||
| 78119-30110 |
UZZ40..ARL |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78010-24010 |
UZZ40..ARL |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90179-06216 | ||||
| 90183-05046 | ||||
| 91631-60635 | ||||
(0105-0508)EUR ; (0508- )

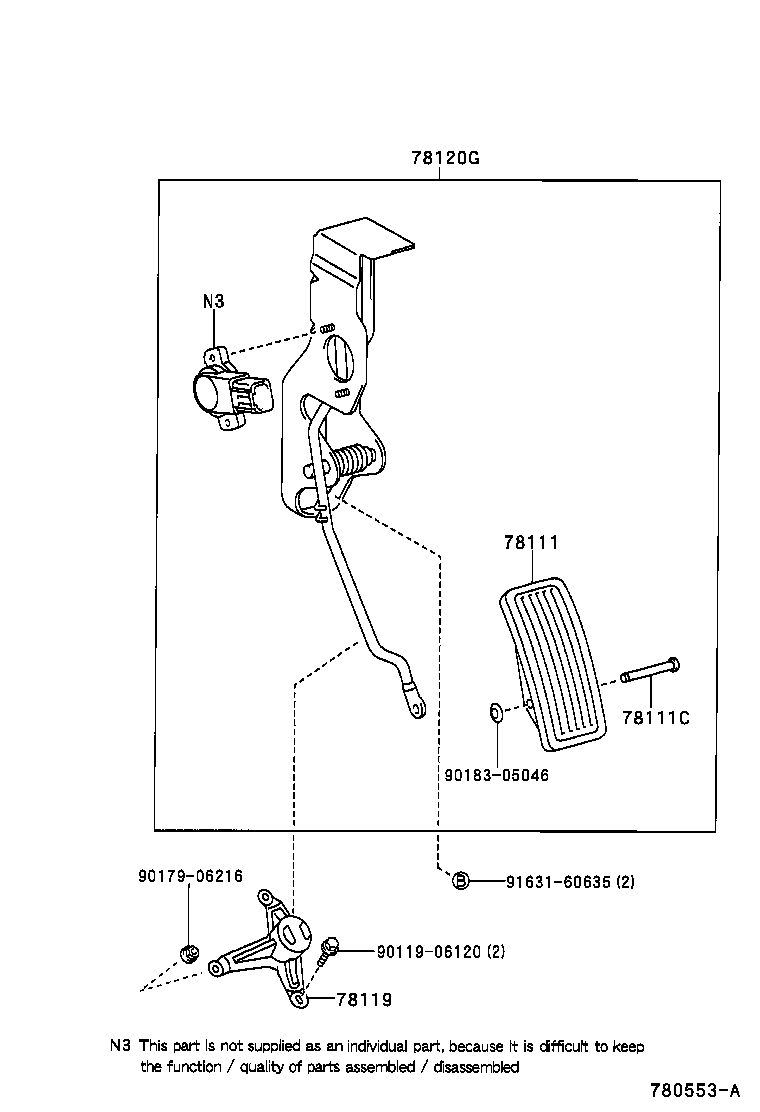

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-22020 |
UZZ40..RHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90241-05022 |
UZZ40 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78010-24010 |
UZZ40..ARL |
1 | ||
| Common parts | ||||
| 90183-05046 | ||||
| 91631-60635 | ||||
