UZZ40R-DKAQKQ (2001)

Toyota Lexus Sc430

Production May 2001 - Aug 2005
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

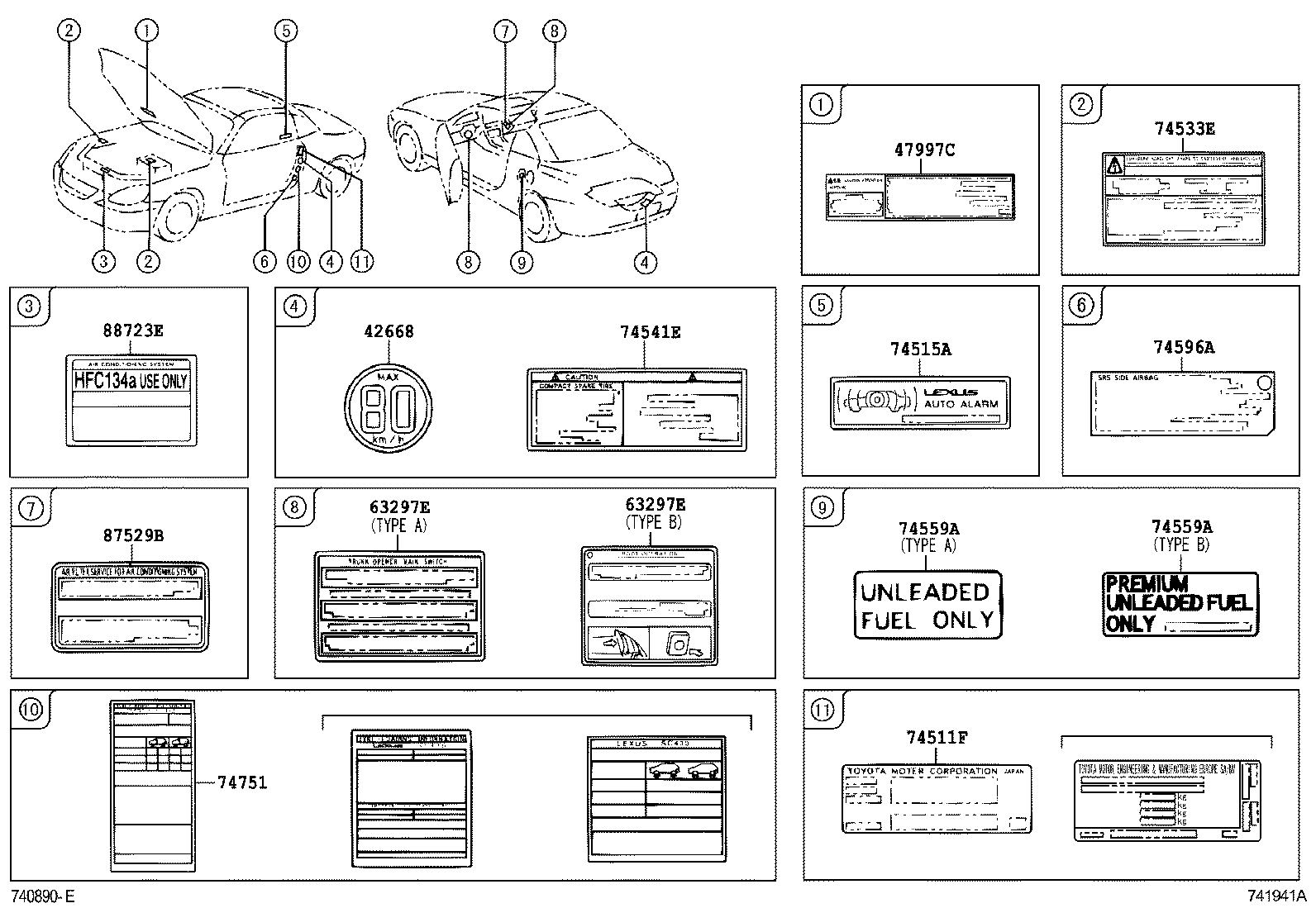

ILLUST NO. 1 OF 2(0105-0508)

Click highlighted areas on diagram

diagram 42668 47997C 63297E 63297E 74511F 74515A 74533E 74541E 74559A 74559A 74596A 74751 87529B 88723E
Part # Description Qty Price
42668 - LABEL, COMPACT SPARE TIRE CAUTION
42668-20020

UZZ40

 1
63297E - LABEL, SLIDING ROOF CAUTION
63297-24010

UZZ40..ARL,EUR

TYPE A:REFER TO ILLUSTRATION

 1
63297E - LABEL, SLIDING ROOF CAUTION
63297-24010

UZZ40..ARL,EUR

TYPE A:REFER TO ILLUSTRATION

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-48030

UZZ40..ARL

*111

 1
74515A - PLATE, THEFT WARNING
74515-50020

UZZ40

 2
74533E - LABEL, HEADLAMP VOLTAGE CAUTION
74533-50010

UZZ40

 2
74559A - PLATE, FUEL CAUTION
74559-14050

UZZ40

TYPE A:REFER TO ILLUSTRATION

 1
74559-50010

UZZ40..ARL

TYPE B:REFER TO ILLUSTRATION

 1
74559A - PLATE, FUEL CAUTION
74559-14050

UZZ40

TYPE A:REFER TO ILLUSTRATION

 1
74559-50010

UZZ40..ARL

TYPE B:REFER TO ILLUSTRATION

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-12011

UZZ40..ARL,EUR

 2
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-24190

UZZ40..ARL

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

UZZ40

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-28220

UZZ40

 1

ILLUST NO. 2 OF 2(0105- )

Click highlighted areas on diagram

diagram 11278B 11296C 11298B 63297E 74561A 88723E
Part # Description Qty Price
11278B - LABEL, ENGINE EMISSION COMPLIANCE INFORMATION
11278-16050

3UZFE..UZZ40..ARL

 1
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-50300

3UZFE..UZZ40..ARL

 1
63297E - LABEL, SLIDING ROOF CAUTION
63297-24010

UZZ40..ARL,EUR

TYPE A:REFER TO ILLUSTRATION

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-28220

UZZ40

 1
