UZZ40R-DKAQKQ (2001)
Toyota Lexus Sc430
Production
May 2001
-
Aug 2005
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105-0508)RHD

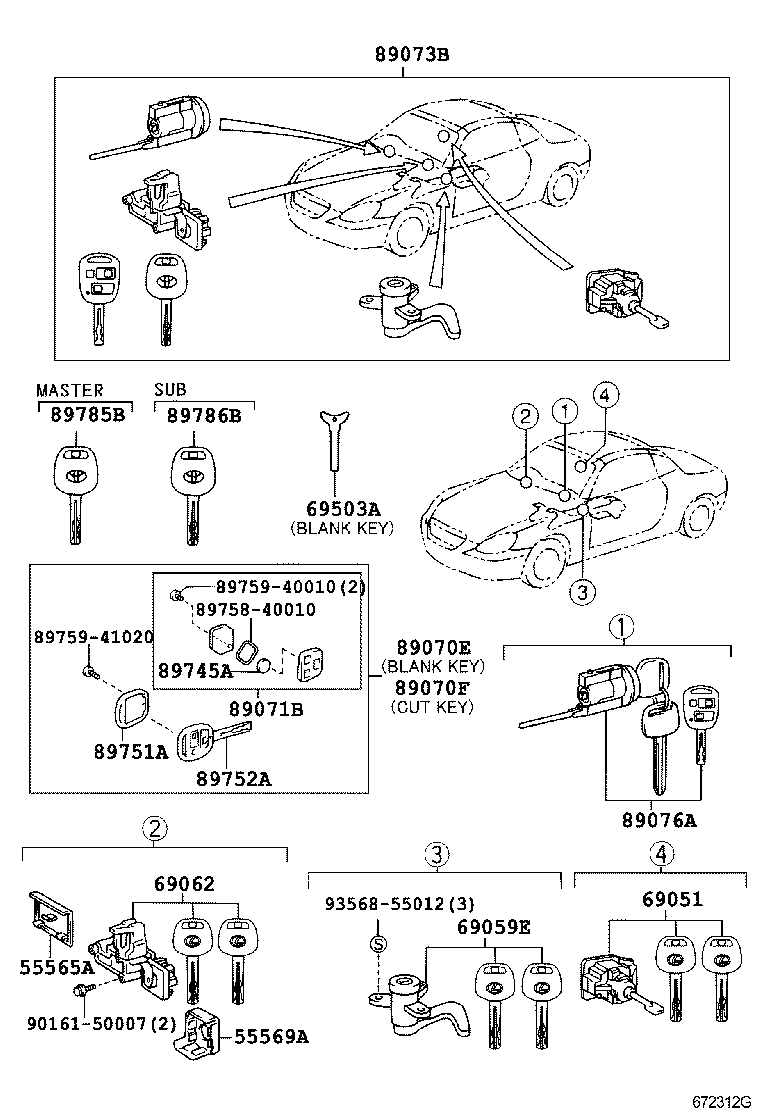

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55565A - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020A2 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 55565-22020C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 55569A - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030A2 |
UZZ40 ECRU,TRIM0# |
1 | ||
| 55569-22030C0 |
UZZ40 BLACK,TRIM20,21 |
1 | ||
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-24070 |
UZZ40..ARL |
1 | ||
| 69059E - CYLINDER & KEY SET, CONSOLE COMPARTMENT LOCK | ||||
| 69059-24010 |
UZZ40 |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-24070 |
UZZ40 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00233 |
UZZ40 MASTER KEY,CARD TYPE |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-50750 |
UZZ40..ARL |
1 | ||
| 89070-24220 |
UZZ40..ARL SINGAPORE SPEC |
1 | ||
| 89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY) | ||||
| 89070-24270 |
UZZ40..ARL SINGAPORE SPEC |
1 | ||
| 89070-5A060 |
UZZ40..ARL |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-24030 |
UZZ40..ARL SINGAPORE SPEC |
1 | ||
| 89071-50260 |
UZZ40..ARL |
1 | ||
| 89073B - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE) | ||||
| 89076-24050 |
UZZ40..ARL |
1 | ||
| 89076A - IGN CYLINDER SET, LOCK W/TRANSMITTER HOUSING | ||||
| 89076-24070 |
UZZ40..ARL,GCC |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-40010 |
UZZ40..ARL,GCC |
2 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-50090 |
UZZ40..ARL SINGAPORE SPEC |
2 | ||
| 89751-50100 |
UZZ40..ARL,GCC |
2 | ||
| 89752A - CASE, TRANSMITTER HOUSING | ||||
| 89752-33070 |
UZZ40 MASTER KEY(BLANK) |
1 | ||
| 89752-33080 |
UZZ40 MASTER KEY(CUT) |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-50130 |
UZZ40..ARL,GCC CUT KEY |
1 | ||
| 89785-50110 |
UZZ40..ARL,GCC BLANK KEY |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-50110 |
UZZ40..ARL,GCC BLANK KEY |
1 | ||
| 89786-50130 |
UZZ40..ARL,GCC CUT KEY |
1 | ||
| Common parts | ||||
| 89758-40010 | ||||
| 89759-40010 | ||||
| 89759-41020 | ||||
| 90161-50007 | ||||
| 93568-55012 | ||||
