LEXUS SC430
UZZ40R-DKAQKQ (2001)
6701 - FRONT DOOR PANEL & GLASS

UZZ40R-DKAQKQ (2001)

Toyota Lexus Sc430

Production May 2001 - Aug 2005

Engine 3UZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0105- )

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-24080	UZZ40	05/2001 - 08/2005	1
67001A - CUSHION, FRONT DOOR PANEL
90541-09081	UZZ40 TYPE B:REFER TO ILLUSTRATION	05/2001 - 08/2005	2
90541-09069	UZZ40 TYPE A:REFER TO ILLUSTRATION	05/2001 - 08/2005	2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-24080	UZZ40	05/2001 - 08/2005	1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-24050	UZZ40	05/2001 - 08/2005	1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-24050	UZZ40	05/2001 - 08/2005	1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-24020	UZZ40	05/2001 - 08/2005	1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-24020	UZZ40	05/2001 - 08/2005	1
67443E - PLATE, FRONT DOOR INSIDE PANEL, RH
67443-24010	UZZ40	05/2001 - 08/2005	1
67444C - PLATE, FRONT DOOR INSIDE PANEL, LH
67444-24010	UZZ40	05/2001 - 08/2005	1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-24080	UZZ40	05/2001 - 08/2005	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-24040	UZZ40	05/2001 - 08/2005	1
67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH
67833-24070	UZZ40	05/2001 - 08/2005	1
67834 - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67834-24040	UZZ40	05/2001 - 08/2005	1
67837A - SEAL, FRONT DOOR VENT, RH
67837-24020	UZZ40	05/2001 - 08/2005	1
67838A - SEAL, FRONT DOOR VENT, LH
67837-24020	UZZ40	05/2001 - 08/2005	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-24051	UZZ40	05/2001 - 08/2005	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-24051	UZZ40	05/2001 - 08/2005	1
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-24020	UZZ40	05/2001 - 08/2005	1
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67864-24020	UZZ40	05/2001 - 08/2005	1
67867H - RETAINER, DOOR WEATHERSTRIP, RH
67867-12150	UZZ40	05/2001 - 08/2005	20
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-12150	UZZ40	05/2001 - 08/2005	20
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67867-12150	UZZ40 RH	05/2001 - 08/2005	2
67869-20030	UZZ40 LH	05/2001 - 08/2005	2
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-22030	UZZ40	05/2001 - 08/2001	8
67869-24010	UZZ40	08/2001 - 08/2005	8
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-22030	UZZ40	05/2001 - 08/2001	8
67869-24010	UZZ40	08/2001 - 08/2005	8
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-22030	UZZ40	05/2001 - 08/2001	8
67869-24010	UZZ40	08/2001 - 08/2005	8
67923 - CUSHION, FRONT DOOR STIFFENER, NO.1
67923-24030	UZZ40	05/2001 - 08/2005	2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-24200	UZZ40 *UVCT,T=5.0,GREEN	05/2001 - 08/2005	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-24200	UZZ40 *UVCT,T=5.0,GREEN	05/2001 - 08/2005	1
68141C - RUN, FRONT DOOR GLASS, RH
68141-24040	UZZ40	05/2001 - 08/2005	1
68151C - RUN, FRONT DOOR GLASS, LH
68141-24040	UZZ40	05/2001 - 08/2005	1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-24020	UZZ40	05/2001 - 08/2005	1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-24010	UZZ40	05/2001 - 08/2005	1
68621A - COVER, FRONT DOOR CHECK, RH
68621-33010	UZZ40	05/2001 - 08/2005	1
68622 - COVER, FRONT DOOR CHECK, LH
68622-33010	UZZ40	05/2001 - 08/2005	1
Common parts
67659-24030
67869-22030
90149-80033
90159-60550
90179-06159
90189-04200
90333-01011
90333-30009
90950-01620
90950-01801
90950-01865
91511-B0610

ILLUST NO. 2 OF 3(0105- )

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
62310C - WEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, RH
62310-24010C0	UZZ40 BLACK,TRIM20,21	05/2001 - 08/2005	1
62310-24010A0	UZZ40 ECRU,TRIM0#	05/2001 - 08/2005	1
62320B - WEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, LH
62320-24010A0	UZZ40 ECRU,TRIM0#	05/2001 - 08/2005	1
62320-24010C0	UZZ40 BLACK,TRIM20,21	05/2001 - 08/2005	1
62649 - BRACKET, SIDE TRIM
67649-24010	UZZ40	05/2001 - 08/2005	2
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-24040C0	UZZ40 BLACK,TRIM0#,20,21	05/2001 - 08/2005	1
67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH
67492-24040C0	UZZ40 BLACK,TRIM0#,20,21	05/2001 - 08/2005	1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-24480C0	UZZ40..ARL,EUR BLACK,TRIM20	05/2001 - 04/2004	1
67610-24470A0	UZZ40..ARL W(MARK LEVINSON SPEAKER),ECRU,TRIM0#	08/2001 - 08/2005	1
67610-24480A0	UZZ40..ARL,EUR ECRU,TRIM0#	05/2001 - 04/2004	1
67610-24480C1	UZZ40..ARL,EUR SADDLE TAN,TRIM21	05/2001 - 04/2004	1
67610-24470C0	UZZ40..ARL W(MARK LEVINSON SPEAKER),BLACK,TRIM20	08/2001 - 08/2005	1
67610-24470C1	UZZ40..ARL W(MARK LEVINSON SPEAKER),SADDLE TAN,TRIM21	08/2001 - 08/2005	1
67601L - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07066A4	UZZ40 ECRU,TRIM00,20,21	05/2001 - 08/2005	4
90467-0706622	UZZ40 BLACK,TRIM00,20,21	05/2001 - 08/2005	4
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-24460C1	UZZ40..ARL,EUR SADDLE TAN,TRIM21	05/2001 - 04/2004	1
67620-24460A0	UZZ40..ARL,EUR ECRU,TRIM0#	05/2001 - 04/2004	1
67620-24460C0	UZZ40..ARL,EUR BLACK,TRIM20	05/2001 - 04/2004	1
67620-24470A0	UZZ40..ARL W(MARK LEVINSON SPEAKER),ECRU,TRIM0#	08/2001 - 08/2005	1
67620-24470C1	UZZ40..ARL W(MARK LEVINSON SPEAKER),SADDLE TAN,TRIM21	08/2001 - 08/2005	1
67620-24470C0	UZZ40..ARL W(MARK LEVINSON SPEAKER),BLACK,TRIM20	08/2001 - 08/2005	1
67609D - GRILLE SUB-ASSY, FRONT DOOR SPEAKER, RH
67609-24020A0	UZZ40 ECRU,TRIM0#	05/2001 - 08/2005	1
67609-24020C0	UZZ40 BLACK,TRIM20,21	05/2001 - 08/2005	1
67609E - GRILLE SUB-ASSY, FRONT DOOR SPEAKER, LH
67709-24020C0	UZZ40 BLACK,TRIM20,21	05/2001 - 08/2005	1
67709-24020A0	UZZ40 ECRU,TRIM0#	05/2001 - 08/2005	1
67625 - BRACKET, FRONT DOOR TRIM, RH
67643-24020	UZZ40	05/2001 - 08/2005	1
67626 - BRACKET, FRONT DOOR TRIM, LH
67644-24010	UZZ40	05/2001 - 08/2005	1
67645 - BRACKET, FRONT DOOR ARMREST SET, RH
67645-24020	UZZ40	05/2001 - 08/2005	1
67646 - BRACKET, FRONT DOOR ARMREST SET, LH
67646-24020	UZZ40	05/2001 - 08/2005	1
67781A - ORNAMENT, FRONT DOOR TRIM
67781-24130E0	UZZ40 MD.BROWN,TRIM20,21,RH	05/2001 - 08/2005	1
67782-24140E0	UZZ40 MD.BROWN,TRIM20,21,LH	05/2001 - 08/2005	1
67781-24130B0	UZZ40 ECRU BROWN,TRIM0#,RH	05/2001 - 08/2005	1
67782-24140B0	UZZ40 ECRU BROWN,TRIM0#,LH	05/2001 - 08/2005	1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-24020	UZZ40	05/2001 - 12/2003	1
68171-24021	UZZ40..ARL,EUR	12/2003 - 08/2005	1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-24020	UZZ40	05/2001 - 12/2003	1
68172-24021	UZZ40..ARL,EUR	12/2003 - 08/2005	1
Common parts
90151-60016
90159-40223
90159-60401
90164-40105
90168-40061
90189-04186
90269-03062
90467-09177
90467-09203
90468-05106
90901-89001
Linked diagrams
6703
7401
8401

ILLUST NO. 3 OF 3(0105-0508)

Click highlighted areas on diagram

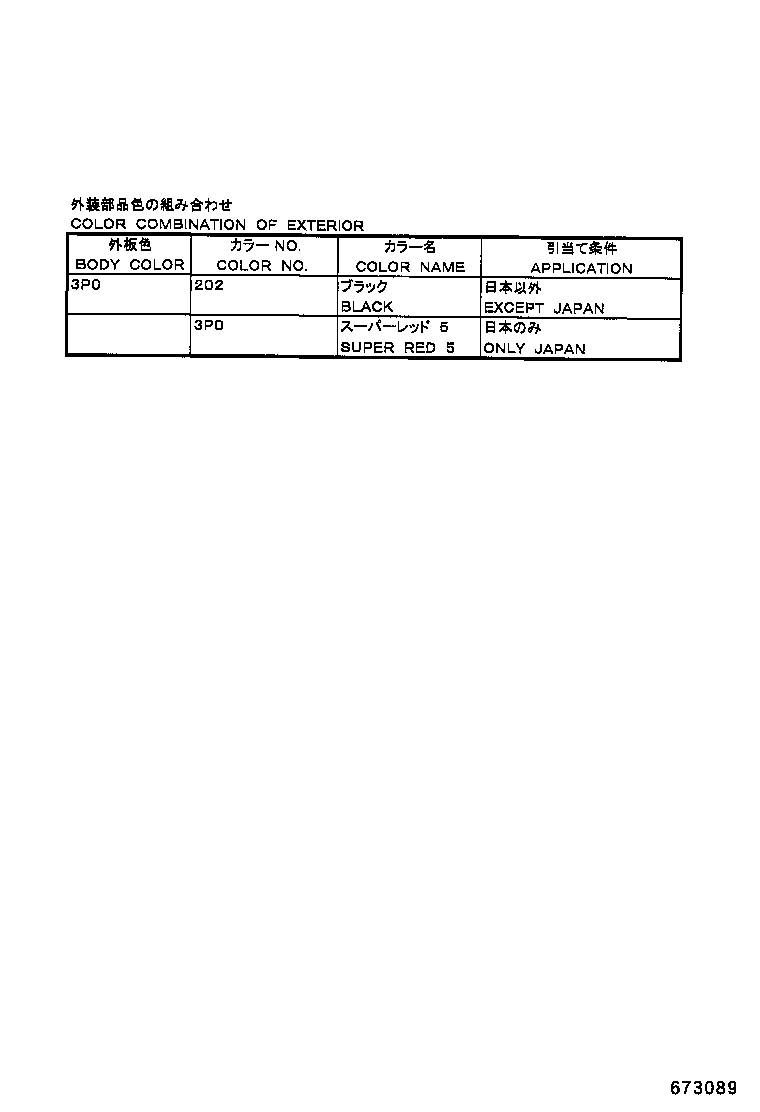

TRIM CODE

Part #	Description	Period	Qty	Price

UZZ40R-DKAQKQ (2001)

ILLUST NO. 1 OF 3(0105- )

ILLUST NO. 2 OF 3(0105- )

ILLUST NO. 3 OF 3(0105-0508)

Part Price Details
