UZZ40R-DKAQKQ (2001)
Toyota Lexus Sc430
Production
May 2001
-
Aug 2005
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(0105- )
Click highlighted areas on diagram
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 58136-30040 | ||||
| 90950-01478 | ||||
| 90950-01668 | ||||
| 90950-01759 | ||||
| 90950-01762 | ||||
| 90950-01763 | ||||
| 90950-01808 | ||||
| 90950-01841 | ||||
| 90950-01864 | ||||
| 90950-01919 | ||||
| 90950-01959 | ||||
| 90950-01960 | ||||

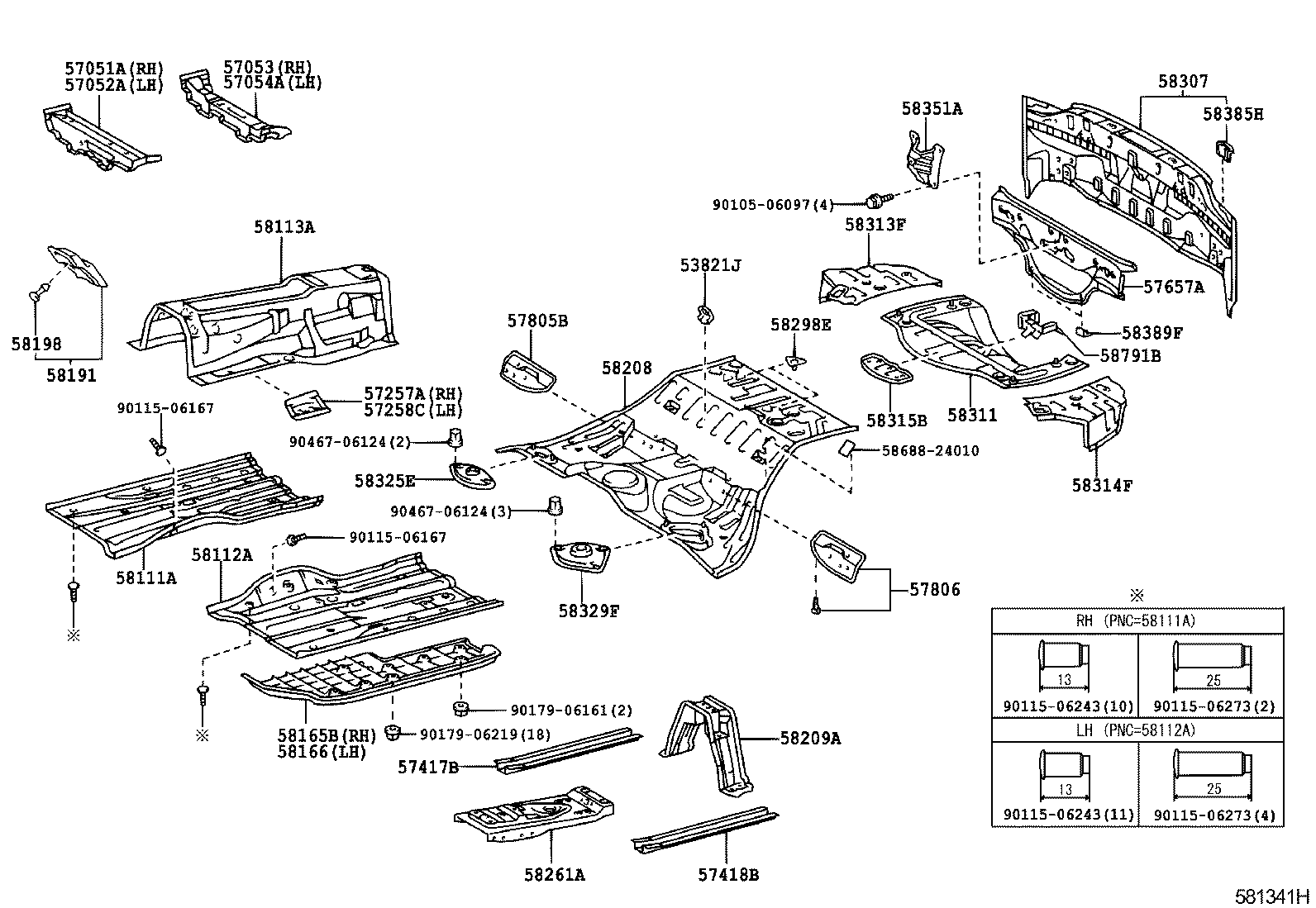

ILLUST NO. 1 OF 2(0105-0508)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821J - BRACKET, CENTER FLOOR PAN | ||||
| 53821-16010 |
UZZ40 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-24010 |
UZZ40 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-24010 |
UZZ40 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-24010 |
UZZ40 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-24010 |
UZZ40 |
1 | ||
| 57257A - BRACKET, ENGINE REAR MOUNTING MEMBER, RH | ||||
| 57257-30030 |
UZZ40 |
1 | ||
| 57258C - BRACKET, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57258-30070 |
UZZ40 |
1 | ||
| 57417B - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-24030 |
UZZ40 |
1 | ||
| 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-24030 |
UZZ40 |
1 | ||
| 57657A - BRACKET, EXHAUST PIPE MOUNTING, NO.2 | ||||
| 57657-24010 |
UZZ40 |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-24020 |
UZZ40 |
1 | ||
| 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-24900 |
UZZ40 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-24901 |
UZZ40 |
1 | ||
| 58111-24900 |
UZZ40 |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-24903 |
UZZ40 |
1 | ||
| 58112-24902 |
UZZ40 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-24050 |
UZZ40..RHD |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-24020 |
UZZ40 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-24010 |
UZZ40 |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-30070 |
UZZ40..RHD |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-33010 |
UZZ40..RHD |
2 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-24060 |
UZZ40 |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58209-24020 |
UZZ40 |
1 | ||
| 58261A - COVER, TRANSMISSION | ||||
| 58261-24050 |
UZZ40..RHD |
1 | ||
| 58298E - BRACKET, HOT AIR INTAKE, NO.1 | ||||
| 58298-30021 |
UZZ40 |
3 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-24060 |
UZZ40 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-24050 |
UZZ40 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-24040 |
UZZ40 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-24040 |
UZZ40 |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-24020 |
UZZ40 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-30010 |
UZZ40 |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-30020 |
UZZ40 |
1 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 51938-24010 |
UZZ40 |
1 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58385-53010 |
UZZ40 |
2 | ||
| 58389F - BRACKET, LOWER BACK COVER | ||||
| 58389-30020 |
UZZ40 |
2 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-30030 |
UZZ40 |
1 | ||
| Common parts | ||||
| 58688-24010 | ||||
| 90105-06097 | ||||
| 90115-06167 | ||||
| 90115-06243 | ||||
| 90115-06273 | ||||
| 90179-06161 | ||||
| 90179-06219 | ||||
| 90467-06124 | ||||
